LED Strip 24V | 238xLED/m | 5m | SMD2835 | 16000Lm | 20W/M | IP20
SP238D20W-90869-UND-27K
PROFESSIONAL LED strip 20W per metre, 24V with a length of 5 metres. It is designed for indoor installation, as well as being perfect for decorating different spaces. It requires a power supply and it is advisable to install it on an aluminium profile to achieve good heat dissipation.
-
20w
-
24V DC
-
80
-
1M: 3200Lm
-
120º
-
160 Lm/w
-
IP20
-
100.000
-
5m x 10mm
Fast and secure delivery
We offer professional prices for LED lighting
€24.59
No tax
24.59 EUR /Unidad

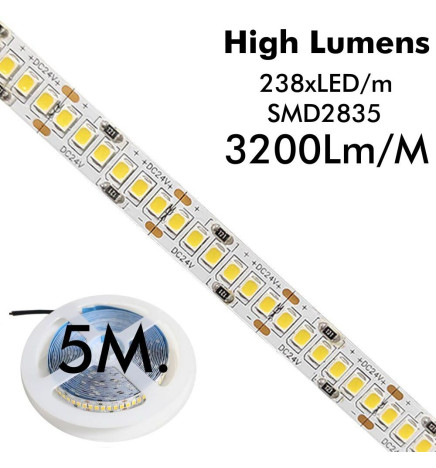

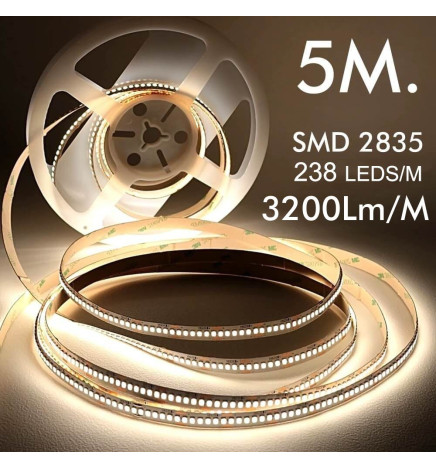

LED PROFESSIONAL Strip 24V | 238xLED/m | 5m | SMD2835 | 3200Lm | 20W/M | IP20

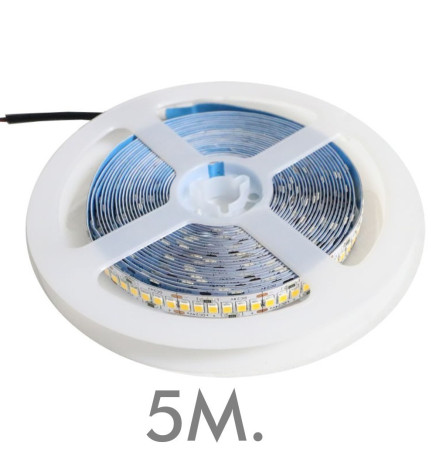

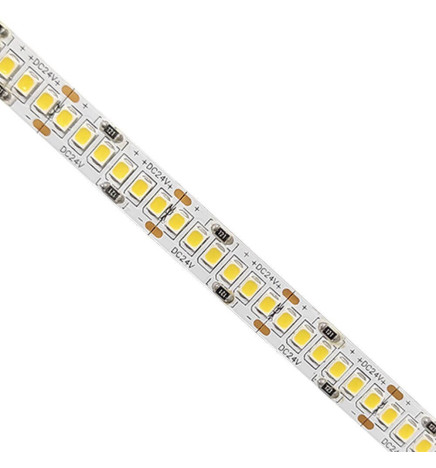

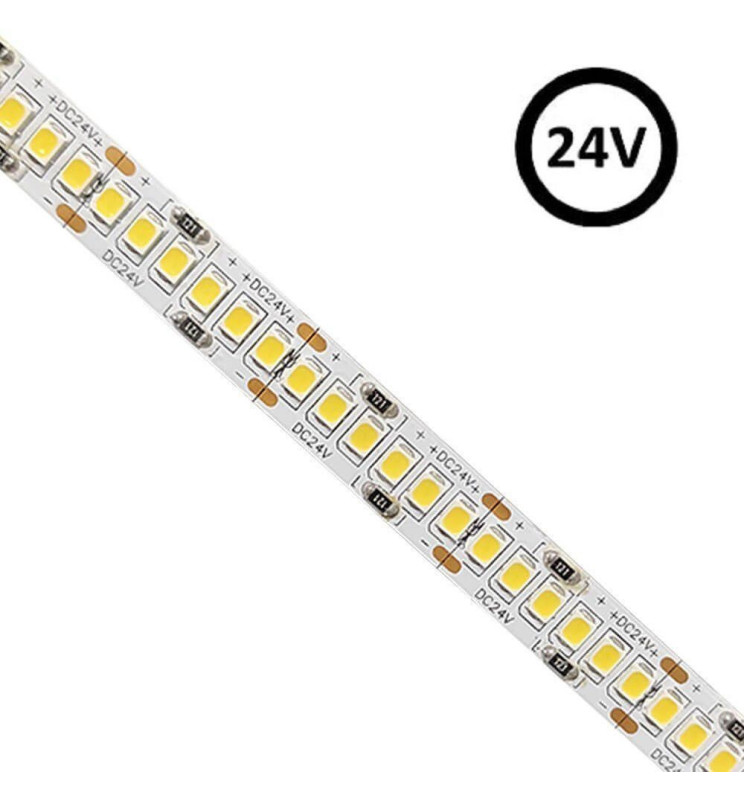

This 24V DC 238LED / m IP20 LED Strip has a length of 5 meters and integrates 238 highly efficient SMD2835 technology LEDs that only consume 20 watts per meter. The bright and colorful light it emits is spread out at an angle of 120º.
Our LED strip is self-adhesive for easy installation. The LED strip requires a constant current (DC) direct current power supply to power it. The LED strips can be dimmed

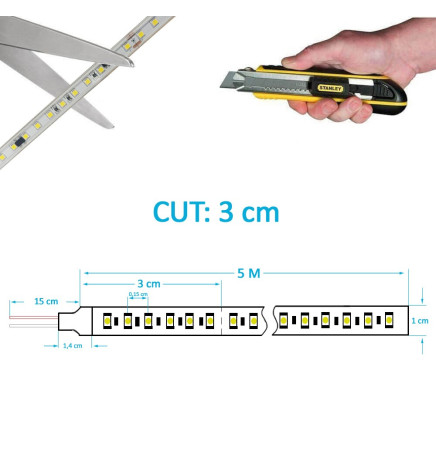

The LED strip can be cut and joined by the spaces indicated in it (union copper area), always following the relevant instructions, (be careful that the welder maintains a brief contact with the strip when welding it, since excessive heat will damage the conductor).
It is recommended that any type of installation of this type does not exceed 10 meters to avoid voltage drops of the direct current that powers the LED strips, although you also have the option of feeding the strip from both ends, a more recommended option if you go place 20 continuous meters. For the installation of more continuous meters, you will need the installation of signal amplifiers for the LED strip.
In its placement, to increase the useful life of the LED strip, it is advisable to use the double-sided heat dissipating tape, as well as to place it on an aluminum profile, for a correct management of the heat of the LED strip itself.
You can find on our website both signal amplifiers, such as dissipative tape, connection accessories, 12-24v power supplies, as well as aluminum profiles.

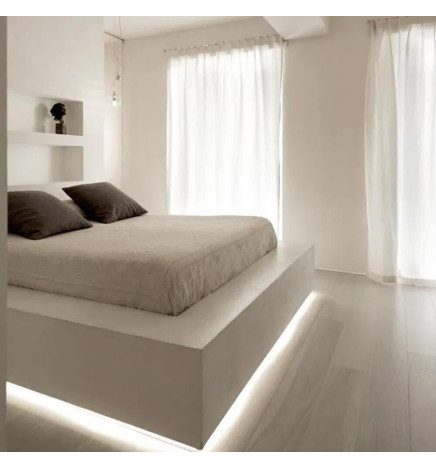

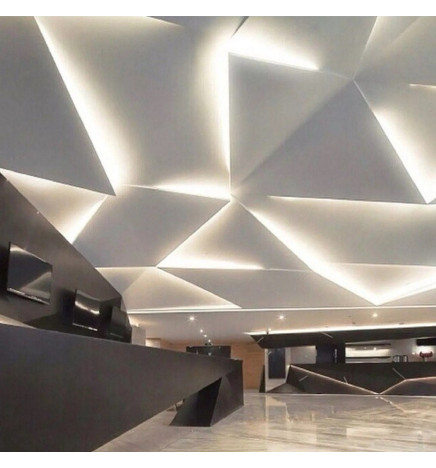

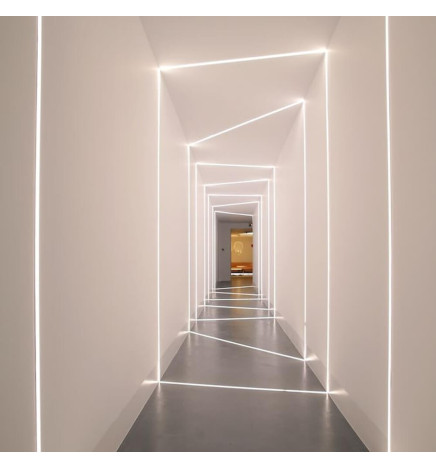

The LED strips are ideal to illuminate any type of corner or element of your business and your home, thanks to its flexibility. It can be said that one of its main advantages is the great versatility of uses that it can be given, since they can be installed in any area and adapt to any corner, and thus be placed in any position, due to its adaptable linear design.
Uses of LED PROFESSIONAL Strip 24V | 238xLED/m | 5m | SMD2835 | 3200Lm | 20W/M | IP20
- In libraries
- Bar
- Home
- Restaurants
- Roofs
At FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.
SP238D20W-90869-UND-27K
Data sheet
- SP238D20W
- 20w
- 24V DC
- 2300K - 2700K - 4000K - 5700K
- 80
- PCB
- 1M: 3200Lm - 5M: 16000Lm
- 238 LEDs/M - SMD2835
- 120º
- 160 Lm/w
- 160 Lm/w
- YES
- CE - ROHS
- IP20
- 100.000
- 5m x 10mm
- 50/60Hz
- -20°C ~ +55°C
- 100.000
- A+
- 3
REFERENCE
Colour
Construction Material
Number & Type of LEDs
Luminous diodo LED (Lm/W)
Dimmable
Certifications
Frequency (Hz)
Temperature Range (ºC)
On/Off Cycles
Energy Rating (2021-UE-2019/2015)
Warranty YearsYou might also like
-
