LED Strip 220V | 120xLED/m | 20m | SMD2835 | 1450Lm/M | 14W/M | IP67 | Cut every 10cm
  • LED Strip 220V | 120xLED/m | 20m | SMD2835 | 1450Lm/M | 14W/M | IP67 | Cut every 10cm
  • LED Strip 220V | 120xLED/m | 20m | SMD2835 | 1450Lm/M | 14W/M | IP67 | Corte cada 10cm
  • LED Strip 220V | 120xLED/m | 20m | SMD2835 | 1450Lm/M | 14W/M | IP67 | Corte cada 10cm

LED Strip 220V | 120xLED/m | 20m | SMD2835 | 1450Lm/M | 14W/M | IP67 | Cut every 10cm

SP120D14W-91832-23K

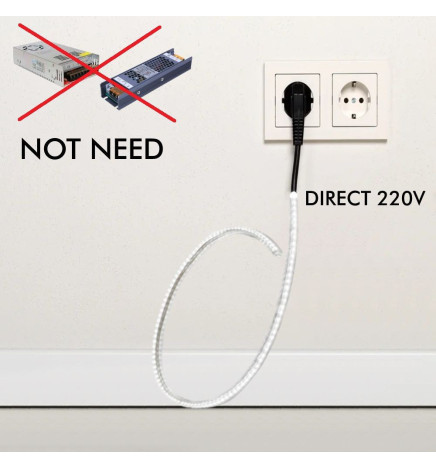

PROFESSIONAL LED strip 14W per metre, 220V with a length of 20 metres. It is designed for indoor installation, as well as being perfect for decorating different spaces. It does NOT requires a power supply and it is advisable to install it on an aluminium profile to achieve good heat dissipation. Can be cut every 10cm

120 Leds/meter SMD2835 CHIP high power.

  • Rated Power

    14W

  • Nominal Voltage

    220-240 V

  • CRI - Chromatic Rendiment Index

    82

  • Luminosity-Lm

    1M: 1540Lm

  • Beam Angle (º)

    120º

  • Luminous Efficiency (Lm/W)

    135 Lm/W

  • IP

    IP67-Outdo

  • Diode Life Expectancy (H)

    100.000

  • Dimensions (mm)

    L20m x 10m

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€69.50
No tax
Color temperature: White Warm-2300K
  • White Warm-2300K
  • Warm White - 2700K
  • Natural White - 4000K
  • 5700K - Cold White



Download PDF

LED Strip 220V | 120xLED/m | 20m | SMD2835 | 1450Lm/M | 14W/M | IP67 | Cut every 10cm

This 220V DC 120LED/m IP67 LED strip light has a length of 20 meters and integrates 120 high efficiency SMD2835 technology LEDs that consume only 14w per meter. The bright and colorful light it emits is spread at an angle of 120°.

Our LED strip is self-adhesive for easy installation. The intensity of LED strip is dimmable.

This SMD2835 LED strip has 120 chips per meter, and its CRI >82 makes the colors look very real. This makes this LED strip perfect for illuminating spaces where we want the colors to look perfect.

The LED strip can be cut and joined by the spaces indicated on it (copper junction area), always following the relevant instructions (be careful that the soldering iron keeps a brief contact with the strip when soldering, since excessive heat would damage the conductor).

In its placement, to increase the life of the LED strip, it is advisable to use the double-sided heat sink tape, as well as place it on aluminum profile, for proper heat management of the LED strip itself.

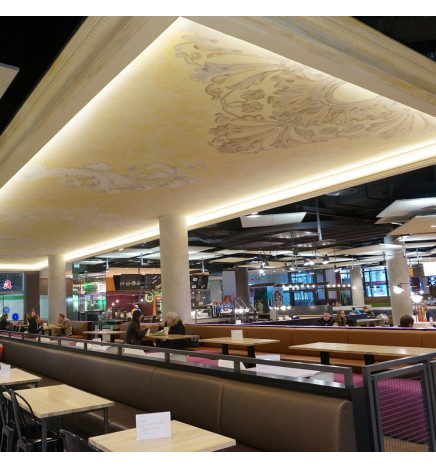

LED strips are ideal for lighting any kind of corner or element of your business and home, thanks to their flexibility. It can be said that one of its main advantages is the great versatility of uses that can be given, since they can be installed in any area and adapt to any corner, and thus be placed in any position, for its adaptable linear design.

Uses of LED Strip 220V | 120xLED/m | 20m | SMD2835 | 1450Lm/M | 14W/M | IP67 | Corte cada 10cm

  • In libraries
  • Bar
  • Home
  • Restaurants
  • Roofs

At FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

SP120D14W-91832-23K

Data sheet

REFERENCE
SP120D14W
Rated Power
14W
Nominal Voltage
220-240 V AC
Colour
2300K - 2700K - 4000K - 6000K
CRI - Chromatic Rendiment Index
82
Construction Material
Silicone
Luminosity-Lm
1M: 1540Lm -10M: 15400 Lm - 20M: 30800Lm
Number & Type of LEDs
140 LEDs/M - SMD2835 BRIDGELUX CHIP
Beam Angle (º)
120º
Luminous diodo LED (Lm/W)
155 Lm/W
Luminous Efficiency (Lm/W)
135 Lm/W
Dimmable
TRIAC
Certifications
CE - ROHS
IP
IP67-Outdoor
Diode Life Expectancy (H)
100.000
Dimensions (mm)
L20m x 10mm x H4,2mm
Power Factor (PF)
0,91
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Energy Rating (2021-UE-2019/2015)
A+
Energy Rating (2023 - UE-2019/2015)
F
Warranty Years
3
