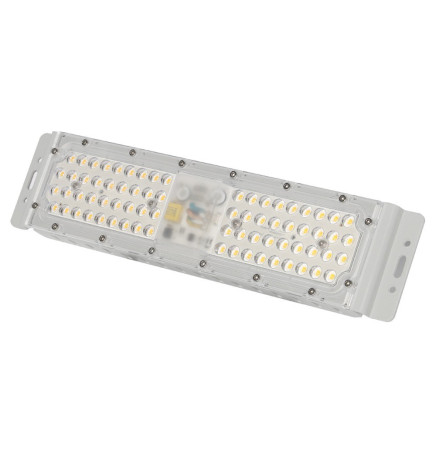

50W LED Floodlight DOB MAGNUM OSRAM SMD3030-3D 180Lm/W 60º Chip

4844MG50W60DOBC2

The 50W DOB MAGNUM LED Floodlight is a mixture of great power with a compact design in 100% ALUMINIUM 6063 oven-painted to avoid salt oxidation, and great LIGHTNESS to avoid placing large posts. 60º ANGLE. The product is supplied pre-assembled. It has an LED Diode with OSRAM 3030 Chip.

ASSEMBLY

  • Rated Power

    50w

  • Nominal Voltage

    175-265V

  • CRI - Chromatic Rendiment Index

    84

  • Luminosity-Lm

    7000

  • Beam Angle (º)

    60º

  • Luminous Efficiency (Lm/W)

    140Lm/W

  • IP

    IP65-Outdo

  • Diode Life Expectancy (H)

    50.000

  • Dimensions (mm)

    305x75x80m

Brightness calculation
Fast and secure delivery
We offer professional prices for LED lighting

Certificado CE Certificado ROHS
€30.22
No tax
Color temperature: Natural White - 4000K
  • Natural White - 4000K
  • Cold White - 5000k
There are not enough products in stock




Download PDF

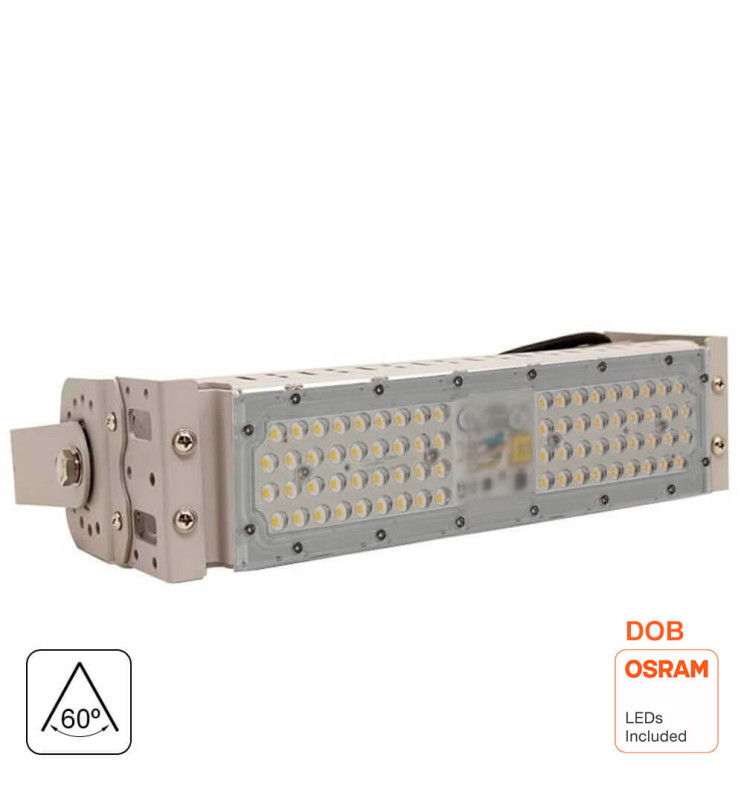

LED Floodlight 50W OSRAM CHIP - DOB - MAGNUM AIR Aluminium 60º SMD 3030-3D


The specifications of this type of 50W LED Floodlight make it a focus capable of effectively illuminating any type of space.

The model DOB (Driver On Board) MAGNUM AIR stands out for its type of chip OSRAM 3030-3D that reaches a high flow of color of a high power, provides the efficiency and the reliability that demands any type of market of illumination of interior or exterior.

It is designed to obtain a great illumination creating perfect atmospheres specially to illuminate to average distances graias to its angle of 60º, with this one a high efficiency is obtained with its diode of triple nucleus.

Its manufacture has been elaborated with 100% Aluminium, both in its casing and in its handles, making it a very light product to facilitate its transport and installation at great height. In addition its painting is anticorrosive, reason why it has a great duration and reduces all type of oxidation.

With all its LED technology and the latest market developments achieves savings of up to 80% in energy consumption.

Applications of the LED Floodlight 50W DOB MAGNUM OSRAM SMD3030-3D Chip


    Gardens
    Parks
    Squares
    Roundabouts
    Museums
    Roads
    Galleries
    Spaces for events ...

This projector is guaranteed for 5 years.

Enjoy the latest qualities and the best component of the brand Lumileds. In FactorLED we assure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical sheet of each LED product.

4844MG50W60DOBC2

Data sheet

REFERENCE
4844MG50W60DOB
Rated Power
50w
Nominal Voltage
175-265V
Colour
4000K -5000K

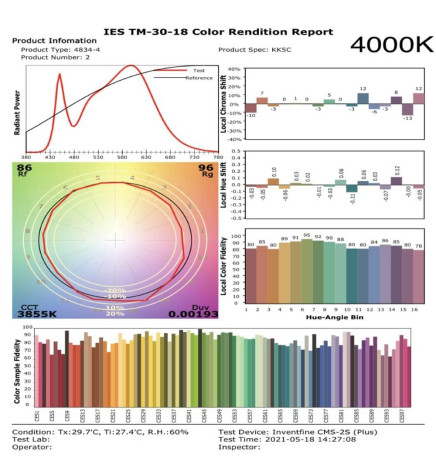

CRI - Chromatic Rendiment Index
84
Construction Material
Aluminium +PMMA
Luminosity-Lm
7000
Number & Type of LEDs

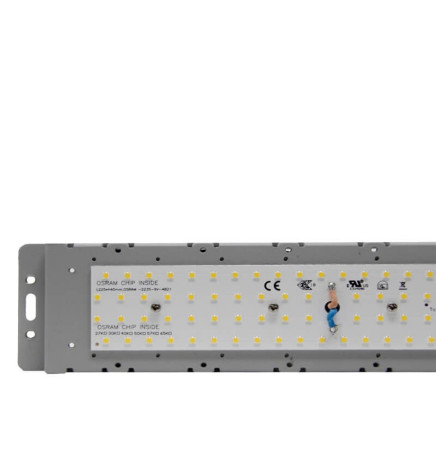

72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º)
60º
Luminous diodo LED (Lm/W)
180 Lm/W
Luminous Efficiency (Lm/W)
140Lm/W
Certifications
CE - ROHS
IP
IP65-Outdoor
Diode Life Expectancy (H)
50.000

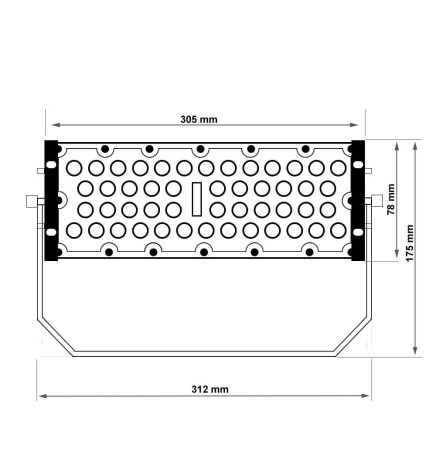

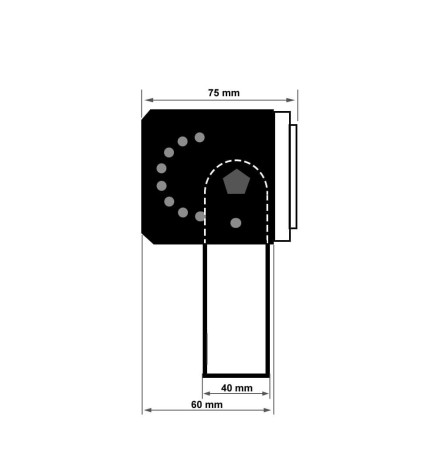

Dimensions (mm)
305x75x80mm
Power Factor (PF)
0,91
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
THIS PRODUCT IS DELIVERED DISASSEMBLED
Impact Protection (IK)
IK10
Driver included
DOB GXTRONIC ELECTRIC
Energy Rating (2021-UE-2019/2015)
A++
Warranty Years
5
