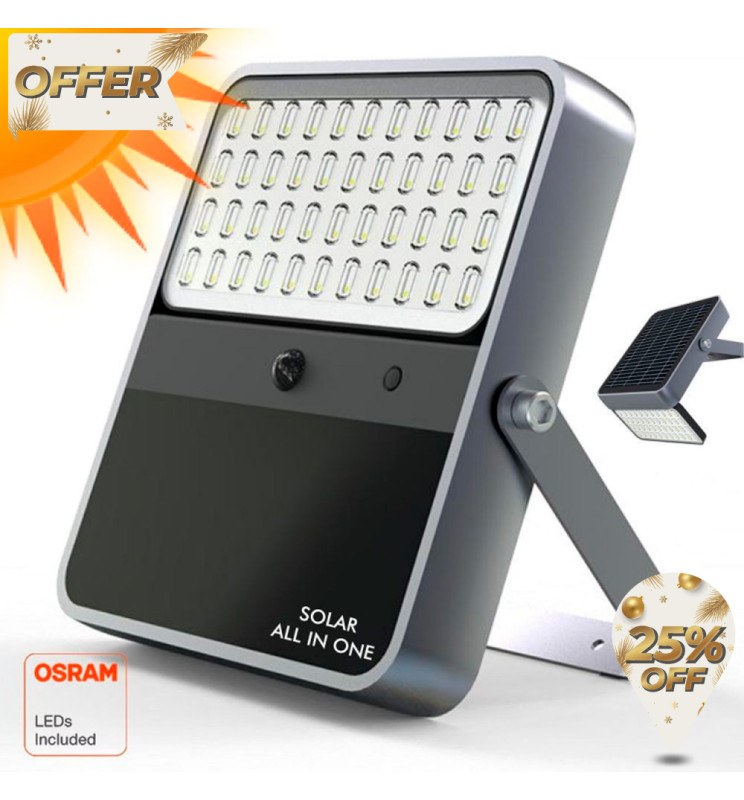

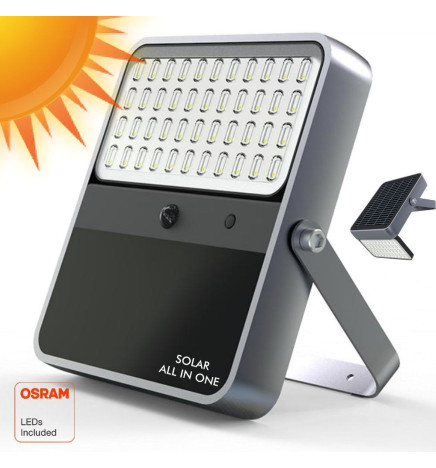

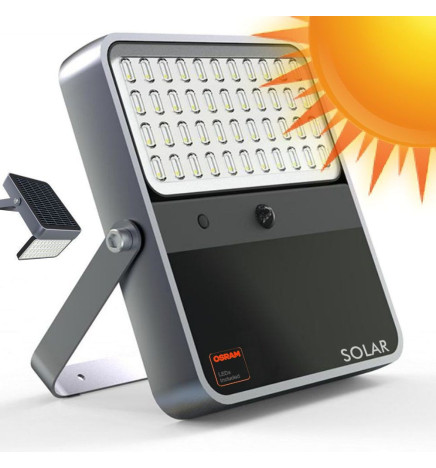

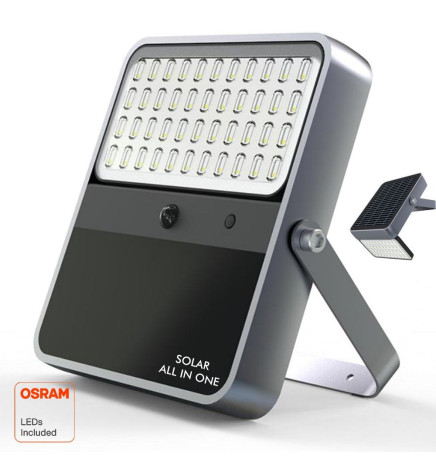

100W SOLAR LED Outdoor Floodlight - 5700K - ALL IN ONE

90861

This Professional LED Solar Spotlight 100W ALL IN ONE, has adjustable angle to suit your needs. Panel with integrated battery. Manufactured with OSRAM chips.

The Solar Outdoor Floodlight does not need to be connected to the mains, its installation and operation is very simple, so that during daylight hours the panel is powered and charges the battery integrated in the spotlight. It includes a programmable control panel.

Start saving now!

  • Rated Power

    100w Chip

  • Nominal Voltage

    DC 3.7V -

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    3600

  • Beam Angle (º)

    Adjustable

  • IP

    IP65-Outdo

Brightness calculation
Fast and secure delivery
We offer professional prices for LED lighting

Certificado CE Certificado ROHS
€79.26
No tax



Download PDF

100W SOLAR LED Outdoor Floodlight - ALL IN ONE - 5700K

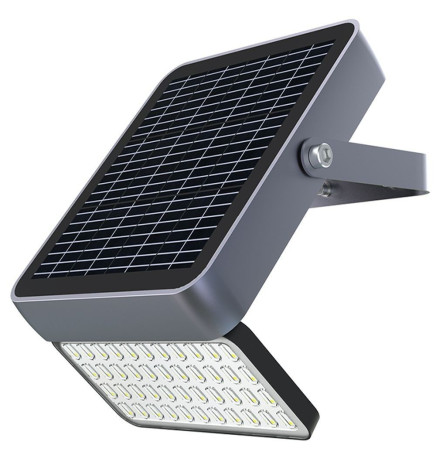

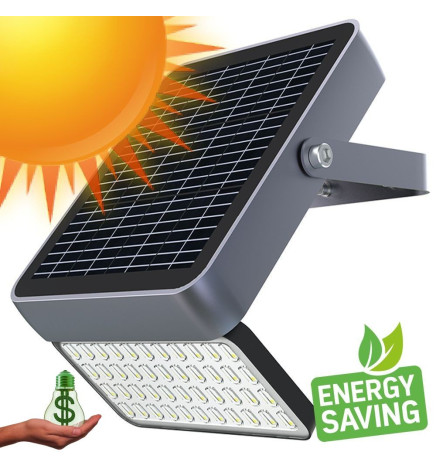

Solar LED Floodlight ALL IN ONE - 100W CHIP OSRAM - with cool white light 5700k, without the need of electric current, totally autonomous with polycrystalline solar panel.

The solar LED projector has a remote control for programming. Its battery is made of lithium with high capacity and durability.

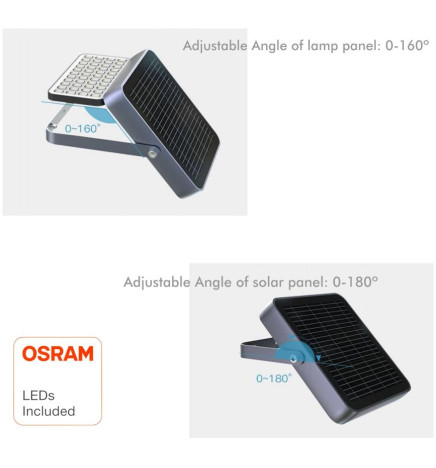

One of its main features is its adjustable angle, with which you can illuminate different areas according to the degree of illumination.

In addition, it has a motion sensor that has the ability to capture the slightest presence of any individual.

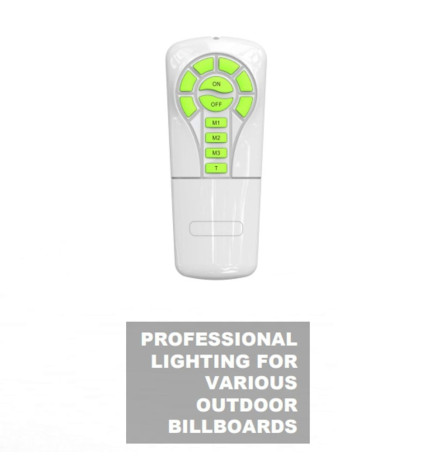

Easy operation of the remote control:

INDICATOR WITH RED LED ILLUMINATION:

  • M1: Flashes once.
  • M2: Flashes twice.
  • M3: Flashes three times.
  • T: Flashes four times

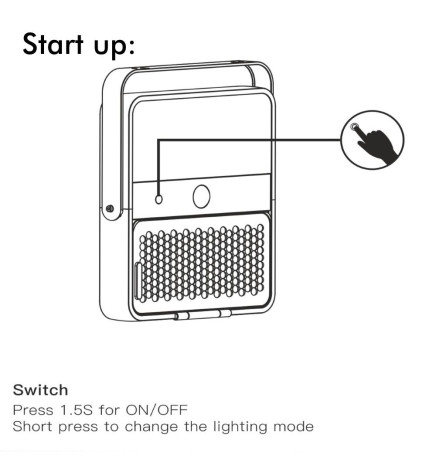

LIGHTING MODE:

  • M1: Brightness of the LED luminaire at 100% for 5 hours, then drops to 20% brightness until dawn.
  • M2: LED luminaire brightness at 60% brightness from start until dawn.
  • M3: LED luminaire brightness at 20%, sensor detects movement and increases brightness to 100%.
  • T: Brightness of the LED luminaire at 100% for 2 hours, then returns to the previously recorded programming (M1-M2-M3).

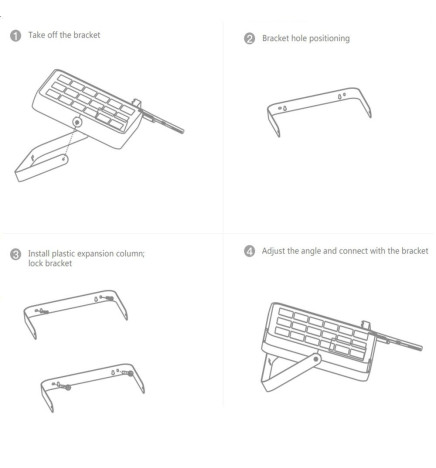

Installation is recommended in areas where the location allows the highest possible number of hours of sunlight for the correct performance of the solar LED luminaire.

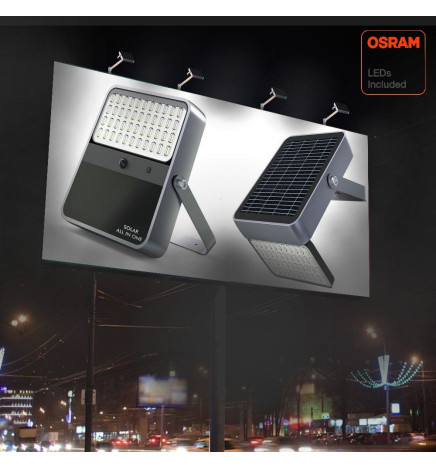

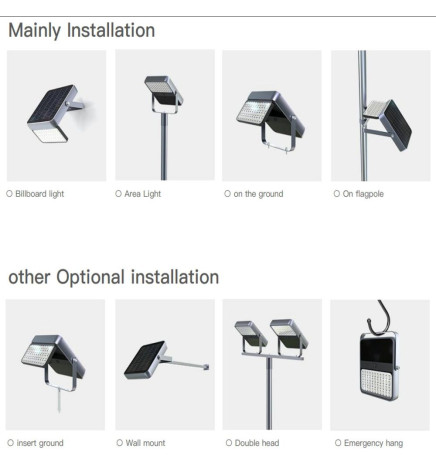

Uses of the SOLAR LED 100W ALL IN ONE outdoor floodlight:

  • Gardens
  • Parks
  • Squares
  • Roundabouts
  • Fields
  • Paths

Due to its reliability, power and durability, it can be used in all types of outdoor installations. It offers a high quality lighting.


In FactorLED we ensure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

90861

Data sheet

REFERENCE
90861
Rated Power
100w Chip
Nominal Voltage
DC 3.7V - 10000mAH
Colour
5700K
CRI - Chromatic Rendiment Index
80
Construction Material
Aluminiun+Glass
Luminosity-Lm
3600
Number & Type of LEDs

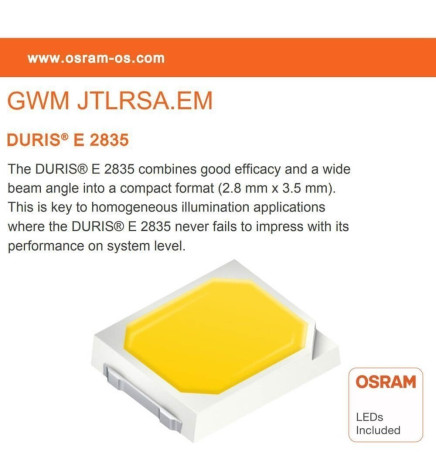

SMD 2835 OSRAM CHIP
Beam Angle (º)
Adjustable Angle: 60º - 90º - 120º
Luminous diodo LED (Lm/W)
190Lm/W
Dimmable
YES
Certifications
CE - ROHS
IP
IP65-Outdoor

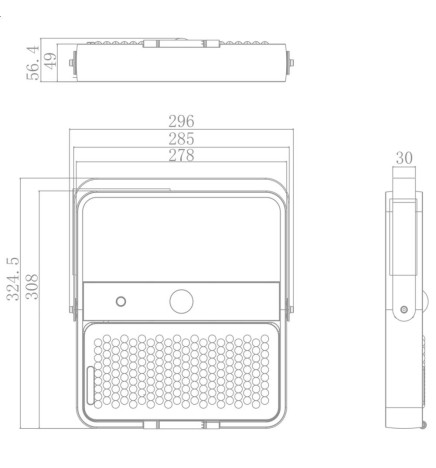

Dimensions (mm)
Temperature Range (ºC)
-10ºC ~ +45ºC
Other Information
Panel 7w Polycristaline
Material of the Battery

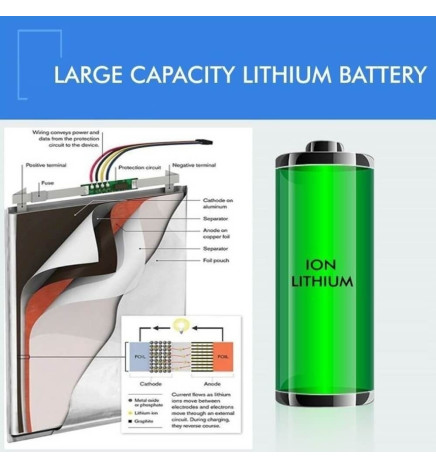

LiFePO4 - Litio-Ferrofosfato -LPF - Battery 10Ah - (10000mAH). Charge&Discharge: 2500 Times
Download Time
13H
Control modes
CONTROL + INFRARED
Energy Rating (2021-UE-2019/2015)
A++
Energy Rating (2023 - UE-2019/2015)
A
Warranty Years
3
Time-Delay
M1: 100% (5H)+20% Till dawn -M2: 60% Till dawn - M3: 20%+ PIR Till dawn - T : 100% (2H)+back to previous mode
