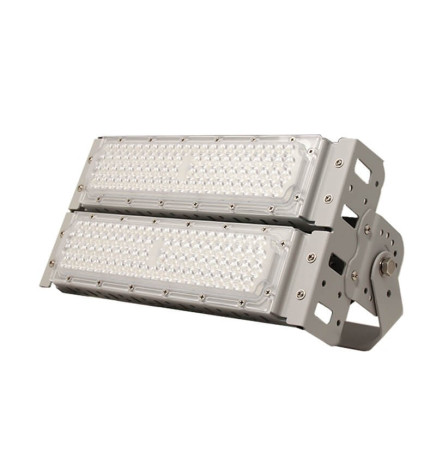

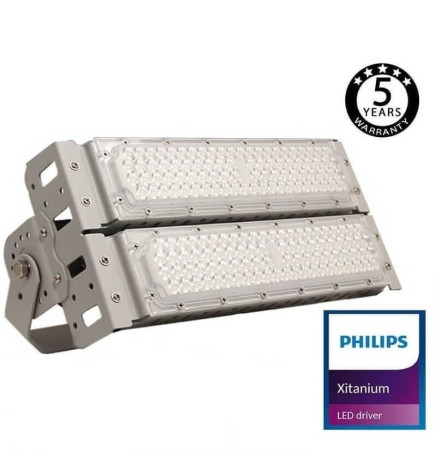

100W LED Floodlight MAGNUM AIR - Bridgelux Chip 180Lm/W 136ºx78º
MAGNUM100W136C1
The LED Floodlight 100w MAGNUM AIR is a mixture of a great power with great lightness to be manufactured 100% in aluminium 6063 (including the support), is painted in the oven to avoid saline oxidation, and very compact to avoid large clamping posts. Highlights its angle of 136ºx78º, designed to light up wide.
-
50w
-
85-265V
-
70
-
15000 Lm
-
136ºx78º
-
153 Lm/W
-
IP65-Outdo
-
50.000
-
305x155x80
Fast and secure delivery
We offer professional prices for LED lighting
€87.51
No tax
100W LED Floodlight MAGNUM AIR - Bridgelux Chip 180Lm/W 136ºx78º
The specifications of this type of 100w LED Spotlight make it a focus capable of effectively illuminating any type of space, the new model MAGNUM AIR stands out for its type of Bridgelux Chip chip that reaches a high color flux of high power, provides the efficiency and reliability required by any type of indoor or outdoor lighting market

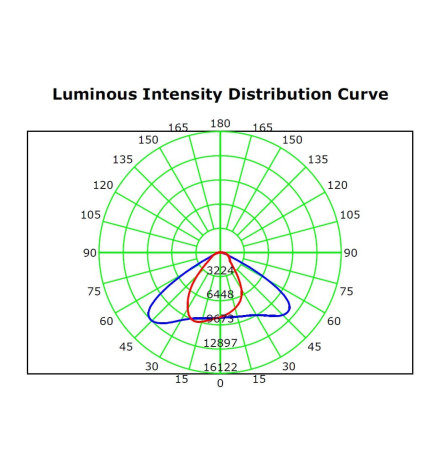

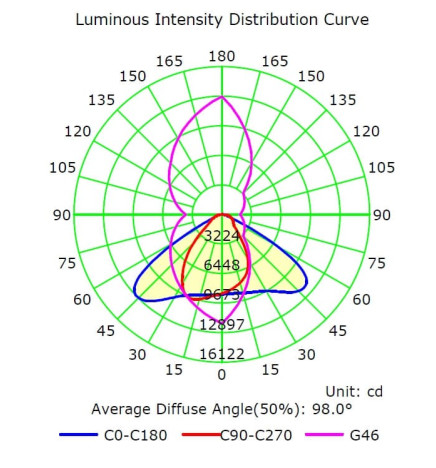

It is designed to obtain a great illumination creating perfect environments especially short distances and big spaces, thanks to its angle of 136º x 78º, with this one obtains an efficiency of the diode of 180Lm/w and a luminous yield of 150Lm/w, covering all the necessities of the final user.

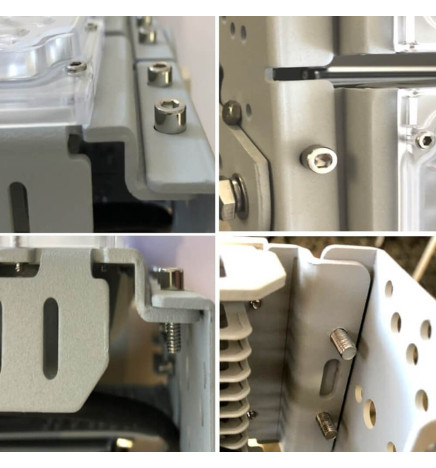

Its manufacture has been elaborated with 100% Aluminium, both in its casing and in its handles, making it a very light product to facilitate its transport and installation. In addition, its paint is anticorrosive, so it has a great duration and reduces all types of oxidation. With all its LED technology and the latest market developments achieves savings of up to 80% in energy consumption.
Applications of the 100W LED Floodlight MAGNUM AIR - Bridgelux Chip 180Lm/W 136ºx78º
- Gardens
- Parks
- Squares
- Roundabouts
- Museums
- Roads
- Galleries
- Spaces for events

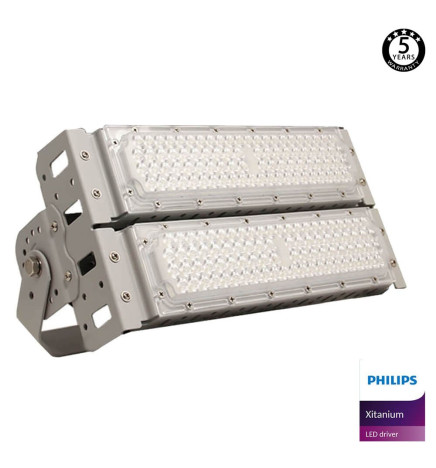

This projector has a warranty of 5 years
In FactorLED we assure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical sheet of each LED product.
MAGNUM100W136C1
Data sheet
- 4817MG100W136
- 50w
- 85-265V
- 4000K -5000K
- 70
- Aluminium +PMMA
- 15000 Lm

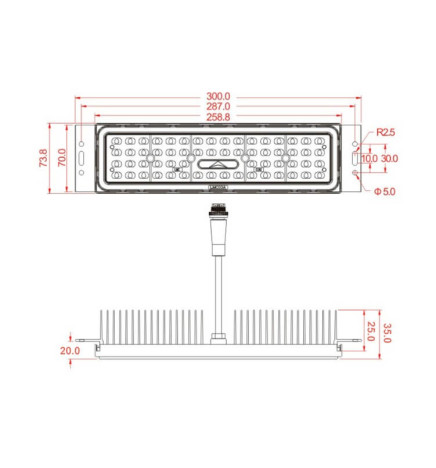

- SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30
- 136ºx78º
- 180Lm/w
- 153 Lm/W
- CE - ROHS
- IP65-Outdoor
- 50.000

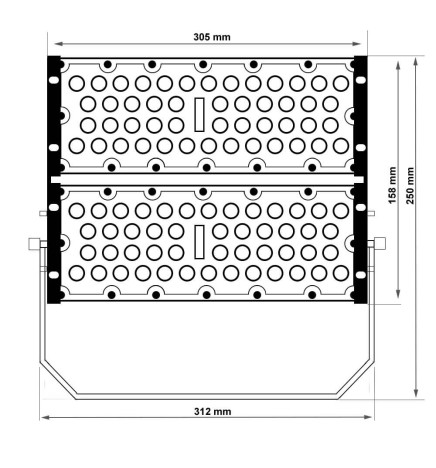

- 305x155x80mm
- 0.99
- 50/60Hz
- -20°C ~ +55°C
- 100.000
- 0,2s
- THIS PRODUCT IS DELIVERED DISASSEMBLED
- IK10

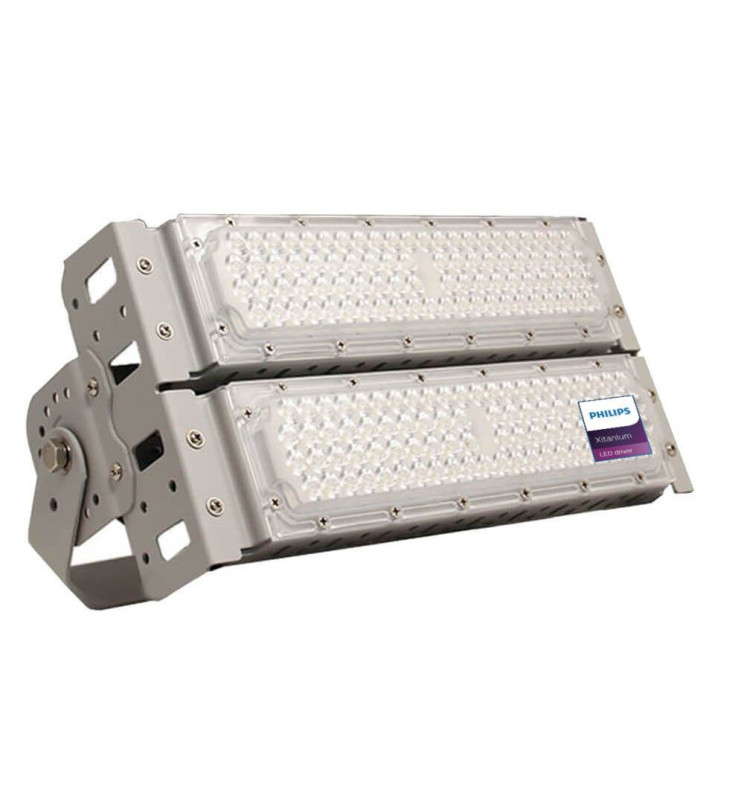

- PHILIPS XITANIUM 5 YEARS
- A++
- 5
REFERENCE
Colour
Construction Material
Number & Type of LEDs
Luminous diodo LED (Lm/W)
Certifications
Power Factor (PF)
Frequency (Hz)
Temperature Range (ºC)
On/Off Cycles
Starting Time (s)
Other Information
Impact Protection (IK)
Driver included
Energy Rating (2021-UE-2019/2015)
