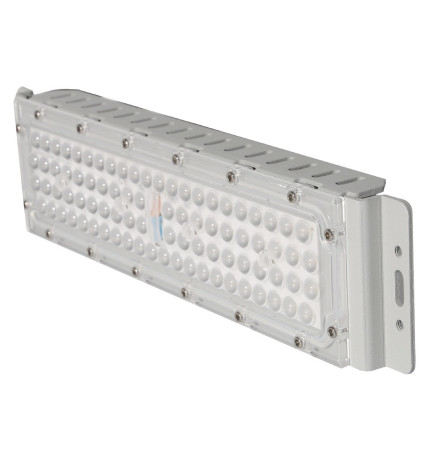

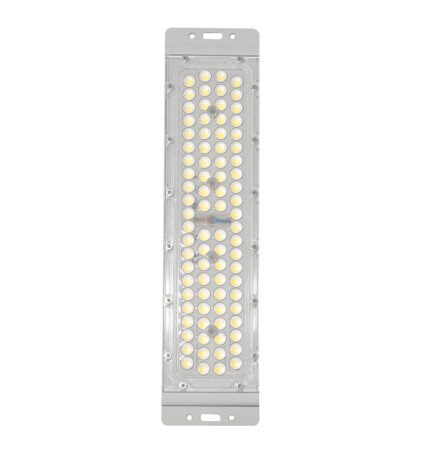

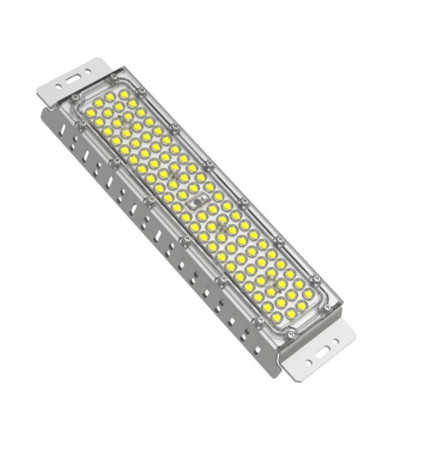

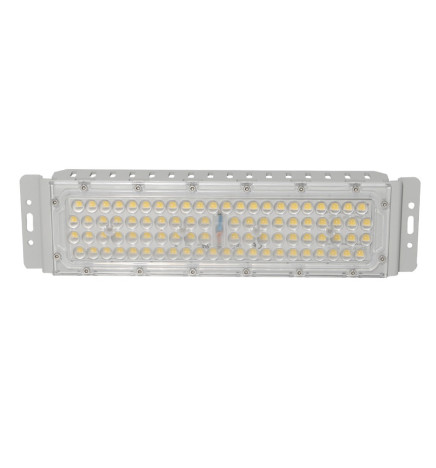

50W Module LED MAGNUM Chip Bridgelux 180Lm/W 25º

4816MG50WC2

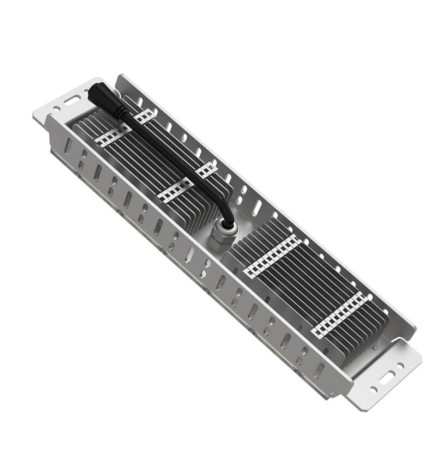

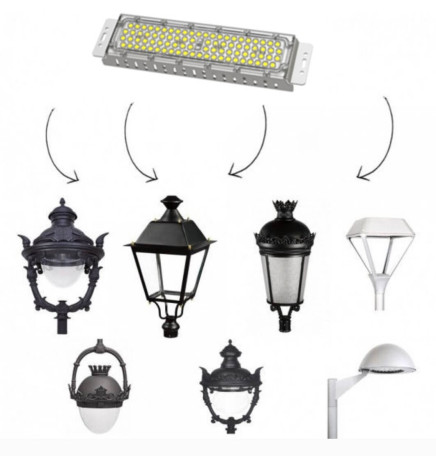

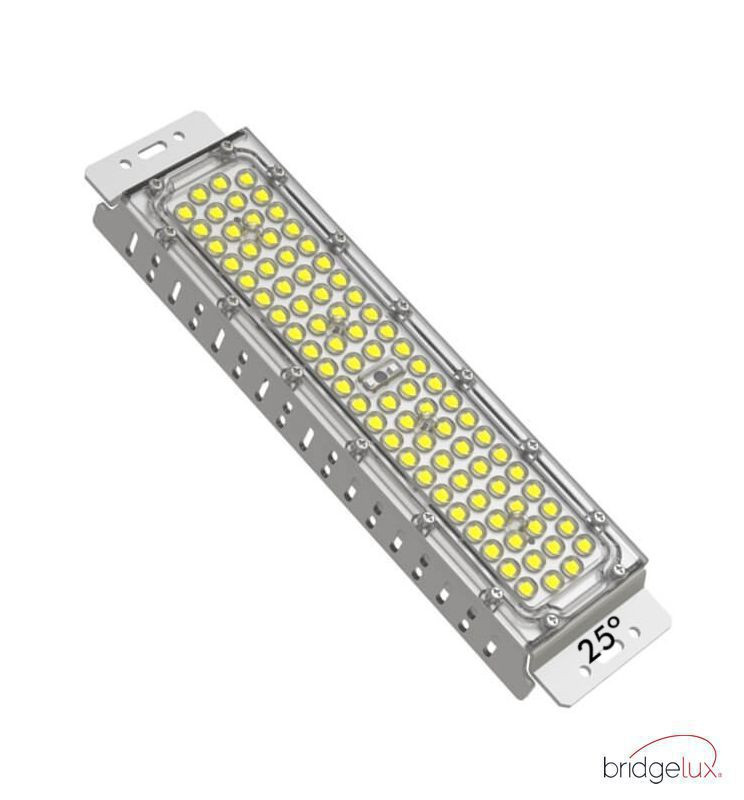

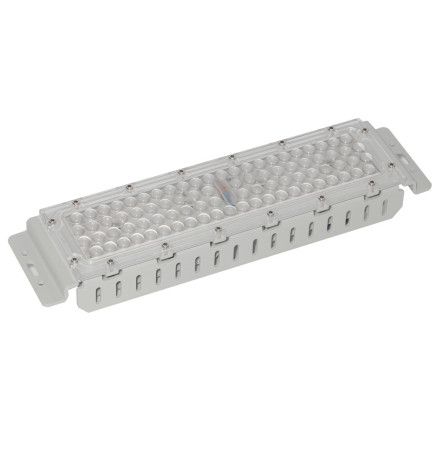

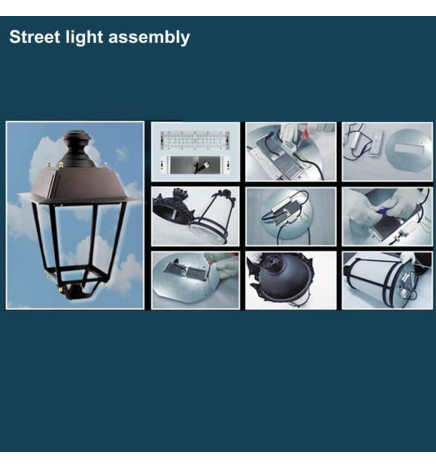

This LED Optical Module of 50W and 25º is manufactured with an equipment of 84 LEDs SMD 3030 3D.  This IP65 module is designed to be placed in Villas and Fernandinas lampposts. Thanks to its excellent dissipation it has a long useful life and a great energy saving, getting to be an ecological product.

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    7500 Lm

  • Beam Angle (º)

    25º

  • Luminous Efficiency (Lm/W)

    153 Lm/W

  • IP

    IP65-Outdo

  • Diode Life Expectancy (H)

    50.000

  • Dimensions (mm)

    300mm x 75

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€33.49
No tax
Color temperature: Natural White - 4000K
  • Natural White - 4000K
  • Cold White - 5000k
There are not enough products in stock




Download PDF

50W Module LED MAGNUM Chip Bridgelux 180Lm/W 25º

This LED Module serves as a replacement for the old bulbs that were very polluting.

Thanks to their power they manage to generate a great illumination in the lampposts, arriving at 7500 Lm.

The quality of its materials make it an essential product to generate a clean energy and extended in time.

This designed to obtain a great illumination creating perfect atmospheres especially to illuminate to great distances thanks to its angle of 25º.

Its IP65 protection makes it suitable for outdoors and splash-proof.

It comes with a 5-year warranty.

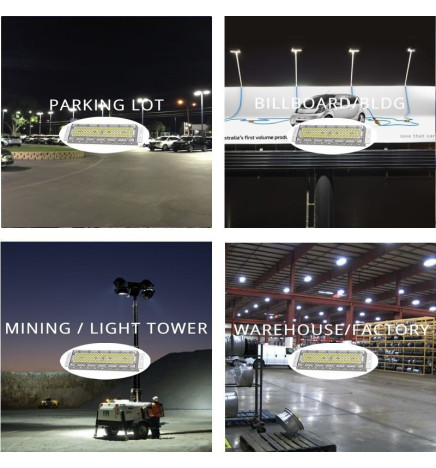

Uses of the 50W Module LED MAGNUM Chip Bridgelux 180Lm/W 25º

  • Lampposts

50W LED Module MAGNUM PHILIPS
At FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

4816MG50WC2

Data sheet

REFERENCE
MAGNUM50W25
Colour
3000K-4000K-5000K
CRI - Chromatic Rendiment Index
80
Construction Material
Aluminium +PMMA
Luminosity-Lm
7500 Lm
Number & Type of LEDs
SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30

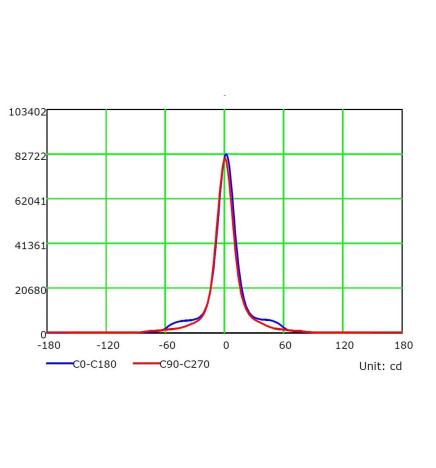

Beam Angle (º)
25º
Luminous diodo LED (Lm/W)
180 Lm/W
Luminous Efficiency (Lm/W)
153 Lm/W
Certifications
CE - ROHS
IP
IP65-Outdoor
Diode Life Expectancy (H)
50.000
Dimensions (mm)
300mm x 75mm x 30mm
Power Factor (PF)
0,95
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-15º+70º
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
Driver: 23-42 VDC 1300mA +-5%
Impact Protection (IK)
IK10
Driver included

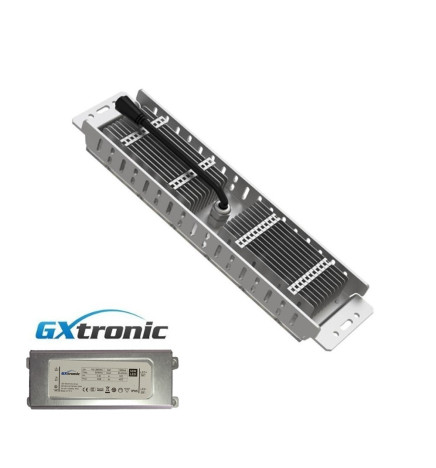

Driver GXTronic - 5 Years
Energy Rating (2021-UE-2019/2015)
A++
Warranty Years
5
