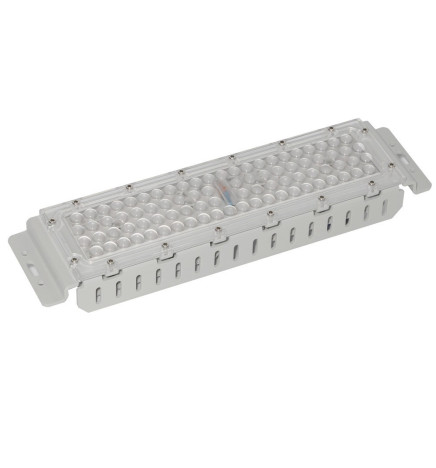

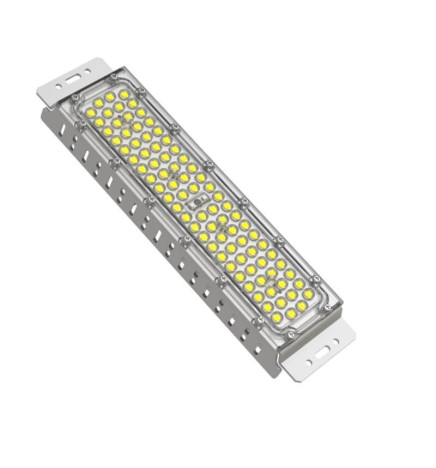

50W LED Module MAGNUM Bridgelux Chip 180Lm/W 136ºx78º

Reference: 4817MG50W136C2

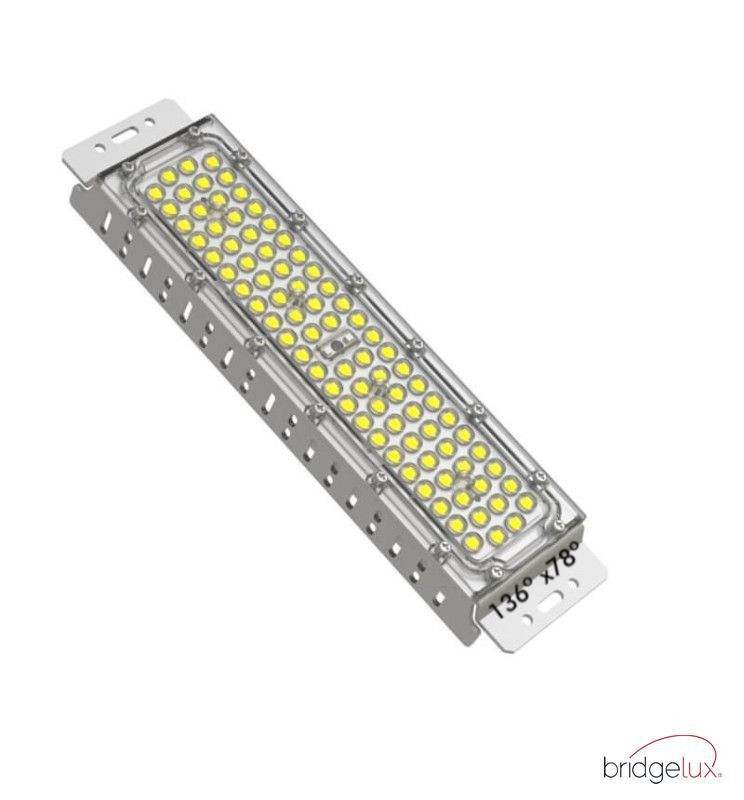

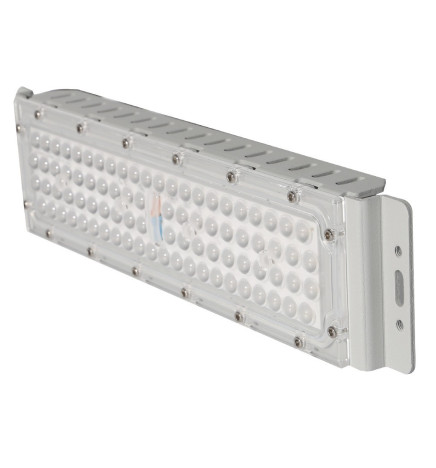

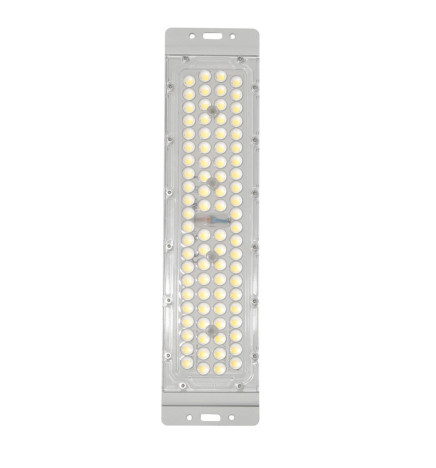

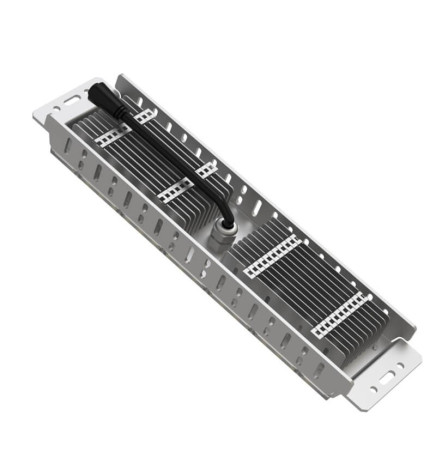

This LED Module Optical of 50W and 136º x 78º is manufactured with a team of 84 LED diodes SMD 3030 3D. This IP65 module is designed to be placed in Villas and Fernandinas streetlights. Thanks to its excellent dissipation it has a long useful life and a great energetic saving, being able to be an ecological product.

80
7500 Lm
136º x 78º
153 Lm/W
IP65-Outdo
50.000
300mm x 75

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€33.49

No tax

Color temperature: Natural White - 4000K

Natural White - 4000K
Cold White - 5000k

There are not enough products in stock

Download PDF

LED 50W LED Module MAGNUM Bridgelux Chip 180Lm/W 136ºx78º

This LED Module serves as a replacement for old bulbs that were very polluting.

Thanks to their power they manage to generate a great illumination in the streetlamps, reaching the 7500 Lm.

The quality of its materials make it an essential product to generate a clean and long-lasting energy.

It is designed to obtain a great illumination creating perfect atmospheres especially to illuminate in a wide way, thanks to its angle of 136º x 78º

Its IP65 protection makes it suitable for outdoor use and has a safety against splashes.

It has a 5 year warranty.

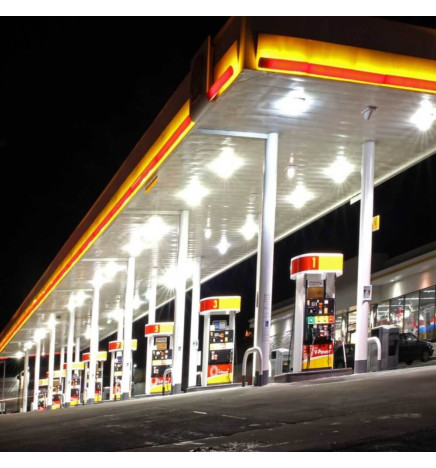

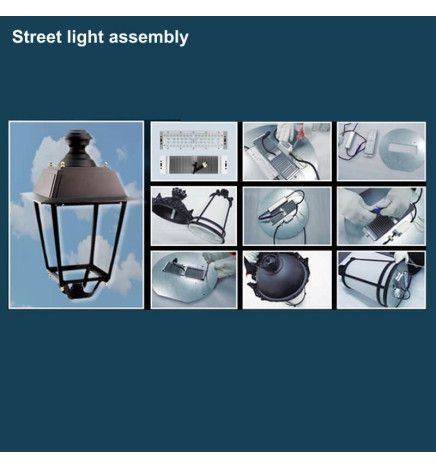

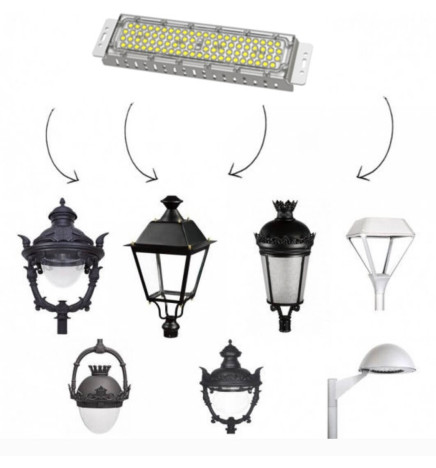

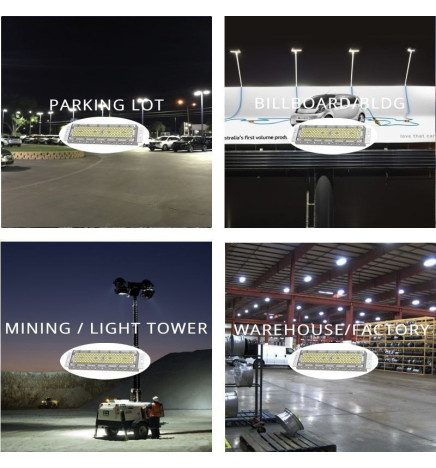

Uses of 50W LED Module MAGNUM Bridgelux Chip 180Lm/W 136ºx78º

Lampposts

LED Module 50W MAGNUM PHILIPS

In FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for the DISTRIBUTION, IMPORT or SALE wholesale, including the technical sheet of each LED product.

Reference 4817MG50W136C2

Data sheet

REFERENCE: MAGNUM50W136
Colour: 3000K-4000K-5000K
CRI - Chromatic Rendiment Index: 80
Construction Material: Aluminium +PMMA
Luminosity-Lm: 7500 Lm
Number & Type of LEDs: SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30

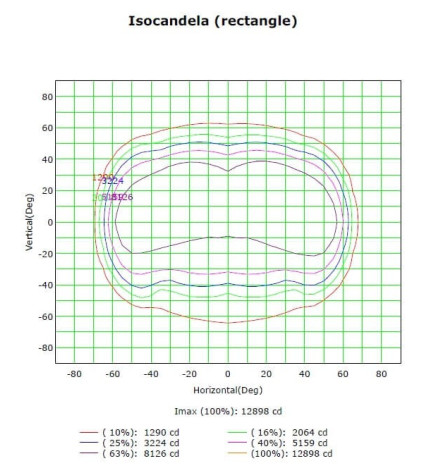

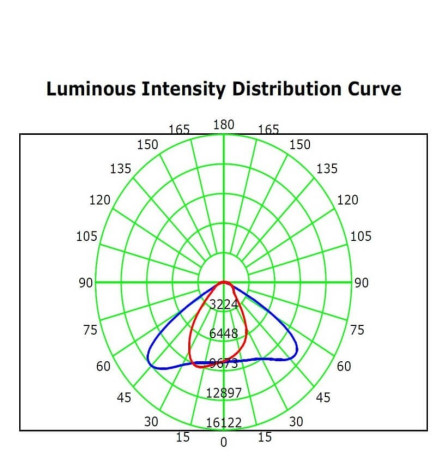

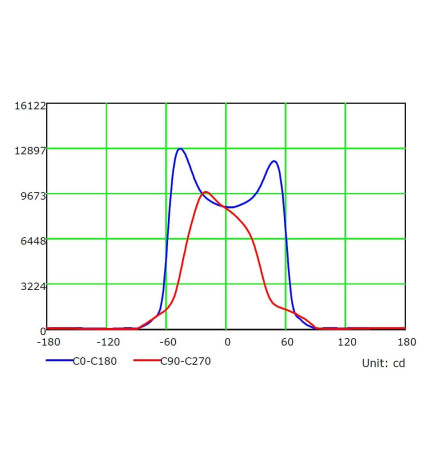

Beam Angle (º): 136º x 78º
Luminous diodo LED (Lm/W): 180 Lm/W
Luminous Efficiency (Lm/W): 153 Lm/W
Certifications: CE - ROHS
IP: IP65-Outdoor
Diode Life Expectancy (H): 50.000

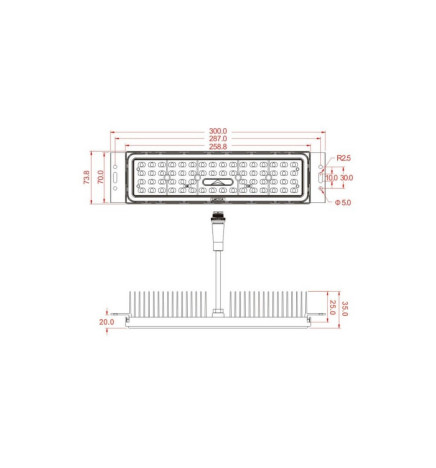

Dimensions (mm): 300mm x 75mm x 30mm
Power Factor (PF): 0,95
Frequency (Hz): 50/60Hz
Temperature Range (ºC): -15º+70º
On/Off Cycles: 100.000
Starting Time (s): 0,2s
Other Information: Driver: 23-42 VDC 1300mA +-5%
Impact Protection (IK): IK10

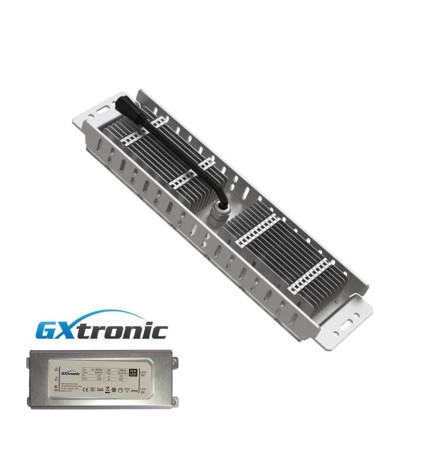

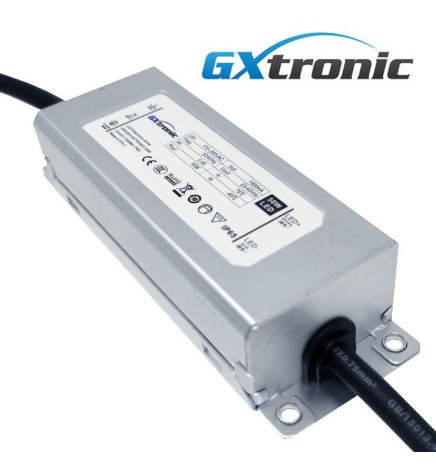

Driver included: Driver GXTronic - 5 Years
Energy Rating (2021-UE-2019/2015): A+
Warranty Years: 5
