50W LED Module MAGNUM Bridgelux Chip 180Lm/W 136ºx78º + Steel Plate
4817MG50W136-KIT-4K

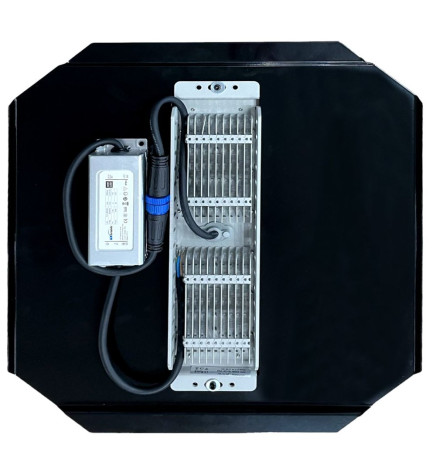

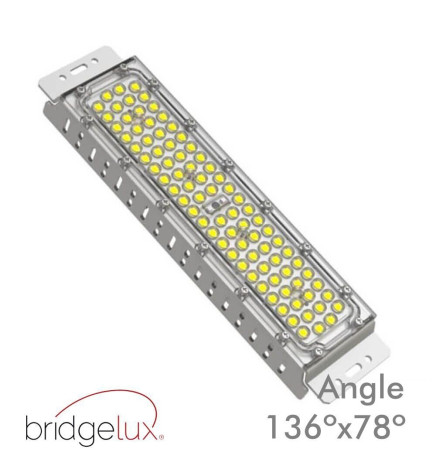

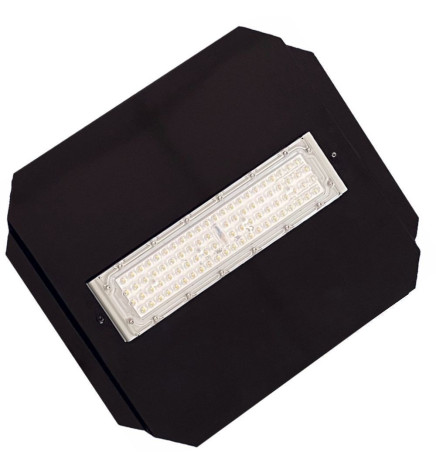

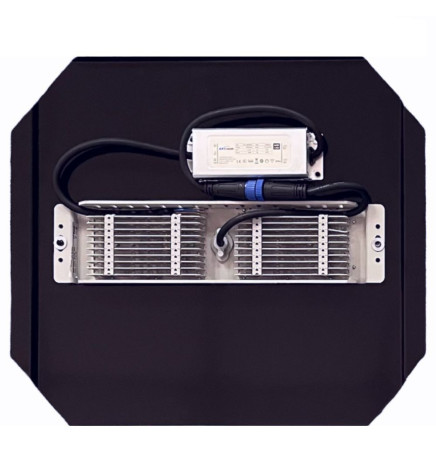

This 50W 136º x 78º LED OPTIC Module Chip Bridgelux is made with a team of 84 SMD 3030 3D LED diodes. This module IP65. Thanks to its excellent dissipation, it has a long useful life and great energy savings, making it an ecological product. Incorporates 1.2mm baked-on polyester paint steel plate.
-
80
-
7500 Lm
-
136º x 78º
-
153 Lm/W
-
IP65-Outdo
-
50.000
-
380x330xH6
Fast and secure delivery
We offer professional prices for LED lighting
€85.00
No tax
50W LED Module MAGNUM Bridgelux Chip 180Lm/W 136ºx78º + Steel Plate
This LED Module serves as a replacement for old bulbs that were very polluting.
This 50W 136º x 78º LED OPTIC Module Bridgelux Chip is made with a team of 84 SMD 3030 3D LED diodes. This module IP65. Thanks to its excellent dissipation, it has a long useful life and great energy savings, making it an ecological product. Incorporates 1.2mm baked-on polyester paint steel plate.
The quality of its materials make it an essential product to generate a clean and long-lasting energy.
It is designed to obtain a great illumination creating perfect atmospheres especially to illuminate in a wide way, thanks to its angle of 136º x 78º
Its IP65 protection makes it suitable for outdoor use and has a safety against splashes.

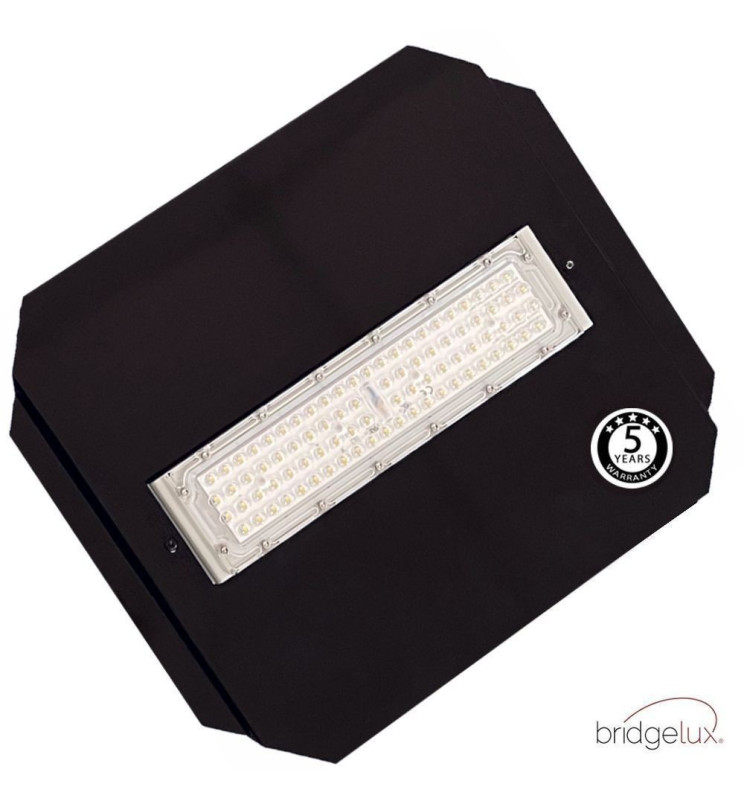

It has a 5 year warranty.

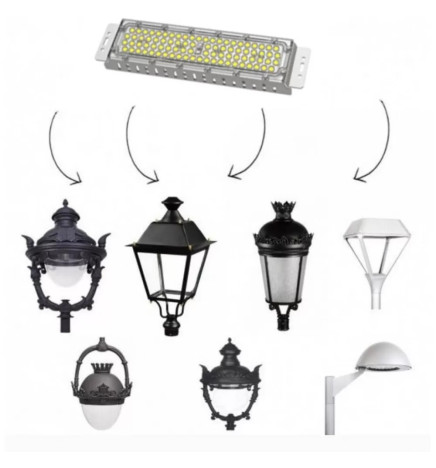

Uses of 50W LED Module MAGNUM Bridgelux Chip 180Lm/W 136ºx78º + Steel Plate
- Lampposts
In FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for the DISTRIBUTION, IMPORT or SALE wholesale, including the technical sheet of each LED product.
4817MG50W136-KIT-4K
Data sheet
- MAGNUM50W136-KIT
- 4000K-5000K
- 80
- Aluminium +PMMA
- 7500 Lm
- SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30

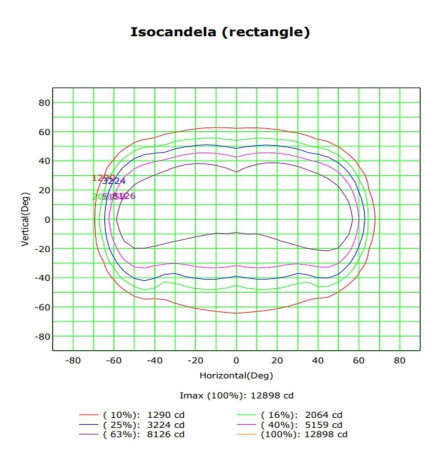

- 136º x 78º
- 180 Lm/W
- 153 Lm/W
- CE - ROHS
- IP65-Outdoor
- 50.000
- 380x330xH60mm
- 0,95
- 50/60Hz
- -15º+70º
- 100.000
- 0,2s
- Driver: 23-43 VDC 1300mA +-5%
- IK10
- Driver GXTronic - 5 Years
- A+
- 5
REFERENCE
Colour
Construction Material
Number & Type of LEDs
Luminous diodo LED (Lm/W)
Certifications
Power Factor (PF)
Frequency (Hz)
Temperature Range (ºC)
On/Off Cycles
Starting Time (s)
Other Information
Impact Protection (IK)
Driver included
Energy Rating (2021-UE-2019/2015)
Warranty YearsYou might also like
-
