Ceiling LED fan RAINBOW Colours - E27 - 53W - 76cm

VL75165

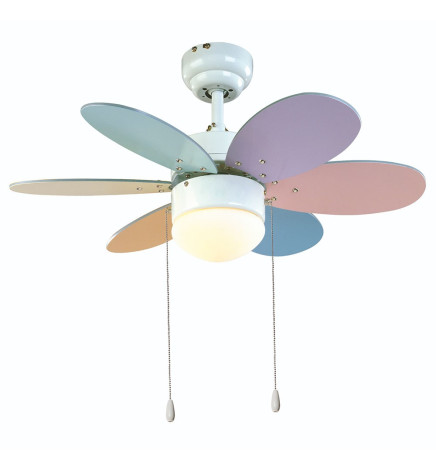

LED Fan 76cm diameter, with white finished body and six reversible blades included: white and washed pine. With opal glass.

Reduce the ambient temperature with the cool air from our fans while saving on your electricity bill thanks to LED lighting.

  • Nominal Voltage

    220-240V

  • IP

    IP20

  • Dimensions (mm)

    Ø760x280 m

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€48.90
No tax



Download PDF

RAINBOW LED Ceiling fan - E27 - 53W - IP20


LED Fan 76cm diameter, with white finished body and six reversible blades included: white and washed pine. With opal glass. Activated by two chains with decorative handle. It includes an E27 socket so that you can install the bulb that best suits your needs and has the option of mounting at two heights, one with a stem and the other directly to the motor. Summer/winter function.

Activated by means of two chains with decorative handle, it has the option of mounting at two heights, one with post and the other directly to the motor. Thanks to its Reverse System, the fan has two functions, summer/winter option, with this mode the engine reverses the rotation of the blades getting to dissipate the hot air in summer and evenly distribute the hot air from the heating in winter, which improves the thermal sensation and optimizes the operation of the heating.

All our fans use the best technology to achieve optimum performance. Its silent system makes it work without causing uncomfortable noises in the environment.


Uses for LED Ceiling Fan RAINBOW - 53W - CCT - IP20

  • Halls
  • Offices
  • Bedrooms
  • Kitchens
  • Porches
  • Waiting Rooms
  • Restaurants

In FactorLED we ensure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

Technical data:

Style: Classic Consumption: 16 / 27 / 53 W/h
Body colour: White RPM: 131,187,237
Finish: Gloss Air flow: 2880,4020,5760 m3/h
Blade colour: White/Wood Noise level: 30,42,46 dB
Body material: Plate Light source: Lamp socket
Diffuser material: Glass No. of lamp sockets: 1
No. of blades: 6 Bulb included: No
Blade material: Plywood Maximum wattage: 40 W
Reversible Blades: Reversible IP: 20
Motor Type: AC Consumption: 53 W
Summer / Winter mode: Yes Class: I
Dimensions: Ø760x280 mm: Ø760x280 mm Voltage: 220-240 V
Blade length: 295 Frequency: 50 Hz
Mounting position: Single post + direct ceiling mounting Boxes per item: 1
Max. ceiling inclination: 15º. Volume: 0.0193 m3
Installation: 2.3 m Gross weight: 6 kg
Speeds: 3 Net weight: 5 kg
VL75165

Data sheet

REFERENCE
VL75165
Nominal Voltage
220-240V
Base
E27
Certifications
CE - ROHS
IP
IP20
Dimensions (mm)
Ø760x280 mm
Frequency (Hz)
50/60Hz
Warranty Years
5
Style
Classic
Main colour
White
Finishing
Glossy
Blade material
Wood
Number of blades
6
Diffuser material
Glass
Reversible blades
Yes
Engine type
AC
Summer / winter mode
Yes
Blade length
295
Mounting position
Single post + direct ceiling mounting
Maximum roof pitch
15º
Installation
2 - 3m
Speeds
3
RPM
131,187,237
Air flow
2880,4020,5760 m3/h
Noise level
30,42,46 dB
Consumption
16 / 27 / 53 W/h
Number of lampholders
1
Bulb included
No
