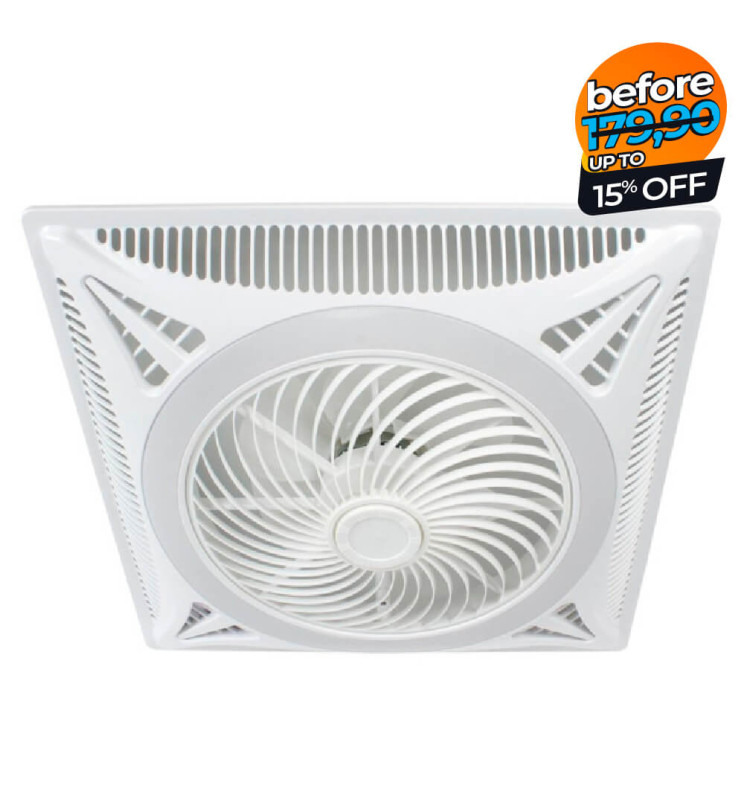

Armstrong LED Ceiling Fan 60x60 - 67W - CCT - 60x60cm

VT6067WCCT

The fan UFO Armstong is designed to be recessed in ceilings, and especially to replace 60x60 panels typical of workplaces, schools, restaurants or transit areas.

Reduce the ambient temperature with the cool air from our fans while saving on your electricity bill thanks to LED lighting.

  • Rated Power

    44W

  • Nominal Voltage

    220-240V

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    3000

  • Beam Angle (º)

    120°

  • IP

    IP20

  • Diode Life Expectancy (H)

    30.000

  • Dimensions (mm)

    598x598x17

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€133.81
No tax
Last items in stock



Download PDF

Armstrong LED Ceiling Fan - 67W - CCT - IP20

The fan UFO Armstong is designed to be recessed in ceilings, and especially to replace 60x60 panels typical of workplaces, schools, restaurants or transit areas. Its powerful built-in fan is capable of generating a forced ventilation of air to the outside that allows to renew the air in the room.

The movement of its blades helps to reduce the levels of carbon dioxide and particles, as it favours the natural air flow in a more constant and faster way.

It is closed upwards to prevent air and dirt from entering from the false ceiling. This fan with DC motor is ultra-quiet, has a low power consumption and has a powerful light source with dimmable colour temperature, i.e. with selectable shade and intensity. It also has a winter mode and sleep timer.

Thanks to its Reverse System, the fan has two functions, summer/winter option, with this mode the engine reverses the rotation of the blades getting to dissipate the hot air in summer and evenly distribute the hot air from the heating in winter, which improves the thermal sensation and optimizes the operation of the heating.

The light includes CCT technology, now you can select the white color option from 3000K warm light, 4000K daylight, 6000K cool light.

All our fans use the best technology to achieve optimum performance. Its silent system makes it work without causing uncomfortable noises in the environment.



Uses for Armstrong LED Ceiling Fan - 67W - CCT - IP20

  • Halls
  • Offices
  • Bedrooms
  • Kitchens
  • Porches
  • Waiting Rooms
  • Restaurants

In FactorLED we ensure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

Technical data

Style: Industrial Opening angle: 120º.
Body colour: White Illumination power: 44 W
Finish: Matt Colour temperature: 3000-6000 K
Blade colour: Transparent Luminous flux: 3000 Lm
Body material: ABS CRI: 80
Diffuser material: ABS IP: 20
No. of blades: 5 Dimmable: Yes
Blade material: ABS Power factor: 0.9000 W
Reversible blades: Single piece Consumption: 67 W
Motor Type: DC Class: I
Summer / Winter mode: Yes Voltage: 220-240 V
Dimensions: Ø598x170 mm: Ø598x170 mm Frequency: 50-60 Hz
Mounting position: Recessed Armstrong Life hours: 30000 h
Installation: 2,3 m Number of ignitions: 10000
Speeds: 6 Boxes per article: 1
RPM: 600,730,830,940,980,1050 Volume: 0.0726 m3
Airflow: 3660,4620,5550,6480,7800,8700 m3/h Gross weight: 7 kg
Noise level: 20,30,35,40,45,50 dB Net weight: 4 kg
VT6067WCCT

Data sheet

REFERENCE
VT6067WCCT
Rated Power
44W
Nominal Voltage
220-240V
Colour
SELECTABLE COLOUR: 3000K-4000K-6000K
CRI - Chromatic Rendiment Index
80
Luminosity-Lm
3000
Beam Angle (º)
120°
Dimmable
YES
Certifications
CE - ROHS
IP
IP20
Diode Life Expectancy (H)
30.000
Dimensions (mm)
598x598x170 mm
Power Factor (PF)
0.9
Frequency (Hz)
50/60Hz
On/Off Cycles
100.000
Warranty Years
3
Style
Industrial
Main colour
White
Finishing
Matte
Colour of the blades
Transparent
Blade material
ABS
Body material
ABS
Number of blades
4
Diffuser material
ABS
Reversible blades
Yes
Engine type
DC
Summer / winter mode
Yes
Mounting position
Recessed Armstrong
Installation
2 - 3m
Speeds
6
RPM
600,730,830,940,980,1050
Air flow
3660,4620,5550,6480,7800,8700 m3/h
Noise level
20,30,35,40,45,50 dB
Consumption
67W
Boxes per item
1
Volume
0.0726 m3
