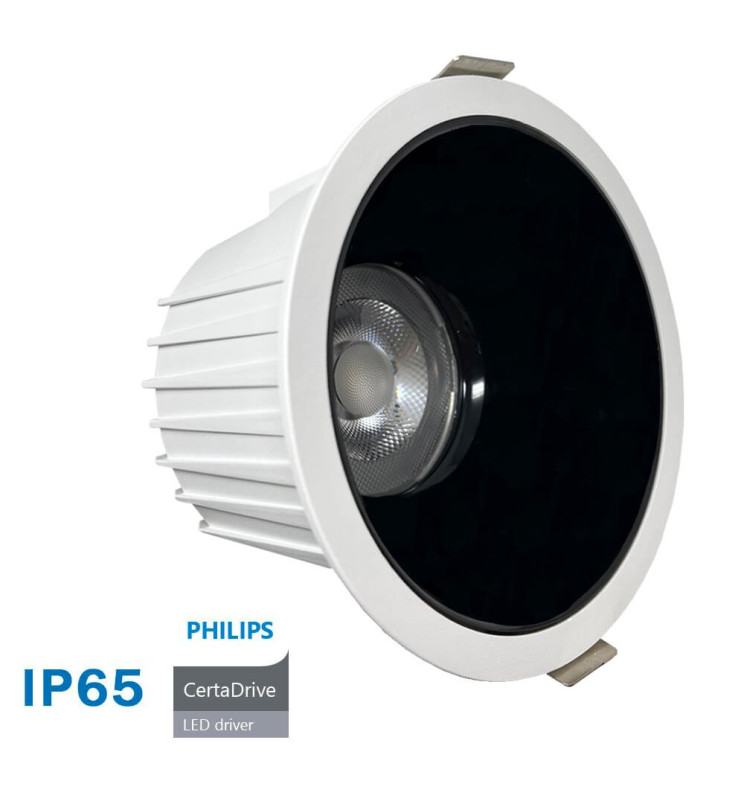

40W LED Downlight Round - Philips CertaDrive - CCT - UGR13 - IP65

90722

DOWNLIGHT CCT: SELECTABLE COLOR: Our 40W Philips CertaDrive circular recessed LED Downlight has a color temperature selector, cool white, neutral white and warm white. UGR13. Angle of 120º. The front of the luminaire is IP65.

  • Rated Power

    40w

  • Nominal Voltage

    175-265V

  • CRI - Chromatic Rendiment Index

    85

  • Luminosity-Lm

    5000

  • Beam Angle (º)

    45º

  • Luminous Efficiency (Lm/W)

    125 Lm/W

  • IP

    Front: IP6

  • Diode Life Expectancy (H)

    40.000

  • Dimensions (mm)

    Ø165mm * H

Brightness calculation
Fast and secure delivery
We offer professional prices for LED lighting

Certificado CE Certificado ROHS
€30.55
No tax



Download PDF

40W LED Downlight - Philips CertaDrive- CCT - UGR13 - Special for Bathrooms and Kitchens - Front IP65 - Circular



Our Philips CertaDrive Downlight with 40W power is characterized by its easy handling, achieving precise and personalized lighting in any interior and exterior space.

In addition, with its high UGR you will not have problems with glare, since it has a low glare index UGR13.

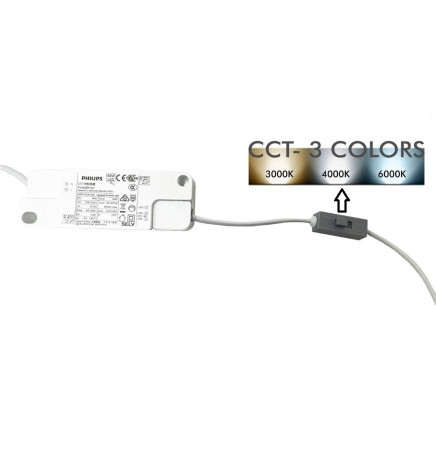

SELECTABLE COLOR: Our Downlight has a color temperature selector, being able to choose between cold white - 6000K-, neutral white -4000K- and warm white -3000K-.

Thanks to its color selection system you can adapt it to the needs of your business or your home, being able to choose the desired color for each room or room.

The high-efficiency BRIDGELUX light source delivers high luminosity, which will perfectly replace traditional spotlights, providing savings of over 80%.

With its functional design, installation is quick and easy.

Its high color rendering index +85 guarantees natural color reproduction.

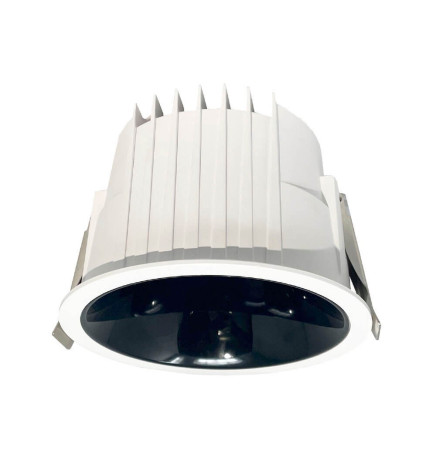

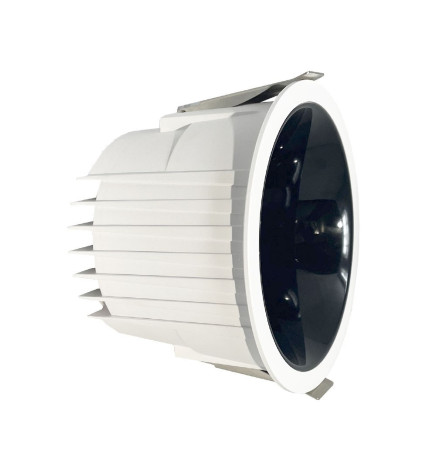

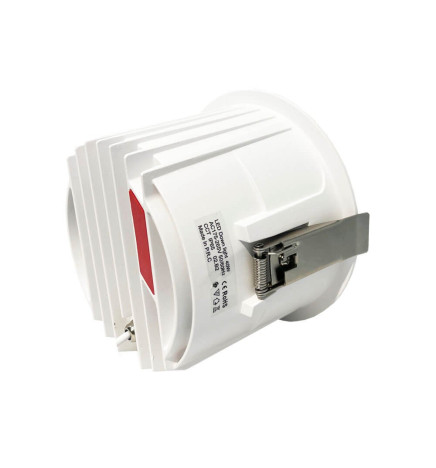

Its aluminum body is specifically designed so that the temperature of the LED is optimal and achieve the best performance and durability.

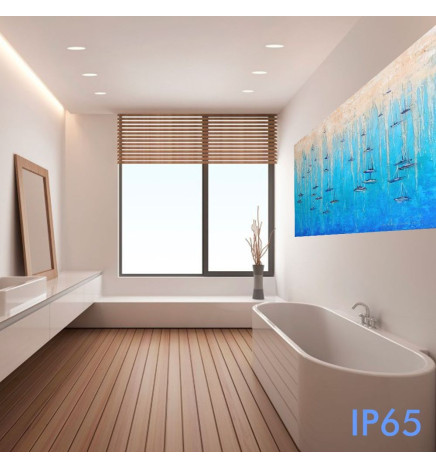

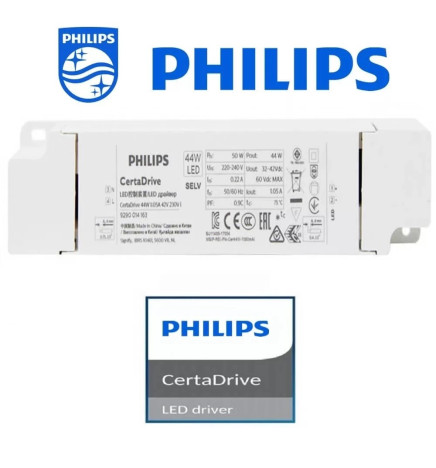

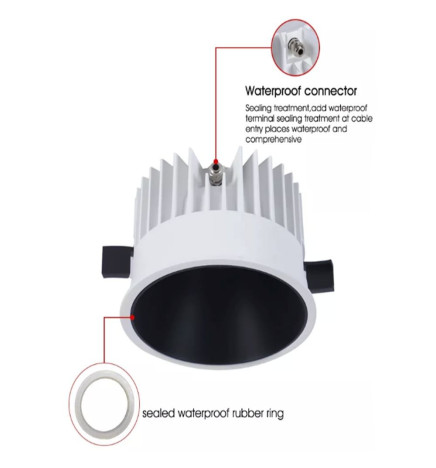

The front part of the luminaire is IP65 so it can also be used in humid areas such as bathrooms and in indoor outdoor areas. the Philips CERTADRIVE power supply is IP20.

Its reflector, made of technical PMMA, creates a high-quality, uniform and spot-free light.

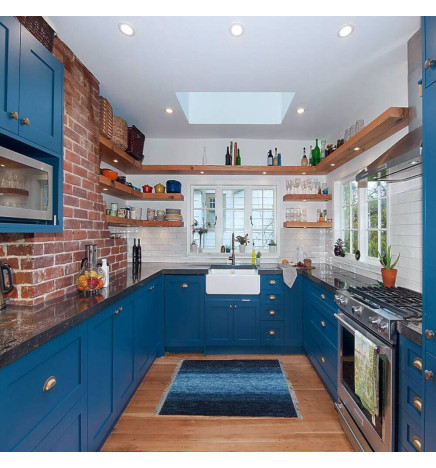

Uses: 40W LED Downlight - Philips CertaDrive- CCT - UGR13 - IP65 - Circular

  •      Stores
  •      Restaurants
  •      Museums
  •      Commercial galleries
  •      Malls
  •      Toilets
  •      Kitchens
  •      Indoor outdoor corridors
  •      Shop windows


At FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical sheet of each LED product.

90722

Data sheet

REFERENCE
90722
Rated Power
40w
Nominal Voltage
175-265V
Colour
SELECTABLE COLOUR: 3000K-4000K-6000K
CRI - Chromatic Rendiment Index
85
Construction Material
Aluminiun+PC
Luminosity-Lm
5000
Number & Type of LEDs
COB Bridgelux
Beam Angle (º)
45º
Luminous diodo LED (Lm/W)
150Lm/W
Luminous Efficiency (Lm/W)
125 Lm/W
Certifications
CE - ROHS
IP
Front: IP65 - Philipsd CertaDrive: IP20
Diode Life Expectancy (H)
40.000

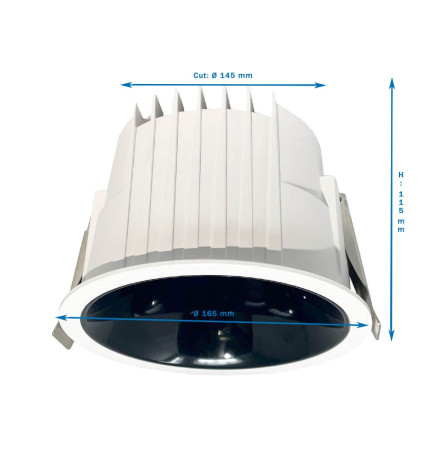

Dimensions (mm)
Ø165mm * H115mm
Power Factor (PF)
0,95
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Cut-out Size (mm)
Ø145mm
Glare Rating (UGR)
13
Driver included
PHILIPS CertaDrive
Energy Rating (2021-UE-2019/2015)
A+
Energy Rating (2023 - UE-2019/2015)
F
Warranty Years
3
