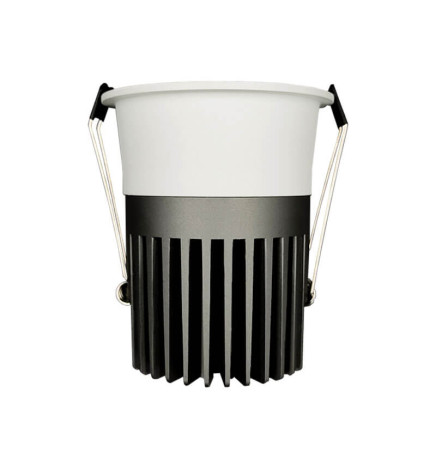

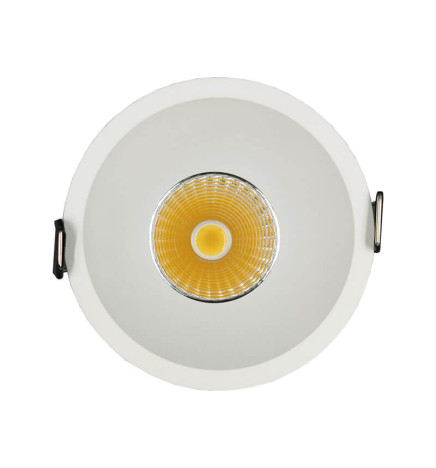

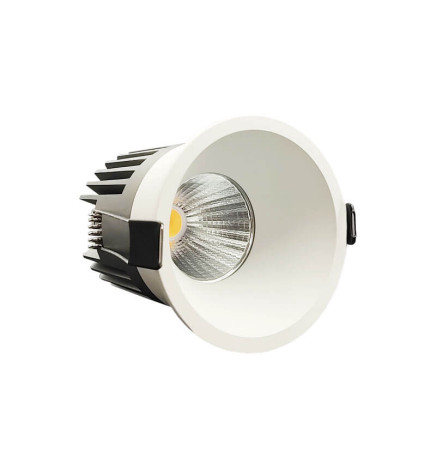

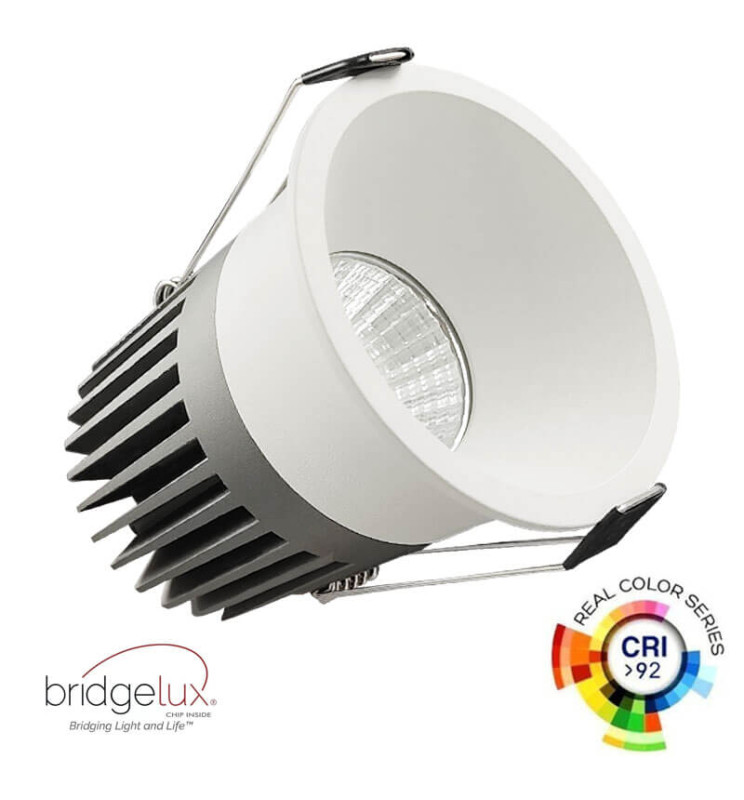

18W-24W LED Downlight LUCERNA - 38° - UGR11 - 2700K+CCT

Reference: 8052-CCT

The 18-24W Lucerna LED Recessed Light is a versatile and efficient lighting solution. With a 38-degree beam angle and low glare emission (UGR11), it provides precise and comfortable illumination. Its adjustable color temperature (2700K+CCT) allows for customization to suit specific needs. An ideal choice for spaces seeking functional and pleasant lighting.

18W-24W
85V-265V
93
2070
38º
105Lm/W
IP20
35.000
Ø83x955mm

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€20.80

No tax

Download PDF

Description
Product Details

18W-24W LED Downlight LUCERNA - 38° - UGR11 - 2700K+CCT

Illuminate your space with the sophistication and efficiency of the Recessed LED LUCERNA! With an adjustable power range from 18W to 24W, this versatile device is perfect for adapting to your lighting needs. Its 38-degree beam angle projects a uniform and bright light, enhancing the beauty of any environment.

The UGR11 technology minimizes glare, providing a comfortable and welcoming visual experience. Additionally, the adjustable color temperature (2700K+CCT) allows you to customize the atmosphere of your space, from warm and relaxing ambient light to a brighter and focused illumination.

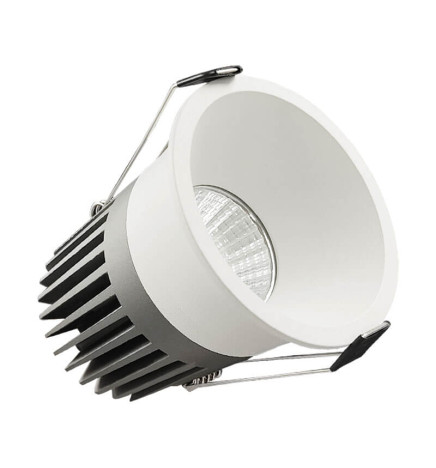

Designed to be recessed, this LED integrates seamlessly and discreetly into ceilings and surfaces, adding a touch of modernity to any setting. Its energy efficiency will help reduce costs in the long run, while its durability ensures reliable performance for years.

Seize the opportunity to transform your spaces with the Recessed LED LUCERNA. Order it today and discover the difference that quality lighting can make in your home or office!

Empotrable LED 7W Circular 45°

In FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for the DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

Reference 8052-CCT

Data sheet

REFERENCE: 8052
Rated Power: 18W-24W
Nominal Voltage: 85V-265V

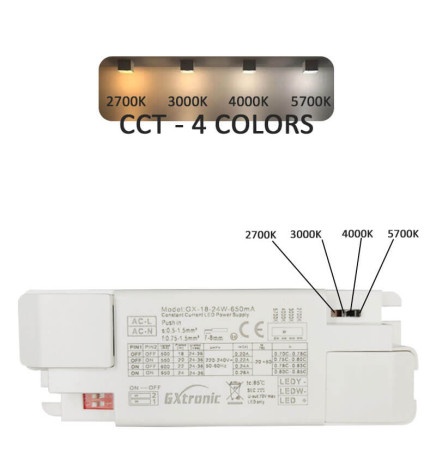

Colour: 2700K + CCT
CRI - Chromatic Rendiment Index: 93
Construction Material: Aluminium
Luminosity-Lm: 2070

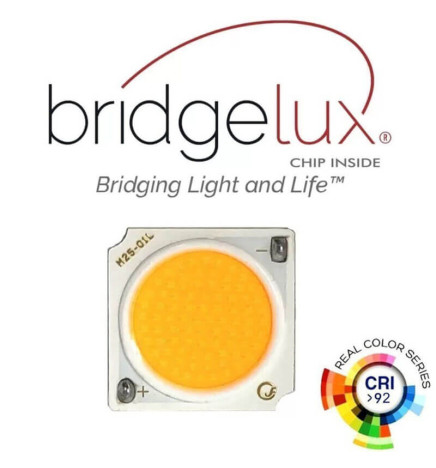

Number & Type of LEDs: COB

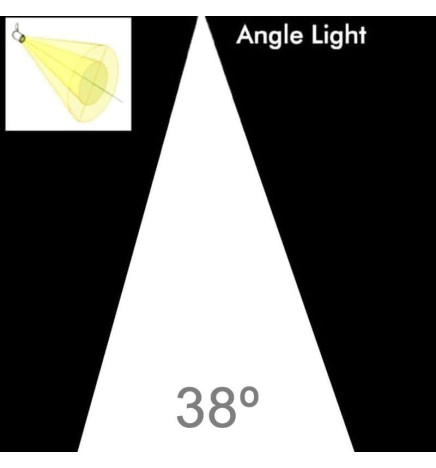

Beam Angle (º): 38º
Luminous diodo LED (Lm/W): 120 Lm/W
Luminous Efficiency (Lm/W): 105Lm/W
Certifications: CE - ROHS
IP: IP20
Diode Life Expectancy (H): 35.000

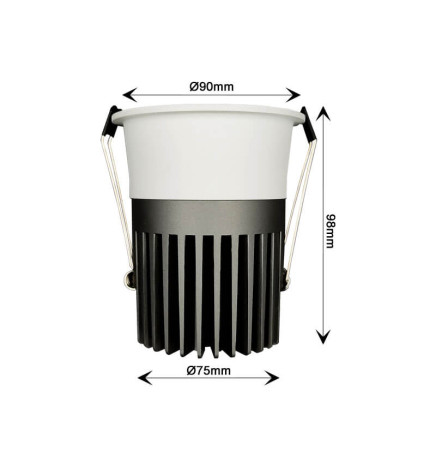

Dimensions (mm): Ø83x955mm
Frequency (Hz): 50/60Hz
Temperature Range (ºC): -20°C ~ +55°C
On/Off Cycles: 100.000
Starting Time (s): 0,2s
Cut-out Size (mm): Ø 75mm

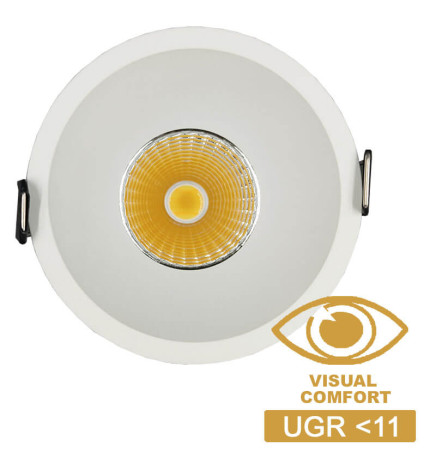

Glare Rating (UGR): 11

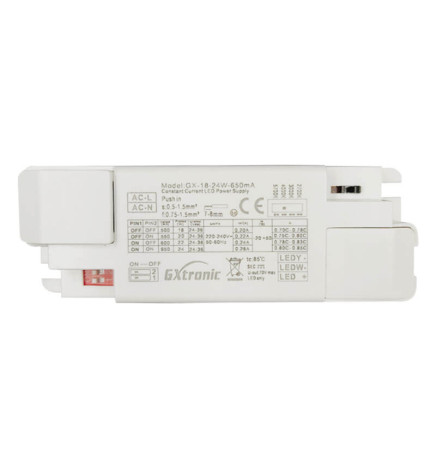

Driver included: YES
Energy Rating (2021-UE-2019/2015): A+
Energy Rating (2023 - UE-2019/2015): E
Warranty Years: 3
