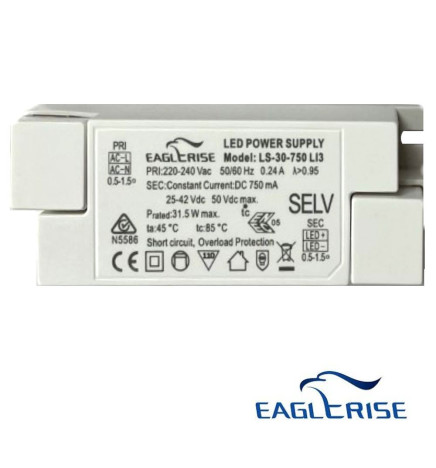

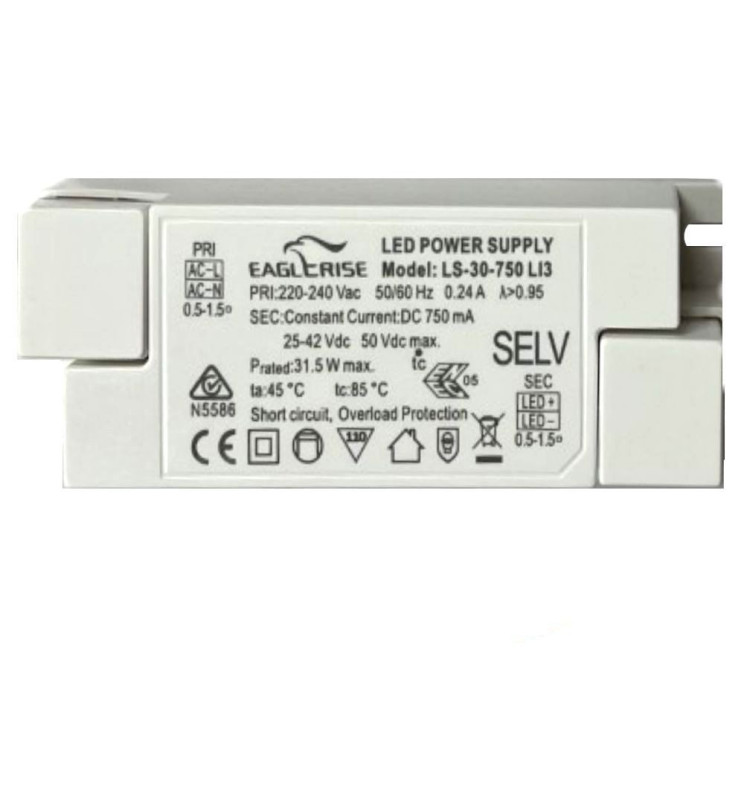

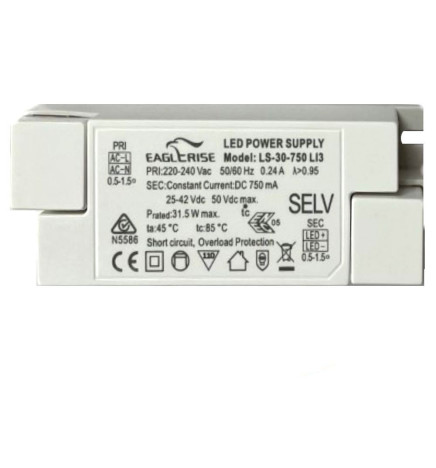

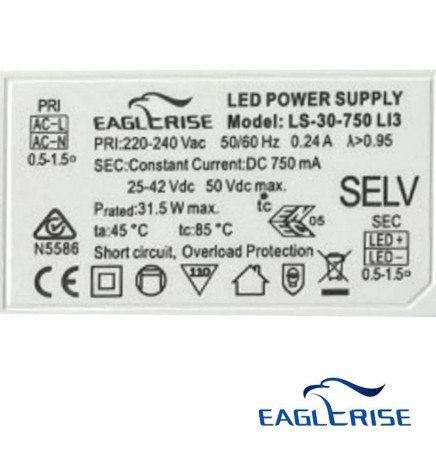

Driver for LED luminaires 30W 750mA

Reference: DRIVER30W-750MA

Driver: Power supply for LED luminaires of 30W with a range of 750mA.
Input: AC220-240V; Output DC25-42V 750mA.

30W
220-240V
IP20

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€7.88

No tax

Download PDF

Description
Product Details

Driver for 30W LED luminaires with 750mA range. It is a transformer driver of current and voltage for LED downlights and LED luminaires, its plastic box protects against possible damage caused by dust.

Reference DRIVER30W-750MA

Data sheet

REFERENCE: DRIVER20W-300MA
Rated Power: 30W
Nominal Voltage: 220-240V
Construction Material: Flame retardant thermoplastic
Certifications: CE - ROHS
IP: IP20
Power Factor (PF): 0,91
Frequency (Hz): 50/60Hz
Temperature Range (ºC): -20°C ~ +55°C
Other Information: Exit tension: DC25-42V 750mA
Warranty Years: 3
