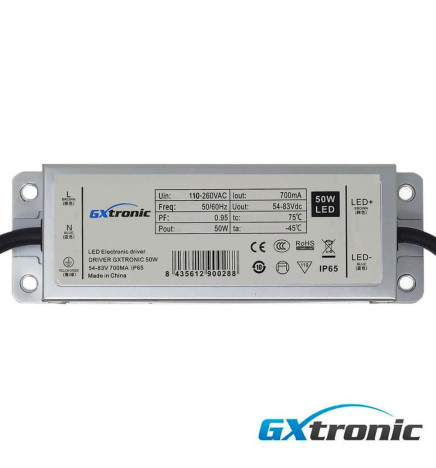

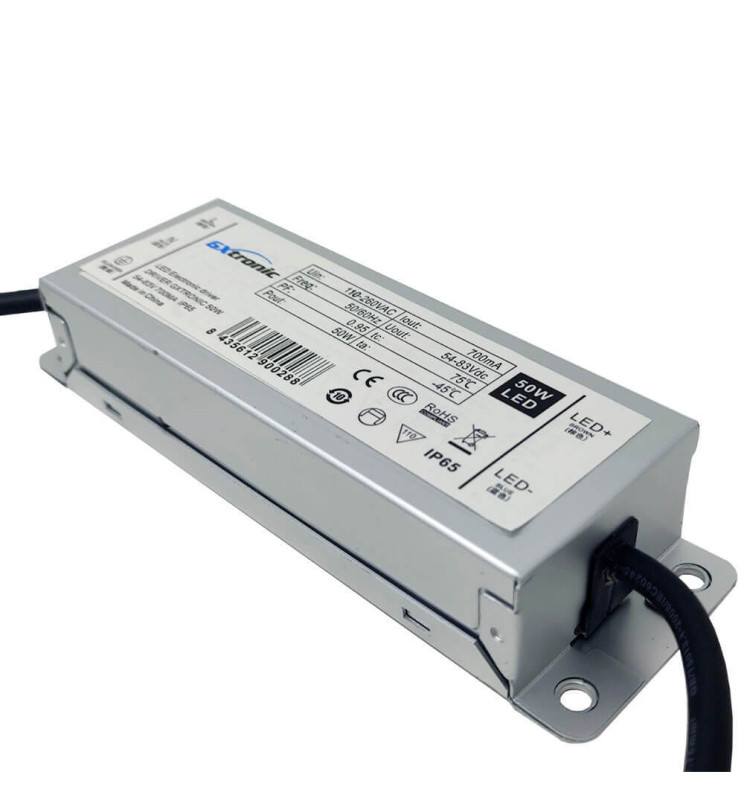

Driver for LED luminaire 50W 700mA - IP65

Reference: DRIVER50W-700MA

Driver for 50W LED luminaire with 700mA range. It is a current and voltage transformer for LED luminaires. Model that has IP65, which allows its use both outdoors and indoors.

Output: DC54-83V 1350mA - GXTRONIC

50w
AC110v-260
IP65-Outdo
170x55x35m

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€11.80

No tax

Download PDF

Description
Product Details

Driver for 50W LED luminaire with 700mA range. It is a current and voltage transformer for LED luminaires. Model that has IP65, which allows its use both outdoors and indoors.

Output: DC54-83V 1350mA - GXTRONIC

Reference DRIVER50W-700MA

Data sheet

REFERENCE: DRIVER50W-700MA
Rated Power: 50w
Nominal Voltage: AC110v-260v
Construction Material: Aluminium +PMMA
Certifications: CE - ROHS
IP: IP65-Outdoor
Dimensions (mm): 170x55x35mm
Power Factor (PF): 0.95
Frequency (Hz): 50/60Hz
Other Information: Exit: DC54-83V 700mA - GXTRONIC
Warranty Years: 5
