LED Emergency Light 4W + Ceiling Kit + Permanent Light Option - IP65

EM415LM-6K

The 4W LED emergency light with ceiling kit has the option of permanent and non-permanent. And it's perfect when you need a light spot that keeps working when there's a power outage. It has green and red diode, they are the pilots that inform of the load in the battery.

*Option of the emergency with permanent light or Not permanent.

  • Rated Power

    4W

  • Nominal Voltage

    220-240V

  • CRI - Chromatic Rendiment Index

    75

  • Luminosity-Lm

    415Lm

  • Beam Angle (º)

    120º

  • Luminous Efficiency (Lm/W)

    101Lm/W

  • IP

    IP65-Outdo

  • Diode Life Expectancy (H)

    30.000

  • Dimensions (mm)

    290*125*90

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS Certificado ROHS TUV
€22.73
No tax
Options: Único
  • Único
Color temperature: Cold White - 6000K
  • Cold White - 6000K



Download PDF
  • Video: LED Emergency Light 4W + Ceiling Kit + Permanent Light Option - IP65

4W LED EmergencyLight + Ceiling Kit + Permanent Light Option - IP65


The 4W LED emergency light with ceiling kit has the option of permanent and non-permanent. And it's perfect when you need a powerful 406 lm light spot (50 high brightness SMD 2835 diodes) that still works when there's a power outage.

You have 2 options:

  1. Charging mode: The emergency remains off and charging until there is a power failure.
  2. On Mode: The emergency remains constantly on

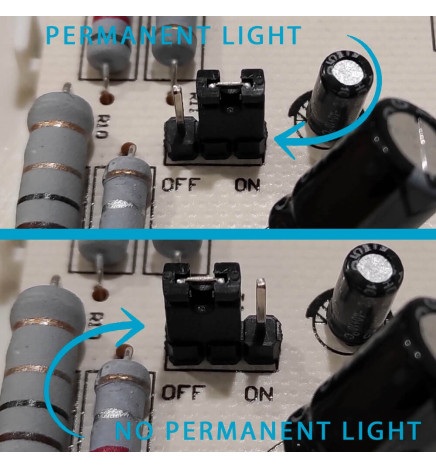

With a very reduced consumption, this LED emergency light of only 4W has the option of placing it on the surface and recessed thanks to its Kit to place it in false ceilings that will illuminate it sufficiently in case we have to leave a room or building when a blackout occurs and we do not have, for example, natural light. It should be noted that this luminaire remains on at all times if you choose to configure its interior part with the permanent ignition (has configuration switch).

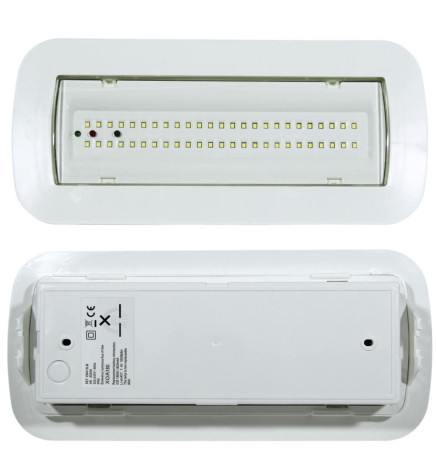

It is made of ABS plastic of great durability and includes a Ni-Cd 7.4/1.8Ah battery that can work for up to 3 hours, with a charging time of 5 hours. The optional flush kit is supplied with the product, which allows installation in ceilings and walls in a very simple and fast.

The 4W LED emergency light with ceiling kit and permanent light is available in our online lighting shop at an unbeatable price.

Installation Instructions:

  • Installation should only be done by individuals with technical knowledge and electrical experience.
  • Use a cable that is suitable for outdoor use (if installed outside).
  • Do not use a dimmer to operate this light.
  1. Ensure the main power supply is turned off.
  2. Drill two holes at the desired height, where the LED fixture should hang. Use the two designated points on the fixture as spacing between the holes.

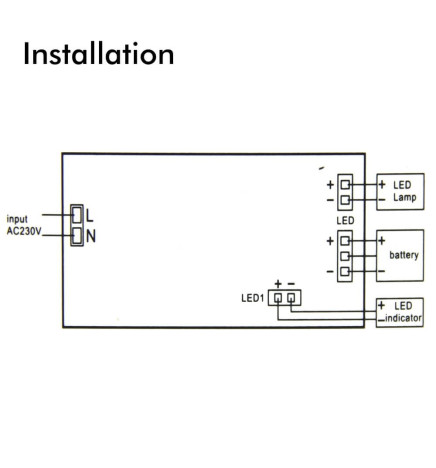

  3. Connect the light to the electrical network using the terminal block inside the light.
  4. Turn the rotating piece to secure the cable.
  5. Secure the light to the desired position. Use appropriate rubber rings around the screws inside the fixture to make it waterproof.
  6. Activate the power supply.

At Factorled we ensure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT OR WHOLESALE, including the technical data sheet of each LED product.

EM415LM-6K

Data sheet

REFERENCE
Rated Power
4W
Nominal Voltage
220-240V
Colour
6000K
CRI - Chromatic Rendiment Index
75
Construction Material
ABS + PC (Cover) + PCB
Luminosity-Lm
415Lm
Number & Type of LEDs
50 SMD 2835
Beam Angle (º)
120º
Luminous diodo LED (Lm/W)
120Lm/W
Luminous Efficiency (Lm/W)
101Lm/W
Certifications
CE - ROHS-TÜV
IP
IP65-Outdoor
Diode Life Expectancy (H)
30.000
Dimensions (mm)
290*125*90mm
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
Charge time 12Hrs
Cut-out Size (mm)
245*85mm
Material of the Battery
Li-ion
Download Time
3H.
Impact Protection (IK)
IK10
Energy Rating (2021-UE-2019/2015)
A+
Warranty Years
3
