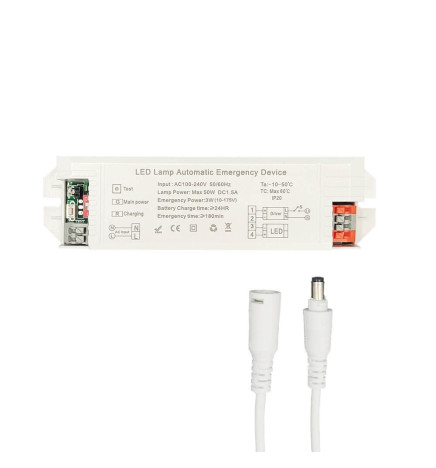

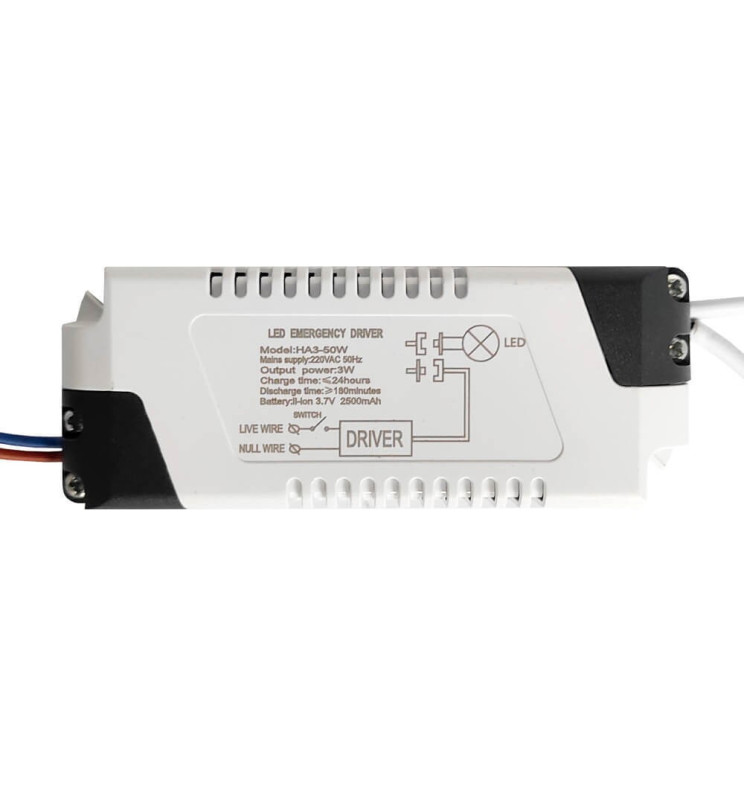

LED luminaire Emergency conversion kit - Max.50W

BATERYPCTMBW

CONVERTS ALL TYPES OF LED LUMINAIRE - WITH DRIVER - IN EMERGENCY. With the 2500mAh emergency battery you will be able to convert any LED luminaire into an emergency. Its operation is by regulating the luminaire to 30% where you install it automatically. Maximum of 50W. (Not suitable for Driverless products).

  • Rated Power

    3W-50W

  • Nominal Voltage

    DC18V-175V

  • IP

    IP20

  • Dimensions (mm)

    140x55x33m

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€16.98
No tax



Download PDF


The battery has 2500 mAh (2.5Ah) of a range that depends on the consumption according to the watts of the luminaire where it is installed. The luminaire will regulate the luminous flux to 30% of its total power, resulting in a minimum duration of:

  •     50W: Duration 50 minutes
  •     40w: Duration 60 minutes
  •     30w: Duration: 75 minutes
  •     20w: Duration 90 minutes


The battery is installed by powering the luminaire's LED driver and connecting to the electrical network.

BATERYPCTMBW

Data sheet

REFERENCE
BATERYPCTMBW
Rated Power
3W-50W
Nominal Voltage
DC18V-175V
Construction Material
Thermoplastic
Certifications
CE - ROHS
IP
IP20
Dimensions (mm)
140x55x33mm
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-15º + 50º
Other Information
Battery 3.7V / 2.5Ah
Material of the Battery
LiFePO4 - Lithium-Ferrophosphate -LPF
Download Time
50W: 50 minutes - 40w: 60 minutes - 30w: 75 minutes - 20w: 90 minutes
Energy Rating (2021-UE-2019/2015)
A+
Warranty Years
2
