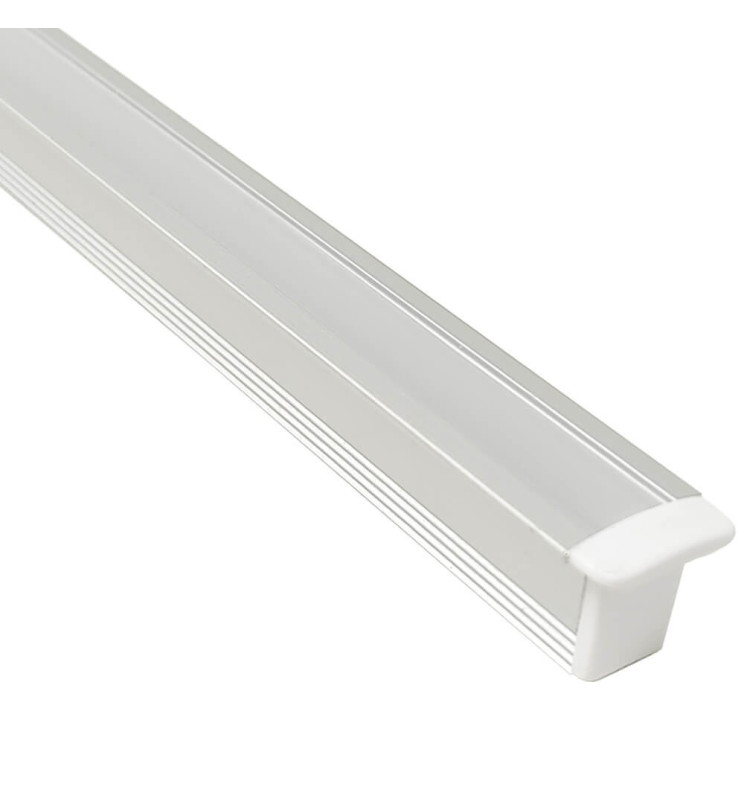

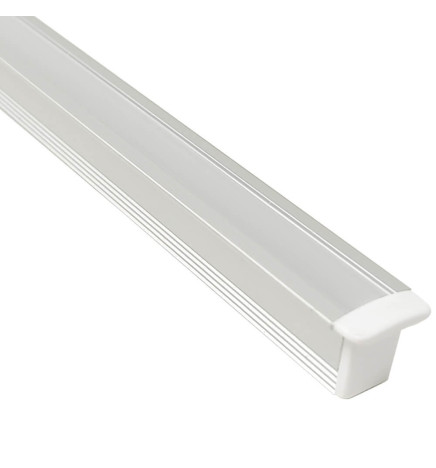

Integrated LED Linear Batten - Recessed - PHILADELPHIA MINI - SILVER -24V- 0,5m - 1 m - 1,5m - 2m
04009-4K-05-P
Our Professional linear luminaire 24V. - PHILADELPHIA MINI SILVER ANONISED - is designed for 24 hours uninterrupted intensive use. Our luminaire is handmade in Europe to suit your needs. Extruded from 98% pure aluminium, the professional light source is - SMD2010 12W/M - providing 1188 lumens per metre - 266 Leds/metre. Integrated LED luminaire includes fixing clips, power supply not included. 2 metres of cable. 3 year warranty.
Production time is 5 to 7 working days.
Our diffuser is opal white.
-
6W 0.5m -1
-
24V DC
-
90
-
1M:1188Lm/
-
120º
-
100 Lm/W
-
IP54
-
50.000
-
L: 0,50m -
Fast and secure delivery
We offer professional prices for LED lighting
€42.73
No tax
Integrated LED Linear Batten 24v. - Recessed - PHILADELPHIA MINI SILVER - 0,5m - 1 m - 1,5m - 2m
Our integrated LED batten is designed for intensive professional use where a high quality of light is required - CHROMATIC RENDERING INDEX +90-, at the same time as a good lifetime.
Our LED linear is a versatile and timeless range, it can be the protagonist in the interior design of a space or adapt to it. Thanks to the various sizes and colours available, it can provide a wide variety of visual sensations that will define the space from a new perspective.
Available in various lengths and in suspended or ceiling-mounted versions to adapt to different needs and installation heights. The luminaires, up to 2 metres long, become beautiful traces of light that shape the space.
Our integrated LED profile draws homogeneous lines of light that adapt to a variety of spaces with minimal visual impact, solving both general lighting needs and the floodlighting of vertical and horizontal planes.
Its design combines high transmittance diffusers that provide great visual comfort and energy efficiency.
Our professional linear LED luminaire has a power of 12W/metre.
The light source of our linear LED luminaire incorporates 266 high brightness SMD2010 Leds/meter delivering 1188Lm/meter; the LED diodes incorporate gold wire soldering for longer life.
The integrated LED luminaire includes 2 metres of cable for easy connection.
The power consumption of the luminaire is 6W for 50cm; 12W for 100cm; 18W for 150cm; and 24W for 200cm.
The LED luminaire is made of high purity 6063/6060 aluminium (98%), with UNE EN 755 and UNE EN 12020-1 heat treatment.
The lacquering of the luminaire is of high resistance and quality, the silver adonizado is -Qualanod- with 15 microns of thickness for a long useful life.
The diffuser is high transmittance to minimise lumen loss.
Our integrated linear LED luminaire, as it is custom made, offers a choice of warmer, neutral or cooler lighting and a variety of colours to choose from.
The luminaire is handmade in Europe to the desired size of the customer so this product does not admit product returns, as it is a custom-made product.
Production time is 5 to 7 working days.
Uses of the Integrated LED Linear Battenr - Recessed - PHILADELPHIA - MINI SILVER - 0,5m - 1 m - 1,5m - 2m:
- Retail
- Exhibitions
- Industries
- Offices
- Homes
In FactorLED we ensure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.
04009-4K-05-P
Data sheet
- 05015-P
- 6W 0.5m -12W 1m -18W 1,5m-24W 2m
- 24V DC
- 3000K-4000K-6000K -RED-GREEN-BLUE
- 90
- Aluminiun+PC
- 1M:1188Lm/2M: 2376Lm
- SMD2010 - 266 Chips/M
- 120º
- 150Lm/W
- 100 Lm/W
- CE - ROHS
- IP54
- 50.000
- L: 0,50m - 1m - 1,5m - 2m
- 0.97
- 50/60Hz
- -20°C ~ +55°C
- 100.000
- 0,2s
- A+
- F
- 3
REFERENCE
Colour
Construction Material
Number & Type of LEDs
Luminous diodo LED (Lm/W)
Certifications
Power Factor (PF)
Frequency (Hz)
Temperature Range (ºC)
On/Off Cycles
Starting Time (s)
Glare Rating (UGR)
Energy Rating (2021-UE-2019/2015)
Energy Rating (2023 - UE-2019/2015)
