LED 72W Linear - 2 meters - White - Strip Light + POTSDAM Pendant - UGR17

FL-AL2M90990-WH-27K

Discover the Linear LED 72W - Dimmable - White - POTSDAM - with high brightness, an innovative and elegant lighting solution. With a length of 2 meters, this White strip offers a modern and sophisticated design that fits perfectly into any environment.

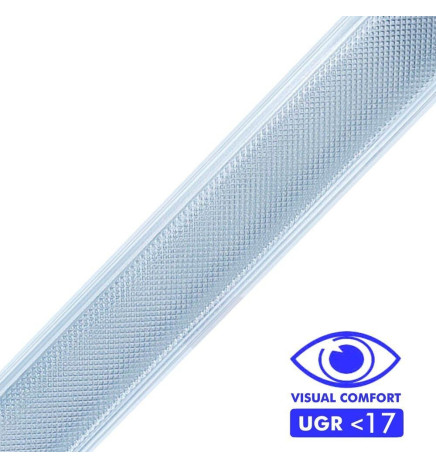

Its diffuser is made of transparent Micro Prima to achieve a UGR17 and prevent glare.

  • Rated Power

    72W

  • Nominal Voltage

    220V-240V

  • CRI - Chromatic Rendiment Index

    82

  • Luminosity-Lm

    7200Lm

  • Beam Angle (º)

    100º

  • Luminous Efficiency (Lm/W)

    100 Lm/W

  • IP

    IP44

  • Diode Life Expectancy (H)

    100.000

  • Dimensions (mm)

    45x40x2000

Brightness calculation
Fast and secure delivery
We offer professional prices for LED lighting

Certificado CE Certificado ROHS
€88.65
No tax
Color temperature: Warm White - 2700K
  • Warm White - 2700K
  • Natural White - 4000K
  • Cold White - 6000K



Download PDF

LED 72W Linear POTSDAM - 2 meters - White - UGR17- 2 Surface and Pendant placement options



Our linear LED - POTSDAM - is a versatile and timeless range, it can be the protagonist in the interior design of a space or adapt to it. Thanks to the various sizes and colors available, it can provide a wide variety of visual sensations that will define the space from a new perspective.

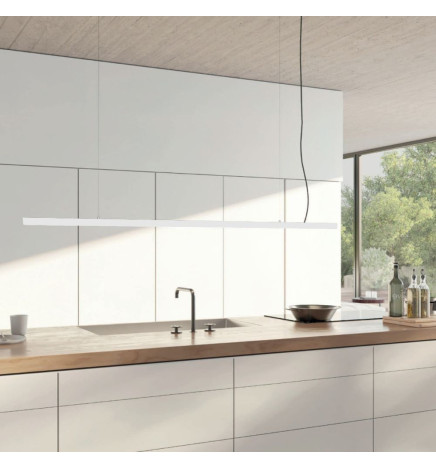

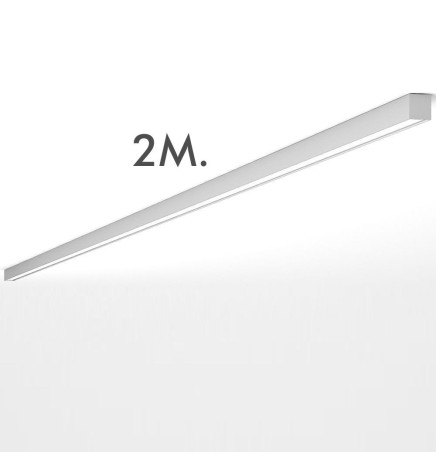

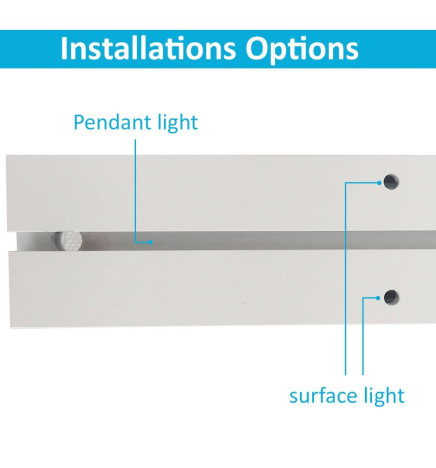

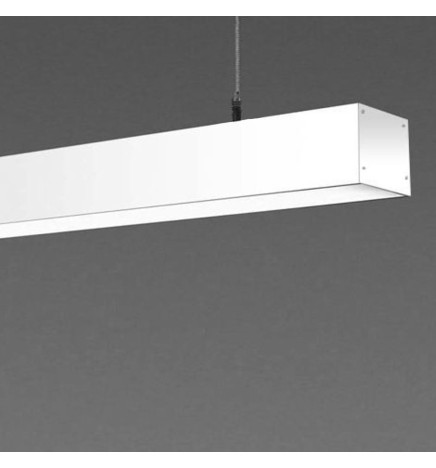

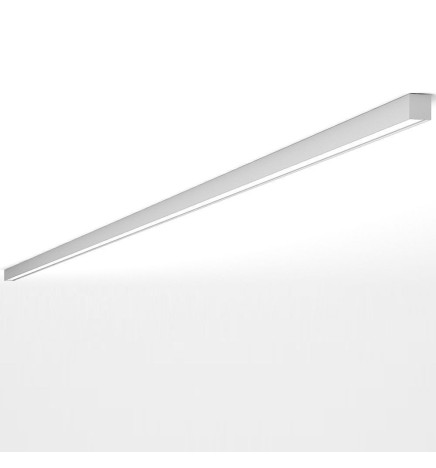

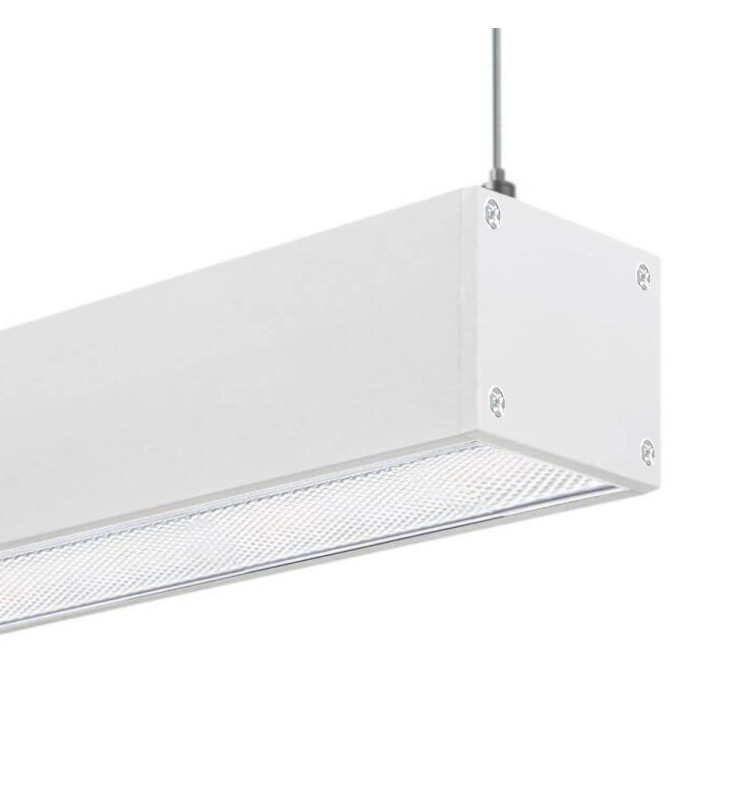

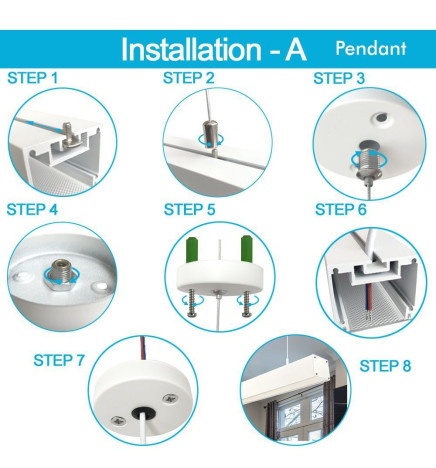

Our linear is prepared for suspension placement, pendant type, as surface placement, as LED strip type, to adapt to various needs and installation heights. The 2-meter-long luminaires become beautiful traces of light that shape the space.

The linear LED -POTSDAM - draws homogeneous lines of light that adapt to a wide variety of spaces with minimal visual impact, solving both general lighting needs and floodlighting vertical planes.

The light source of our linear LED luminaire incorporates 140 high-luminosity SMD2835 Leds/meter that delivers 2566lm/meter; LED diodes incorporate double gold wire soldering for longer life and reliability. Very low flikler level .

Our luminaire can also be used in areas with high humidity thanks to the fact that its IP67 light source is insulated with high-quality silicone (UC Class F1 UL94 and VOC-free), which prevents it from yellowing and cracking over the years. .

The luminaire is connected directly to 220v, not requiring a power supply or a rectifier bridge. The consumption of the luminaire is 72W for the 2 meters.

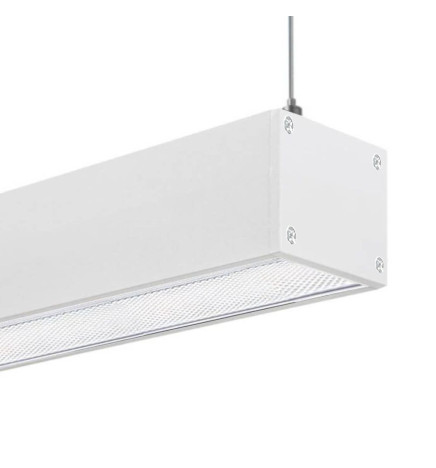

Its design combines high transmittance diffusers that provide great visual comfort and energy efficiency.

Our profile is painted in the oven. The advantages of painting in the oven can be summarized in:

-Durability: The paint is cured by the application of heat, creating a strong, even layer of paint that is less prone to wear, scratches and other types of damage.

-Corrosion resistance: It is resistant to corrosion and oxidation, which makes it ideal for applications in humid or corrosive environments.

-High quality: Baked painting allows you to create a uniform and high-quality layer of paint that adapts well to irregular surfaces or with complex details.

-Better adhesion: Baked paint has a better adhesion to the surface being painted, which reduces the probability of detachments or stains.

-Protection: Baked paint creates a finish that is resistant to UV rays and fading.

The linear luminaire is a versatile and efficient option for providing illumination in a variety of settings, and its straight, uniform shape makes it ideal for illuminating long and narrow surfaces.



Our aluminum POTSDAM Luminaire has a wide range of uses in lighting and decoration. Some of the frequent uses of the LED profile include:

  • Architectural Lighting: Highlights and enhances architectural elements such as cornices, moldings, stairs and hallways, providing soft, even lighting that adds elegance and style to spaces.
  • Interior lighting: Create ambient lighting in living rooms, bedrooms, kitchens and bathrooms. It can be installed on ceilings, walls or floors to create personalized and welcoming lighting effects.
  • Furniture Lighting: Highlights furniture, shelves, cabinets and cabinets, providing functional and decorative lighting that adds a modern and sophisticated look to furniture.
  • Commercial Lighting: Used in stores, restaurants, hotels, and commercial spaces to highlight specific products, displays, or areas. It helps to create an attractive and eye-catching atmosphere for customers.
  • Outdoor lighting: Weather resistant, it is used in outdoor applications such as terraces, gardens and building facades. It provides decorative and functional lighting, resisting adverse weather conditions.
  • Vehicle lighting: It is also used in automotive applications, such as the interior lighting of RVs, buses, cars, and trucks, improving the appearance and visibility inside the vehicles.



At FactorLED we ensure that our product has a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet for each LED product.

FL-AL2M90990-WH-27K

Data sheet

REFERENCE
FL-AL2M90990-WH
Rated Power
72W
Nominal Voltage
220V-240V
Colour
2700K-4000K-6000K
CRI - Chromatic Rendiment Index
82
Construction Material
Aluminiun+PC
Luminosity-Lm
7200Lm
Number & Type of LEDs
SMD2835 - 140 LEDs/M PCB12mm
Beam Angle (º)
100º
Luminous diodo LED (Lm/W)
140 Lm/W
Luminous Efficiency (Lm/W)
100 Lm/W

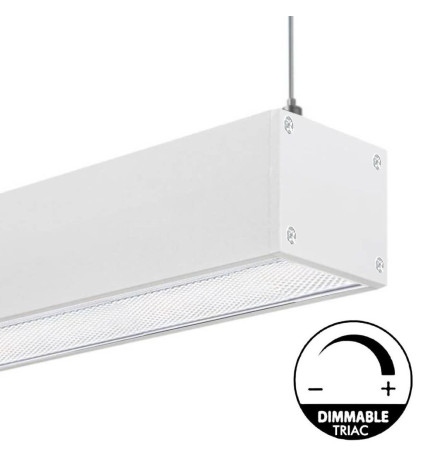

Dimmable
TRIAC
Certifications
CE - ROHS
IP
IP44
Diode Life Expectancy (H)
100.000

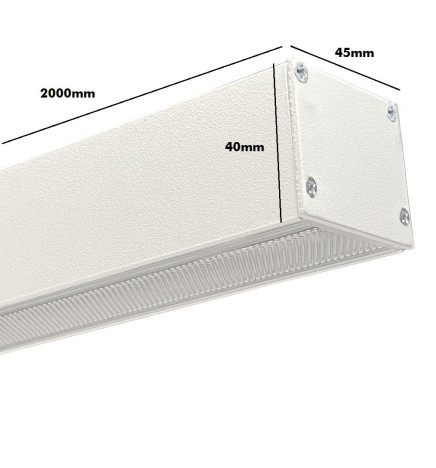

Dimensions (mm)
45x40x2000 mm
Power Factor (PF)
0,91
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Energy Rating (2021-UE-2019/2015)
A+
Energy Rating (2023 - UE-2019/2015)
F
Warranty Years
5
