Linear Lamp Pendant LED - Sound Absorbing - MUTE - 72cm - 128cm - 184cm - IP54 - Dimmable

NODIM-33001-MUTE-072-4K

Our professional linear LED luminaire - MUTE - Acoustic linear lamp made of PET felt, a sustainable and sound-absorbing material created from recycling 8.4 1.5-liter plastic bottles collected from the sea. PET felt has a wool-like appearance and absorbs ambient noise, improving acoustic comfort. Opal diffuser. FLICKER free = No flickering.

Non-dimmable and dimmable options: 1-10V, Push, and Dali-2.

5-year warranty.

Production time is 5 to 7 working days.

  • Rated Power

    72cm 23w

  • Nominal Voltage

    85-265V

  • CRI - Chromatic Rendiment Index

    80

  • Beam Angle (º)

    120º

  • Luminous Efficiency (Lm/W)

    110 Lm/W

  • IP

    IP54

  • Diode Life Expectancy (H)

    50.000

  • Dimensions (mm)

    72cm -- 1

Brightness calculation
Fast and secure delivery
We offer professional prices for LED lighting

Certificado CE Certificado ROHS
€163.33
No tax
Color temperature: Natural White - 4000K
  • Warm White - 2700K
  • Natural White - 4000K
  • Cold White - 5000k
  • Cold White - 6000K
Measurement: 0.72m
  • 0.72m
  • 1.28m
  • 1.84m
Driver: NO DIMMABLE
  • NO DIMMABLE
  • DIMMABLE 1-10v
  • DIMMABLE PUSH
  • DIMMABLE DALI-2
Production time 5/7 days



Download PDF

Linear Pendant LED Lamp - MUTE - Sound Absorbent - Dimmable - Recycled PET

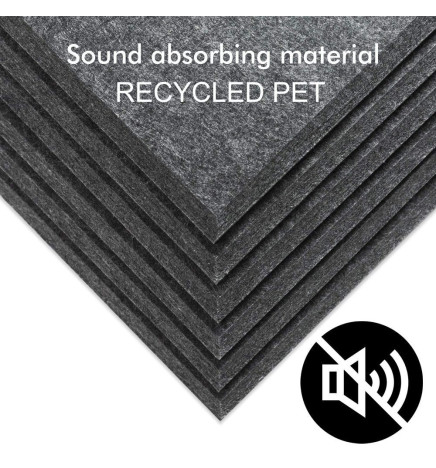

Acoustic linear lamp made of PET felt, a sustainable and sound-absorbing material created from the recycling of 8.4 plastic bottles of 1.5L collected from the sea. PET felt has a wool-like appearance and absorbs ambient noise, improving acoustic comfort.

Recycled PET sound absorber is a highly effective material for improving the acoustic quality of a space, which can be especially useful in workplaces, conference rooms, cinemas, and other places where good sound quality is required. Recycled PET sound absorber is a durable material that can last a long time without losing its acoustic effectiveness.

Recycled PET sound absorber is very effective in reducing noise and improving the acoustics of an environment, which is especially important in spaces where comfortable acoustics are required, such as theaters, concert halls, restaurants, etc.

Sustainability: The advantages of using recycled PET are many, as it is a renewable and sustainable material. By recycling PET, the demand for raw materials is reduced, and the amount of waste going to landfills is decreased. Additionally, PET recycling contributes to the reduction of greenhouse gas emissions and the conservation of natural resources, such as oil.

MATERIALS

  • PET wool (60% from recycled bottles) Manufactured in Europe. Anthracite Gray Color
  • Fire standard: B-s2 d0 - EN 13501
  • Acoustic absorption αw = 0.90 at 1000 Hz
  • Thermolacquered matte black aluminum profiles manufactured in Europe.
  • SMD3040 delivering 5700Lm/meter, (40W/meter)
  • Ecoled 24V electrical power supply

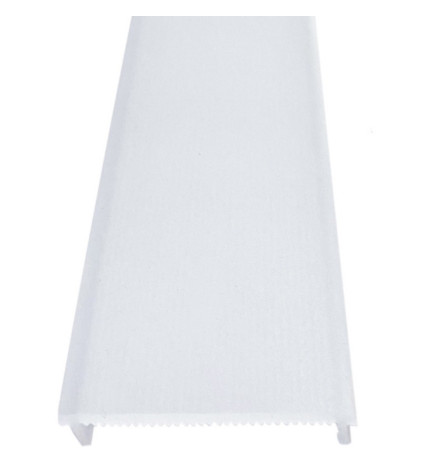

Its design combines high transmittance diffusers that provide great visual comfort and energy efficiency.

The light source of our linear LED luminaire incorporates 192 high-brightness SMD3040 LEDs per meter delivering 5700Lm/meter; the LED diodes incorporate gold wire soldering for a longer lifespan, with steel reinforcement for greater reliability.

The luminaire's power consumption is 29W for 72cm; 52W for 128cm; and 74W for 184cm. The LED luminaire is made of 98% high purity aluminum 6063/6060, with thermal treatment UNE EN 755 and UNE EN 12020-1.

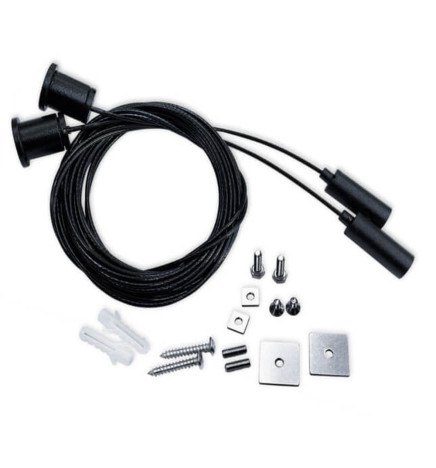

The pendant cable accessory has a length of 2 meters to allow adjustment to the desired height. The luminaire incorporates 2 meters of cable length for easy connection.

The luminaire incorporates a power supply inside the 24-volt aluminum profile from the prestigious Ecoled brand (Maximum quality).

Designed to consume less energy, MUTE provides up to 185Lm/W without flickering throughout its dimming range, avoiding visual fatigue and improving well-being and concentration.

Our linear LED luminaire -MUTE-, being made to measure, offers various options to choose from among warmer, neutral, or cooler lighting, and Anthracite Gray finish. The luminaire is handmade in Europe according to the customer's specifications, which means this product does not allow returns, as it is a made-to-order product.

The production time is 5 to 7 working days.

Options for Linear Pendant LED Lamp - MUTE - Sound Absorbent - Dimmable - Recycled PET

  • Dimmable 1-10V: AC current 110V-240V that allows controlling the intensity of the emitted light from 0 to 100% of all dimmable luminaires.
  • Dimmable Push: light intensity regulation system that allows adjusting the brightness level of the lights through a push-button mechanism.
  • Dimmable Dali-2: constant current output, for LED luminaires from 3-42V and intensity between 600mA and 1100mA.
  • Not dimmable

Uses of the Linear Pendant LED Lamp - MUTE - Sound Absorbent - Dimmable - RECYCLED PET:

  • Shops
  • Exhibitions
  • Industries
  • Offices
  • Homes


At FactorLED, we ensure that our products have QUALITY assurance and offer all the necessary elements for DISTRIBUTION, IMPORT, or WHOLESALE SALE, including the technical data sheet of each LED product.

NODIM-33001-MUTE-072-4K

Data sheet

REFERENCE
MUTE
Rated Power
72cm 23w -- 128cm 46w -- 184cm 70w
Nominal Voltage
85-265V
Colour
2700K - 4000K - 5000K - 6000K
CRI - Chromatic Rendiment Index
80
Construction Material
Aluminiun+PC
Beam Angle (º)
120º
Luminous diodo LED (Lm/W)
180 Lm/W
Luminous Efficiency (Lm/W)
110 Lm/W
Dimmable
YES
Certifications
CE - ROHS
IP
IP54
Diode Life Expectancy (H)
50.000

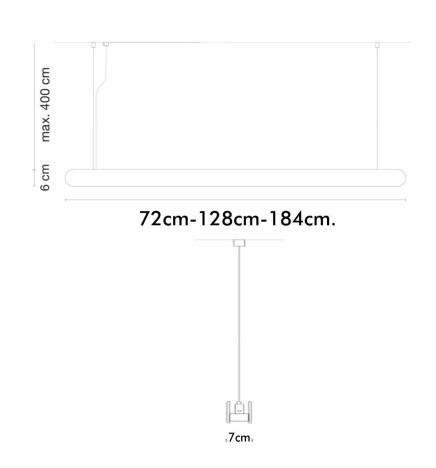

Dimensions (mm)
72cm -- 128cm -- 184cm
Power Factor (PF)
0.97
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
Acoustic absorption αw: 0.90 at 1000 Hz
Glare Rating (UGR)
19
Energy Rating (2021-UE-2019/2015)
A+
Warranty Years
5
