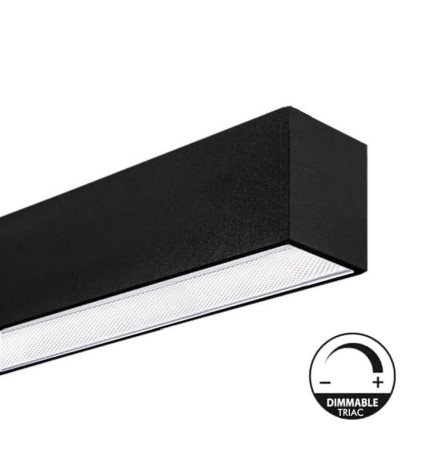

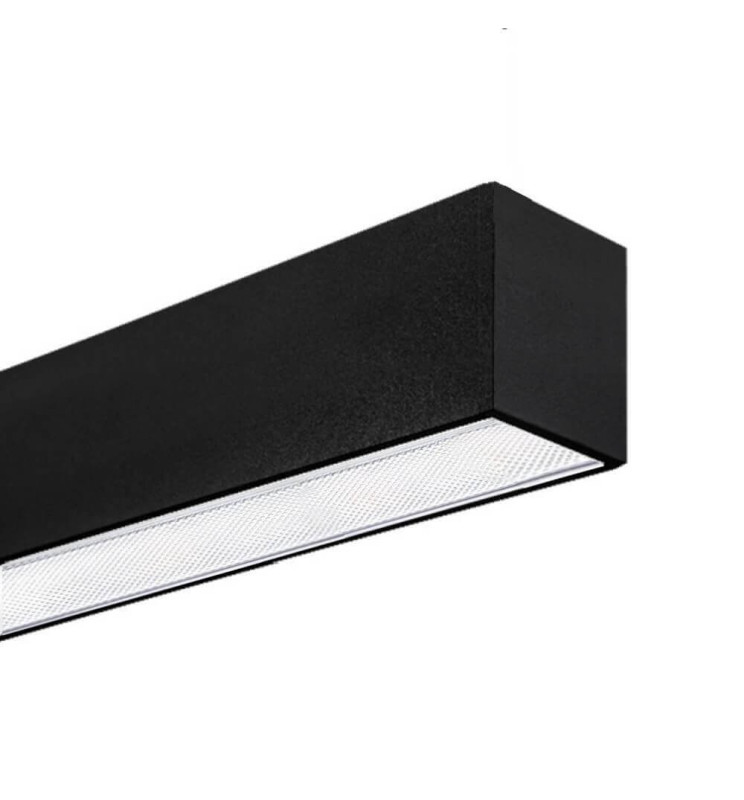

Linear LED Batten - MUNICH MINI BLACK - 0.44m - 0.94m - 1.44m - 1.94m - IP54- Dimmable
R-16003-27K-044-N
Our Professional Linear Luminaire - Dimmable - Munich Mini BLACK - is designed for 24 hours uninterrupted intensive use. The pendant lamp is manufactured in Europe, tailored to your needs. Extruded aluminum of 98% purity, the IP54 light source delivers 1,700 lumens per meter - 140 leds/meter SMD 2835 -.
Dimmable by TRIAC.
5 Year Warranty.
Manufacturing time is 5 to 7 working days.
Our diffuser is MICRO PRISMA TRANSPARENT - UGR19-.
-
9W 0.44m -
-
220-240V
-
80
-
1m 1700Lm
-
120º
-
110 Lm/W
-
IP54
-
40.000
-
L: 0,44m -
Fast and secure delivery
We offer professional prices for LED lighting
€48.01
No tax
Linear LED Batten - MUNICH MINI BLACK
Our LED linear - MUNICH MINI - is a versatile and timeless range, it can be the protagonist in the interior design of a space or adapt to it. Thanks to the various sizes and colors available, it can bring a variety of visual sensations that will define the space from a new perspective.
Available in various lengths and in suspended or ceiling-mounted versions, to adapt to different needs and installation heights. The luminaires, up to 2 meters long, become beautiful traces of light that shape the space.
The linear LED -MUNICH MINI- draws homogeneous lines of light that adapt to a great variety of spaces with a minimum visual impact, solving both general lighting needs and the floodlighting of vertical planes.
Its design combines high transmittance diffusers that provide great visual comfort and energy efficiency.
Our professional linear LED luminaire has a high duration light source, using only 17% of the nominal power of its LED diodes (0.6W diodes working at only 0.1W), so that even if they work 24 hours without interruption, the light source does not heat up, working efficiently and effectively, and thus extending the life of the luminaire up to 50,000 hours.
The light source of our linear LED luminaire incorporates 140 Leds/meter of high brightness SMD2835 delivering 1700lm/meter; the LED diodes incorporate double gold wire soldering for longer life and reliability. Very low flikler level.
Our luminaire can also be used in high humidity areas because its IP54 light source is insulated with high quality silicone (UC Class F1 UL94 and VOC free), which prevents yellowing and cracking over the years.
The luminaire is connected directly to 220v, requiring neither power supply nor bridge rectifier.
The consumption of the luminaire is: 9W for 44cm; 19W for 94cm; 28W for 144cm; and 38W for 194cm.
The LED luminaire is made of high purity (98%) 6063/6060 aluminum, with UNE EN 755 and UNE EN 12020-1 heat treatment.
The lacquering of the luminaire is of high resistance and quality and is textured Black and White - Qualicoat -, and anodized in silver - Qualanod - with 15 microns of thickness for a long useful life.

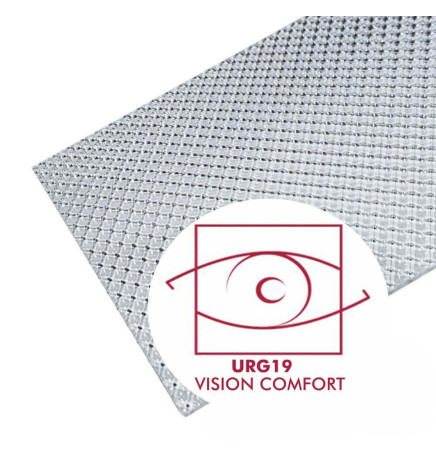

The luminaire, upon request by email, can be manufactured with several diffuser options: Opal, Black and White, Micro Prism transparent (UGR<19), Micro Prism Opal (UGR<17).

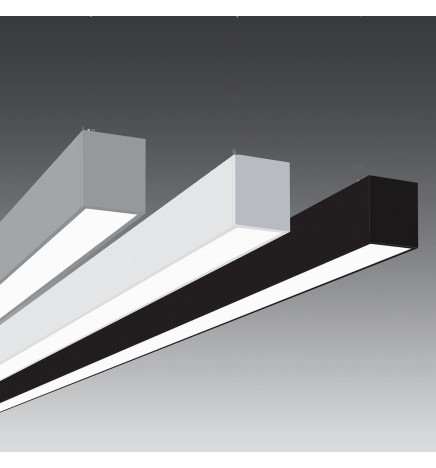

Our linear LED luminaire -MUNICH MINI- as it is custom made, offers several possibilities to choose between a warmer, neutral or cooler lighting, and silver, white and black anodized finishes.
The luminaire is handmade in Europe to the desired size of the customer, so this product does not admit returns, as it is a custom-made product.
The manufacturing time is 5 to 7 working days.

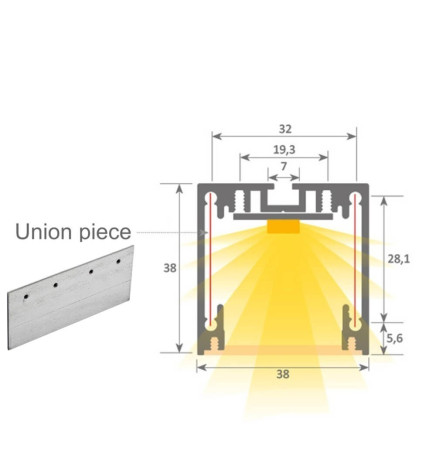

Our linear luminaire can be joined and made into a continuous effect luminaire with the corresponding accessory.

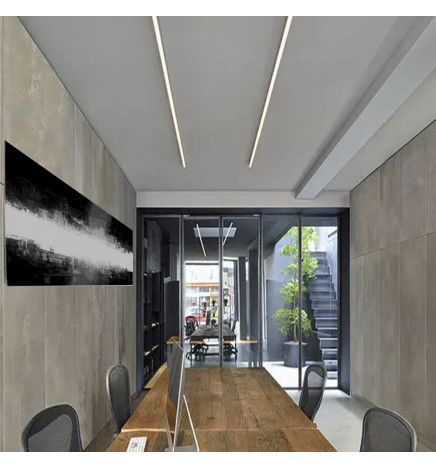

Uses of the Linear LED Strip Light - MUNICH MINI BLACK
- Stores
- Exhibitions
- Industries
- Offices
- Homes
In FactorLED we ensure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.
R-16003-27K-044-N
Data sheet
- R-16003-N
- 9W 0.44m -19W 0.94m - 28W 1.44m - 38W 1.94m
- 220-240V
- 80
- Aluminiun+PC
- 1m 1700Lm - 2m 3200Lm
- SMD2835 - 140 LEDs/M PCB 12mm
- 120º
- 160 Lm/w
- 110 Lm/W
- TRIAC 40%-100%
- CE - ROHS
- IP54
- 40.000
- L: 0,44m - 0.94m - 1,44m - 1.94m
- 0.91
- 50/60Hz
- -20°C ~ +55°C
- 100.000
- 0,2s
- A+
- G
- 5
REFERENCE
Construction Material
Number & Type of LEDs
Luminous diodo LED (Lm/W)
Dimmable
Certifications
Power Factor (PF)
Frequency (Hz)
Temperature Range (ºC)
On/Off Cycles
Starting Time (s)
Glare Rating (UGR)
Energy Rating (2021-UE-2019/2015)
Energy Rating (2023 - UE-2019/2015)
