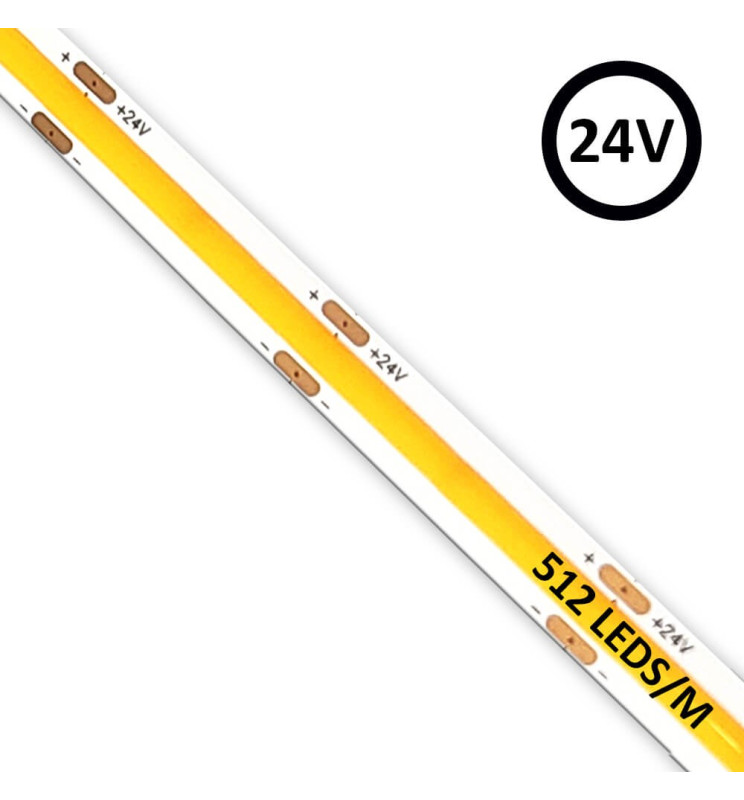

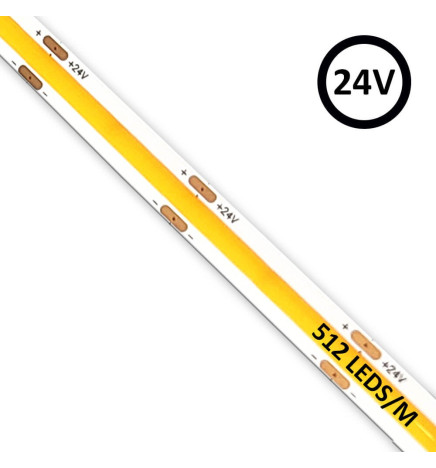

LED Strip COB 24V | 512 LED/m | 5m | FLIP CHIP | 1650Lm | 11W/M | CRI90 | IP20 | SPECIAL FOR FOOD

Reference: SP512D11W-90960-CARNE

COB LED strip 11W at 24V and 5 metres with adhesive tape for easy installation. Designed for indoor installation. Perfect for LIGHTING all types of spaces. It requires a power supply and it is advisable to install it on an aluminium profile to achieve good heat dissipation.

512 LEDs / m. FLIP CHIP high power.

Butchers, fishmongers and bakers.

11W
24V DC
90
180º
100Lm/W
IP20
100.000
5m. x 10mm

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€33.45

No tax

Feeding: White meats

Bakery
Fishmonger
White meats

Download PDF

LED Strip COB 24V | 512 LED/m | 5m | FLIP CHIP | 1650Lm | 11W/M | CRI90 | IP20 | SPECIAL FOR FOOD

Our 24 Volt 11W COB LED strip is self-adhesive for easy installation. The LED strip requires a constant current (DC) direct current power supply to power it. The LED strips can be dimmed (-Dimmables-).

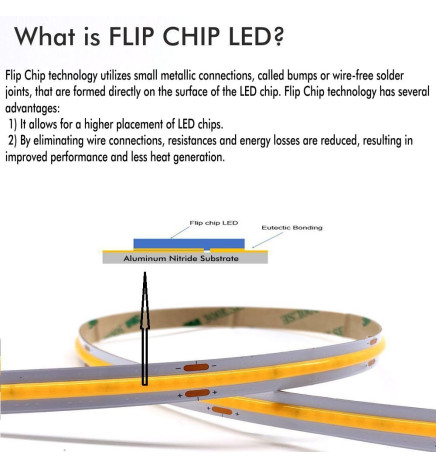

This COB Led Strip has 512 FLIPCHIP chips per meter, with which we achieve a uniform light throughout the strip, in addition to having higher Lm / W performance than traditional SMD LEDs

With its CRI>90 we make the colors look very real. This makes this led strip perfect to illuminate spaces where we want the colors to look perfect.

The LED strip can be cut and joined by the spaces indicated in it (union copper area), always following the relevant instructions, (be careful that the welder maintains a brief contact with the strip when welding it, since excessive heat will damage the conductor).

It is recommended that any type of installation of this type does not exceed 10 meters to avoid voltage drops of the direct current that powers the LED strips, although you also have the option of feeding the strip from both ends, a more recommended option if you go place 20 continuous meters. For the installation of more continuous meters, you will need the installation of signal amplifiers for the LED strip.

In its placement, to increase the useful life of the LED strip, it is advisable to use the double-sided heat dissipating tape, as well as to place it on an aluminum profile, for a correct management of the heat of the LED strip itself.

You can find on our website both signal amplifiers, such as dissipative tape, connection accessories, 12-24v power supplies, as well as aluminum profiles.

The LED strips are ideal to illuminate any type of corner or element of your business and your home, thanks to its flexibility. It can be said that one of its main advantages is the great versatility of uses that it can be given, since they can be installed in any area and adapt to any corner, and thus be placed in any position, due to its adaptable linear design.

Uses of LED Strip COB 24V | 512 LED/m | 5m | FLIP CHIP | 1650Lm | 11W/M | CRI90 | IP20 | SPECIAL FOR FOOD

In libraries
Bars
Home
Restaurants
Rooftops
Shops

In FactorLED we ensure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

Reference SP512D11W-90960-CARNE

Data sheet

REFERENCE: SP512D11W
Rated Power: 11W
Nominal Voltage: 24V DC
CRI - Chromatic Rendiment Index: 90
Number & Type of LEDs: COB
Beam Angle (º): 180º
Luminous diodo LED (Lm/W): 110 Lm/W
Luminous Efficiency (Lm/W): 100Lm/W
Dimmable: YES
Certifications: CE - ROHS
IP: IP20
Diode Life Expectancy (H): 100.000
Dimensions (mm): 5m. x 10mm
Temperature Range (ºC): -20°C ~ +55°C
On/Off Cycles: 100.000
Energy Rating (2021-UE-2019/2015): A+
Energy Rating (2023 - UE-2019/2015): F
Warranty Years: 3

Download
