LED Strip 24V RGB | 120xLED/m | 5m | SMD3535 | 560Lm | 15W/M | IP20
SP120D15W-RGB-91762
PROFESSIONAL RGB LED strip 15W per meter of colors at 24V and 5 meters with adhesive tape for easy installation. Designed for indoor installation. Perfect for DECORATE in all types of spaces. Requires power supply and it is convenient to install it on an aluminum profile for good heat dissipation.

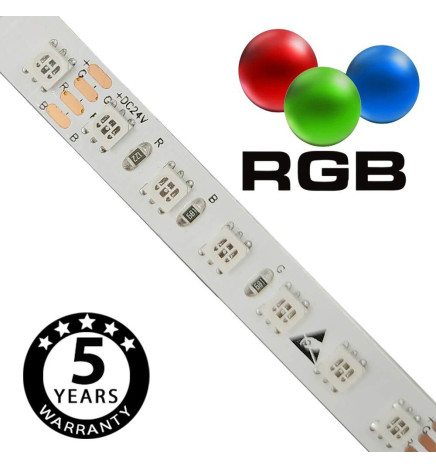

5 YEARS WARRANTY. 24 HOURS USE.
-
15W/M
-
24V DC
-
80
-
120º
-
IP20
-
100.000
-
5m. x 8mm
Fast and secure delivery
We offer professional prices for LED lighting
€25.47
No tax
LED Strip 24V RGB | 120xLED/m | 5m | SMD3535 | 560Lm | 15W/M | IP20

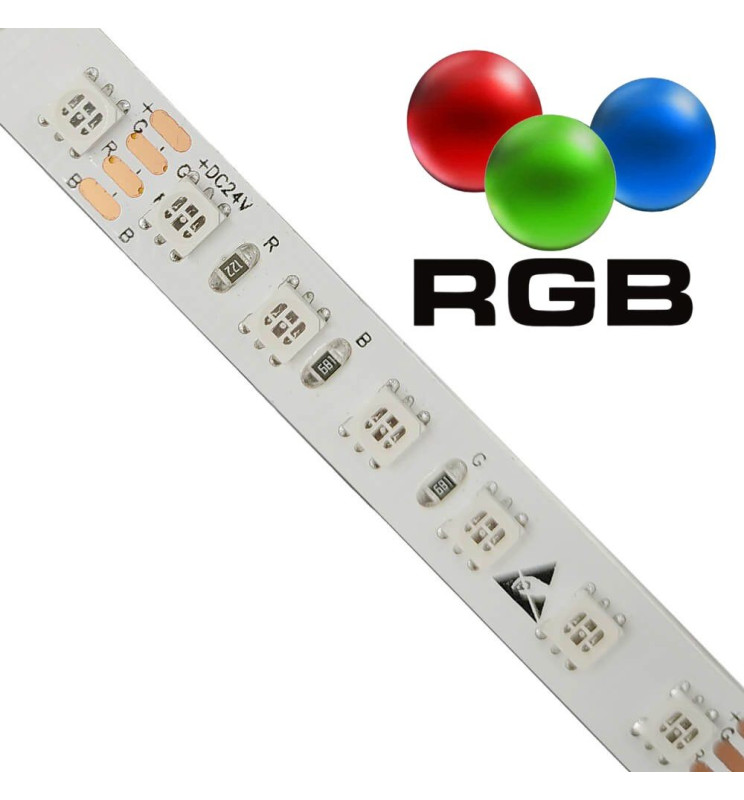

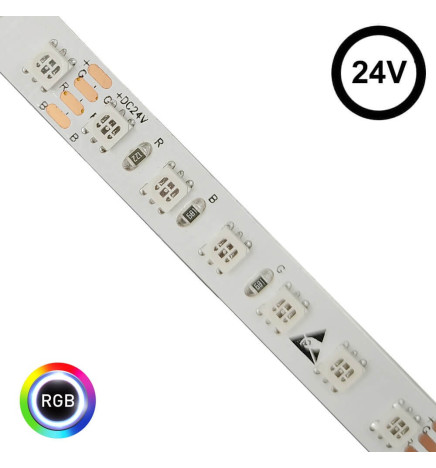

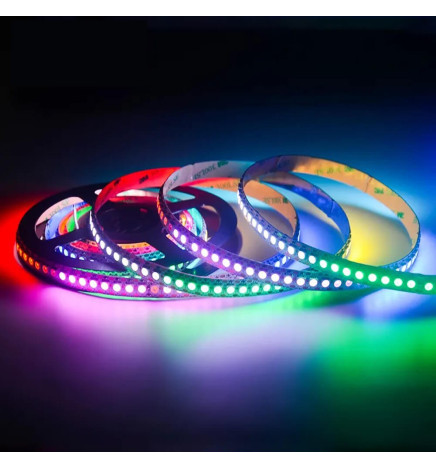

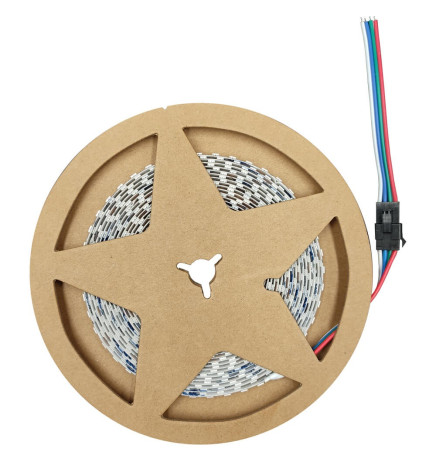

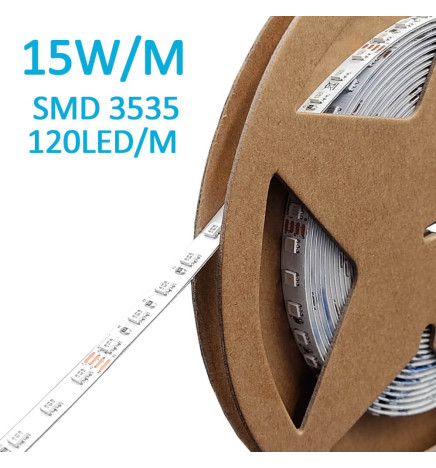

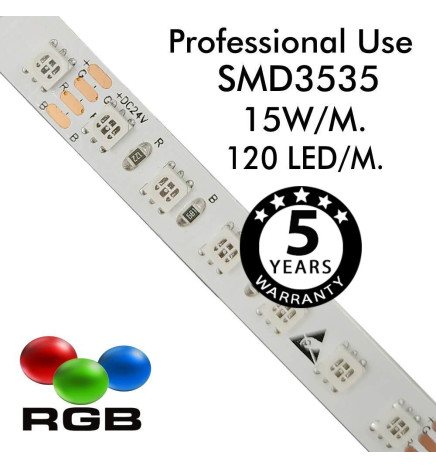

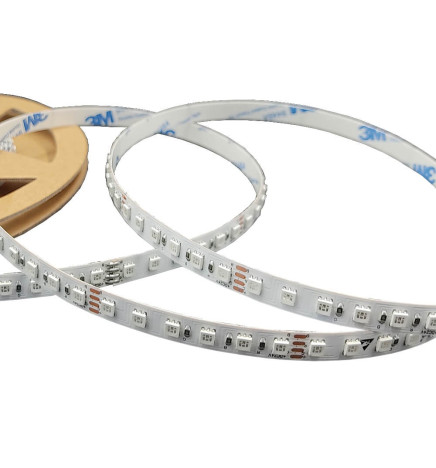

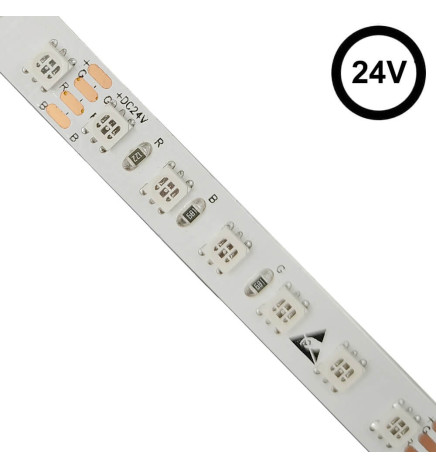

This 24V DC 120LED/m RGB IP20 LED strip light has a length of 5 meters and integrates high efficiency SMD3535 technology that consumes only 15 watts per meter. The bright and colorful light it emits is spread at an angle of 120°.

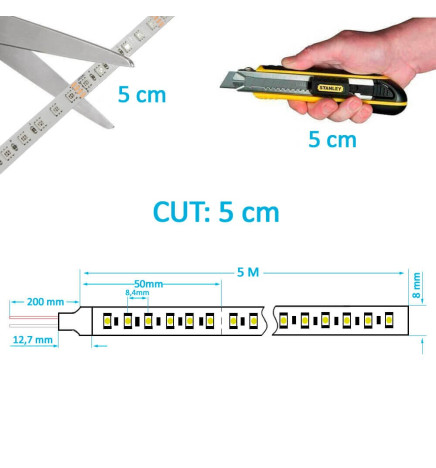

The 24V RGB LED strip can be cut into 5cm lengths, which allows you to adjust the installation in detail.
Our LED strip is self-adhesive for easy installation. The LED strip requires a constant current direct current (DC) power supply to power it. The LED strips are dimmable (-Dimmable-).
The LED strip can be cut and joined by the spaces indicated on the strip (copper junction area), always following the relevant instructions (be careful that the soldering iron keeps a brief contact with the strip when soldering, as excessive heat will damage the conductor).
It is recommended that any type of installation of this type does not exceed 10 meters to avoid voltage drops of the direct current that feeds the LED strips, although you also have the option of feeding the strip at both ends, a more advisable option if you are going to place 20 continuous meters. For the installation of more continuous meters, you will need the installation of signal amplifiers for the LED strip.
In its placement, to increase the life of the LED strip, it is advisable to use the double-sided heat sink tape and place it on aluminum profile, for proper heat management of the same LED strip.
You can find on our website both signal amplifiers, such as heatsink tape, junction accessories, 12-24v power supplies, as well as aluminum profiles.

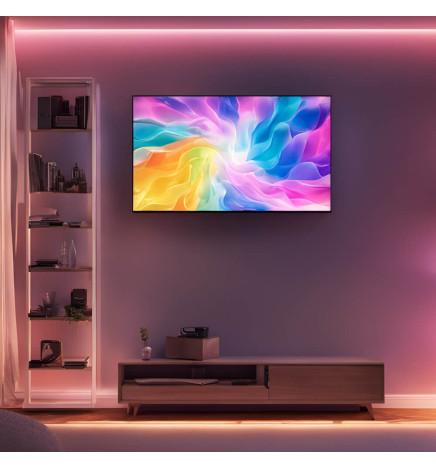

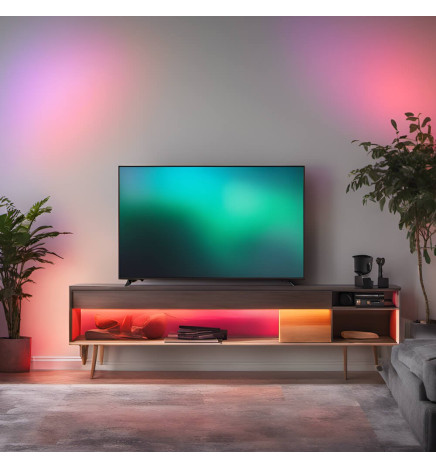

LED strips are ideal for lighting any kind of corner or element of your business and home, thanks to its flexibility. It can be said that one of its main advantages is the great versatility of uses that can be given, since they can be installed in any area and adapt to any corner, and thus be placed in any position, for its adaptable linear design.
Uses of the 24V RGB LED Strip | 120xLED/m | 5m | SMD3535 | 560Lm | 15W/M | IP20:
- In libraries
- Bars
- Home
- Restaurants
- Covers
At FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.
SP120D15W-RGB-91762
Data sheet
- SP120D15W-RGB-91762
- 15W/M
- 24V DC
- RGB
- 80
- PCB
- SMD3535 RGB
- 120º
- YES
- CE - ROHS
- IP20
- 100.000
- 5m. x 8mm
- 50/60Hz
- -20°C ~ +55°C
- 100.000
- Cut: 5cm
- A+
- F
- 5
REFERENCE
Colour
Construction Material
Number & Type of LEDs
Dimmable
Certifications
Frequency (Hz)
Temperature Range (ºC)
On/Off Cycles
Other Information
Energy Rating (2021-UE-2019/2015)
Energy Rating (2023 - UE-2019/2015)
Warranty YearsYou might also like
-
