Motion detector Mini 220-240v

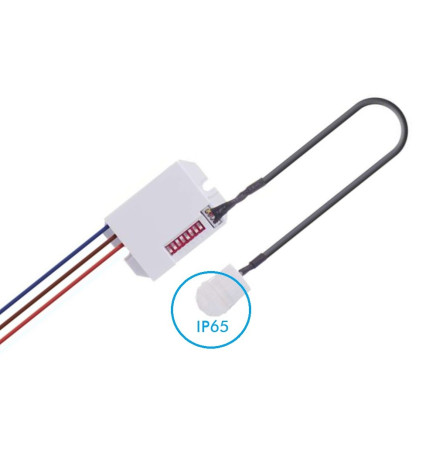

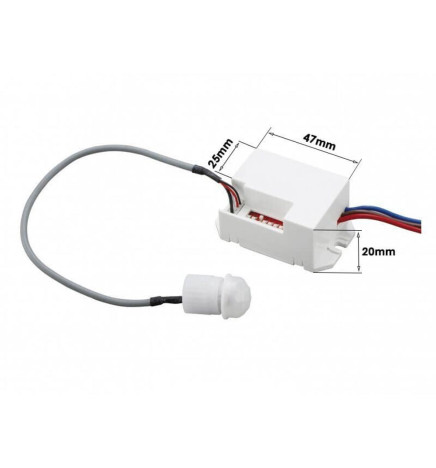

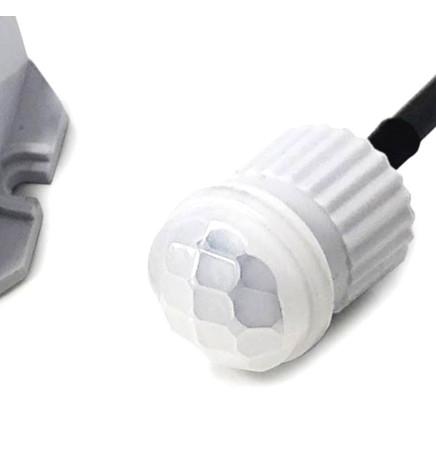

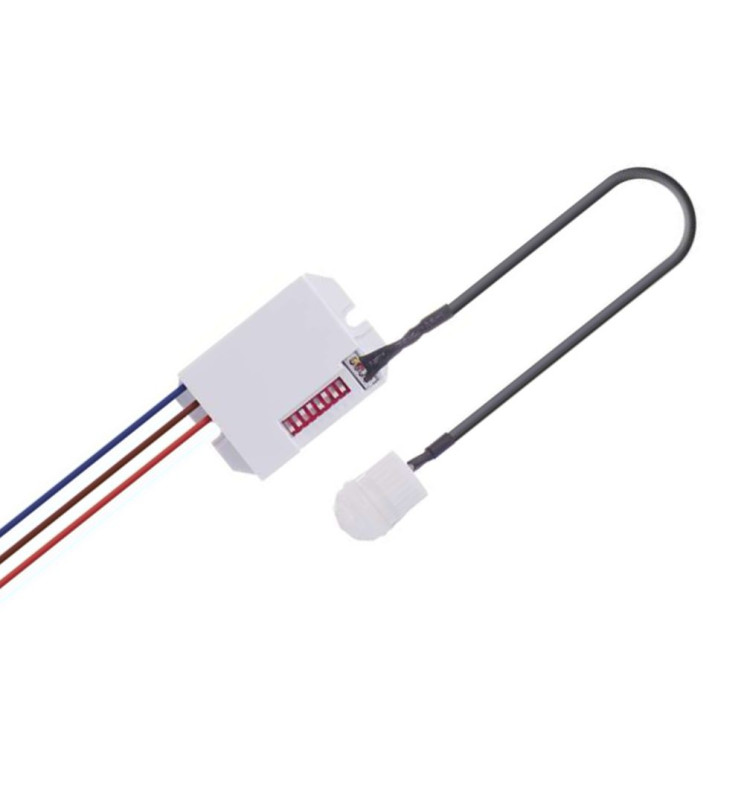

Small motion detector only 2 centimeters in diameter, which makes it go completely unnoticed. Adaptable ceiling, LED tray or any type of lighting fixture due to its small size. The external area of the detector (capsule of the infrared) can be used in areas wet and outside is IP65.

This product is a versatile and functional device that features a light sensor, sensitivity adjustment, and time delay. It is designed to offer comfort and efficiency in a variety of environments.

• The integrated light sensor allows the device to automatically detect the amount of light present in its surroundings. This ensures intelligent adaptation to different lighting conditions, making it suitable for both indoor and outdoor use.
• The sensitivity adjustment is another important feature of this product. It allows the user to customize the response of the light sensor to different levels of illumination, ensuring accurate and reliable detection.
• The time delay is another highlighted characteristic. It allows the user to set a specific time interval before the device responds to a change in lighting. This is useful in situations where a delayed response time is desired, to avoid accidental activations in response to rapid changes in light.

In summary, this product with a light sensor, sensitivity adjustment, and time delay offers precise and customizable light detection. Its ability to adapt to different lighting conditions and its flexibility in adjustment make it suitable for a variety of environments and needs.

SPECIFICATION:

•          Ambient Light: 10LUX/2000LUX (choice)
•          Time Delay: 5s, 30s, 1min, 3min, 5min, 8min (choice)
•          Rated Load: Max.800W -- Incandescent - 200W LED
•          Detection Moving Speed: 0.6-1.5m/s
•          Detection Range: 120º /360º
•          Detection Distance: 3m/6m (choice) (<24ºC)
•          Working Temperature: -20- +40ºC
•          Working Humidity: <93%RH
•          Power Consumption: approx 0.5W

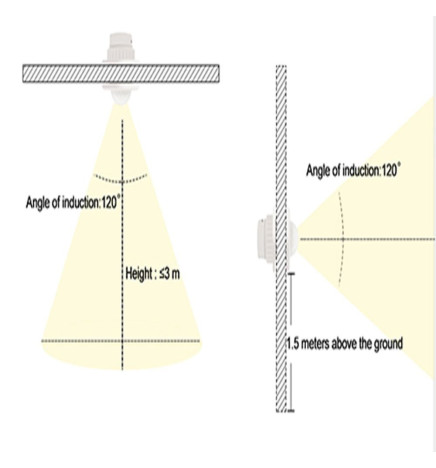

•          Installation Height: 1.8-2.5m (wall mounting)
•          Installation Height: 2.2-4m (ceiling mounting).

FUNCTION:

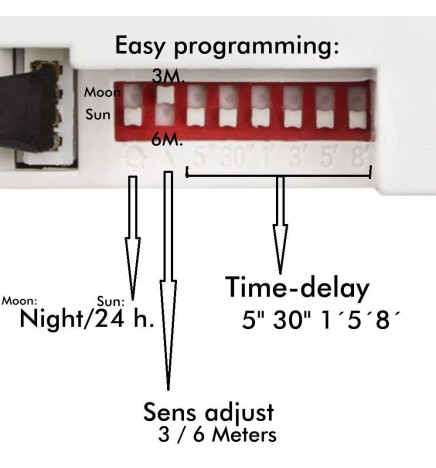

► Can identify day and night automatically: when turn to SUN ((below is SUN)), it will work day 'and night, when turn it to MOON (above is MOON), it will only work in the ambient light less tan 10LUX. As for adjustment, please refer to testing way

► SENS adjustable: it can be adjusted according to using location. The detection distance of low sensitivity could be only 3 meters and high sensitivity could be 6 meters which fits for large room.

► Time-Delay is added continuously: When it receives the second induction signals within the first induction, it will restart to time from the moment

 INSTALLATION ADVICE:

As the detector responds to changes in temperature, avoid the following situations:

► Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc.

► Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, lights etc.

► Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants, etc

 TEST:

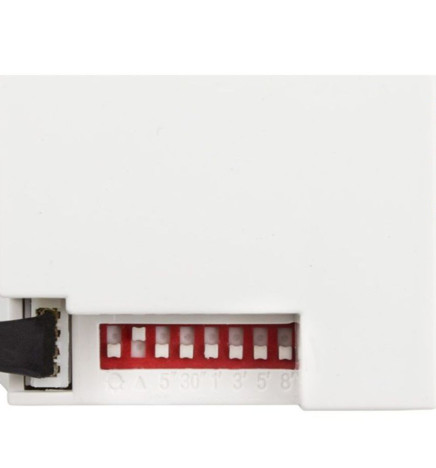

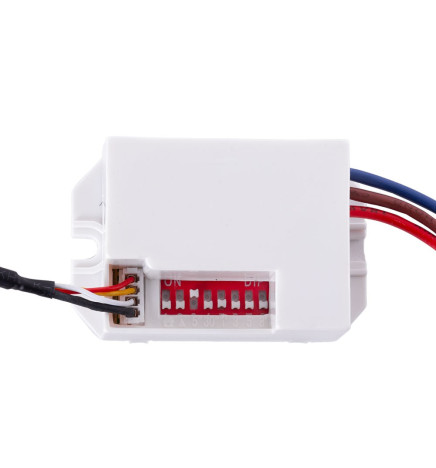

► Slide the LUX switch to SUN position {below is SUN). Slide the SENS switch to maximum (below is the maximum).  Adjust the TIME switch, slide 5" (seconds) switch to ON position. (slide upwards).

► Switch on the power; the sensor and its connected lamp will have no signal at the beginning. After Warm-up 30sec, the sensor can start work .lf the sensor receives the induction signal, the lamp will turn on. While there is no  another induction signal any more, the load should stop working within 5”seconds and the lamp would turn off .

► Slide the LUX knob above on the minimum (Moon). If the ambient light is more than 10LUX, the sensor would not work and the lamp stop working too. If the ambient light is less than -3LUX (darkness), the sensor would work. Under no induction signal condition, the sensor should stop working within 5” seconds.

Note: when testing in daylight, please turn LUX knob (SUN) position, otherwise the sensor lamp could not work! If the lamp is more than 60W, the distance between lamp and sensor should be 60cm at least.

SOME PROBLEM AND SOLVED WAY

►The load does not work:

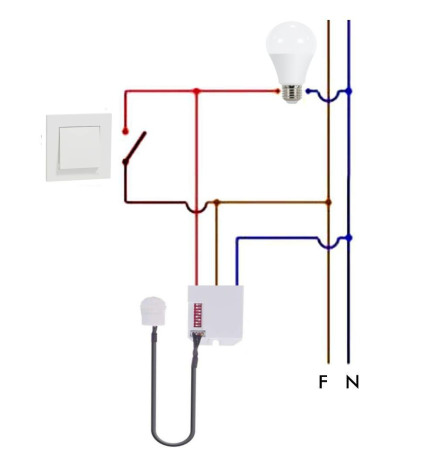

1.              Please check if the connection of power source and load is correct.
2.             Please check if the load is good.

c. Please check if the settings of working light correspond to ambient light.

►The sensitivity is poor:

1.              Please check if there is any hindrance in front of the detector to affect il to receive the signals.
2.             Please check if the ambient temperature is too high.
3.              Please check if the induction signal source is i the detection field.
4.             Please check if the installation height corresponds to the height required in the instruction.
5.             Please check if the moving orientation is correct.

►The sensor can not shut off the load automatically:

1.              Please check if there is continual signal in the detection field.
2.             Please check if the time delay is set to the maximum posilion
