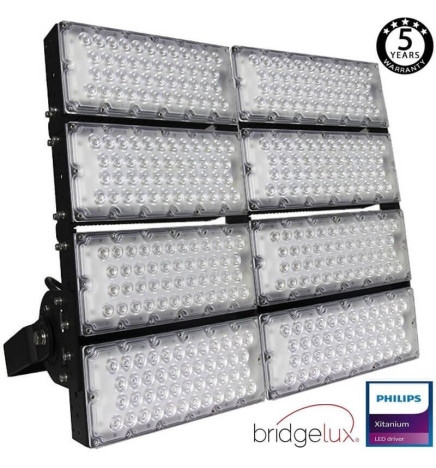

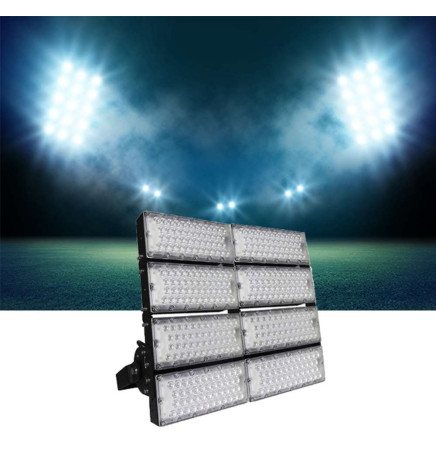

LED Floodlight 960W - STADIUM MATRIX - Philips Xitanium Driver - SMD5050 Bridgelux 240Lm/W High Brightness
0000M960W90-5K

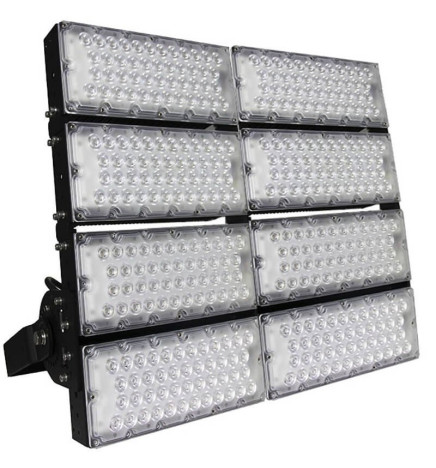

STADIUM aluminum LED Floodlight 960W with SMD 5050 of 12 cores with BRIDGELUX chip, thus achieving a great performance due to its modular design. This IP65 floodlight includes Philips driver and is designed to reach great distances thanks to its angle. Perfect for sports stadiums, port areas, high-rise towers and parking lots.
-
960W
-
85-265V
-
70
-
153600 Lm
-
20º - 40º
-
160 Lm/w
-
IP65-Outdo
-
50.000
-
615x500x33
Fast and secure delivery
We offer professional prices for LED lighting
€915.66
No tax
LED Floodlight 960W - STADIUM MATRIX - Philips Xitanium Driver - SMD5050 Bridgelux 240Lm/W High Brightness
The technical specifications of this type of 960w LED floodlight (120w each module) make it a spotlight capable of effectively illuminating any space at great distances without reducing its luminosity.

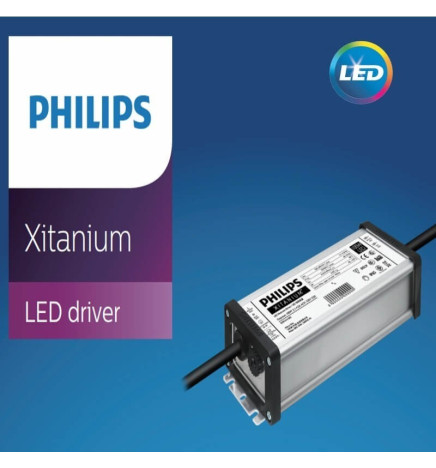

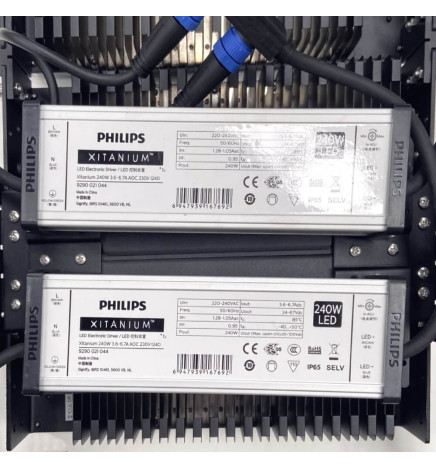

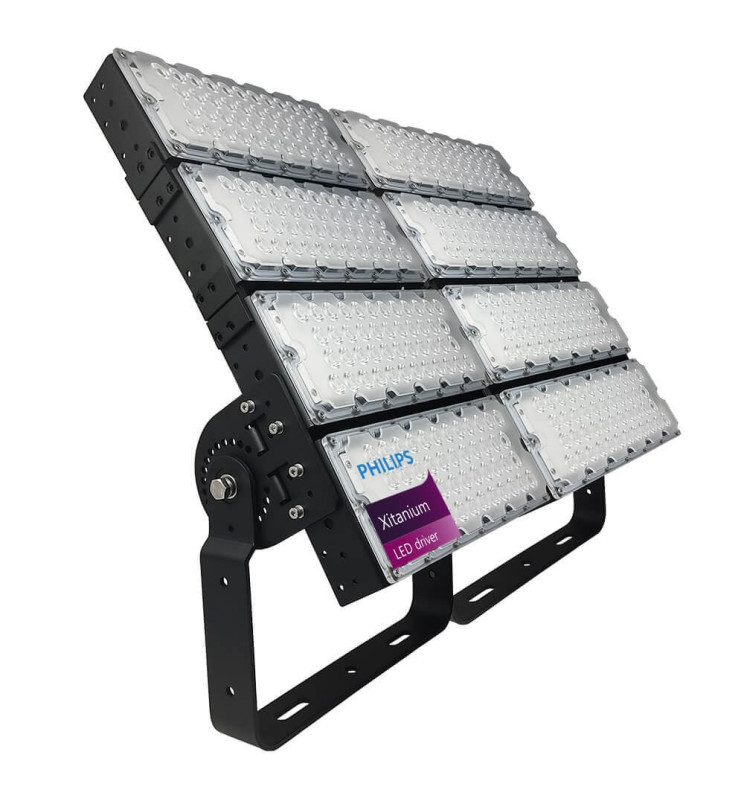

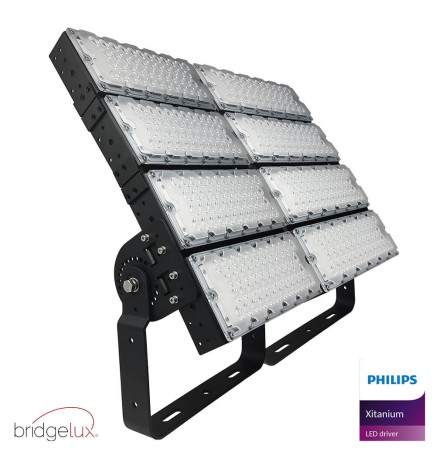

The STADIUM sports floodlights is composed of 2 modules of 120w and PHILIPS XITANIUM Driver to feed them. If we want to increase the power we must acquire the modules in 2, since the driver is prepared for it. This way we can have projectors of 240W - 480W - 960W... In addition to the modules and the driver, it also has the plate of subjection of the driver and the arm to be able to fix it to the wished surface. In addition it is orientable, with which we manage to direct the light towards where we want.

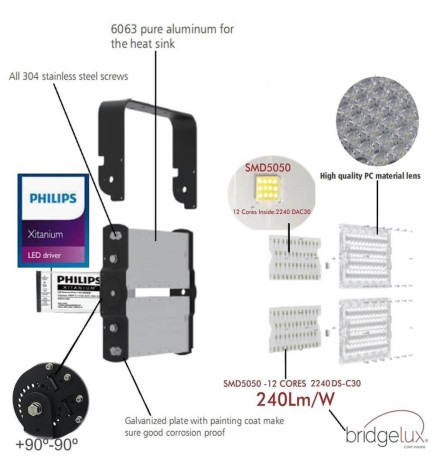

The MATRIX spotlight stands out for its SMD 5050 with 12 cores with BRIDGELUX chip (USA) that provides the efficiency and reliability that any type of outdoor or sports lighting market demands.
Thanks to the 20°, 40° and 90° angled lenses, the required Luxes are achieved where they are needed.
With its high power 5050 diode, it achieves a diode efficiency of 240Lm/w covering all the user's needs.

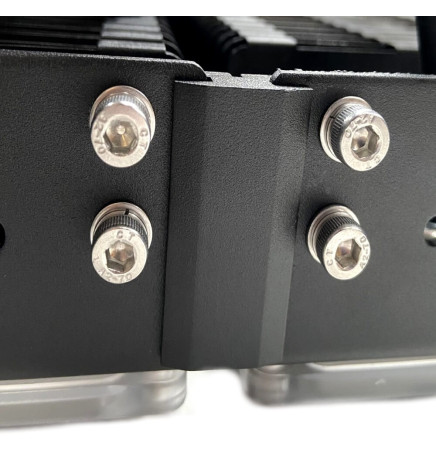

It has been manufactured with 100% 6063 aluminium, both in its casing and in its handles, making it a very lightweight product for easy transport and installation. In addition, its paint is anti-corrosive, so it has a great duration and reduces all types of oxidation.
With all its LED technology and the latest market developments, it achieves savings of up to 80% in energy consumption. It has a 5 year guarantee.
It has a 5 year guarantee.
Uses of the 960W LED Floodlight STADIUM MATRIX Bridgelux Chip - Driver Philips

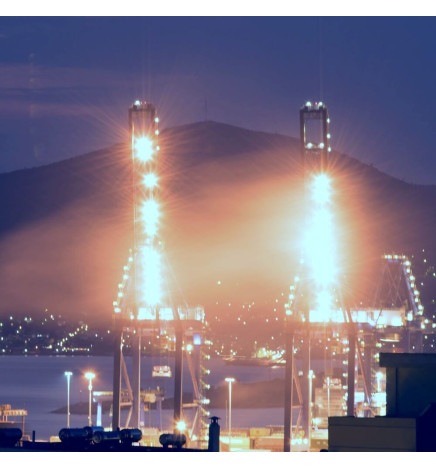

- Port Areas
- Large parking areas

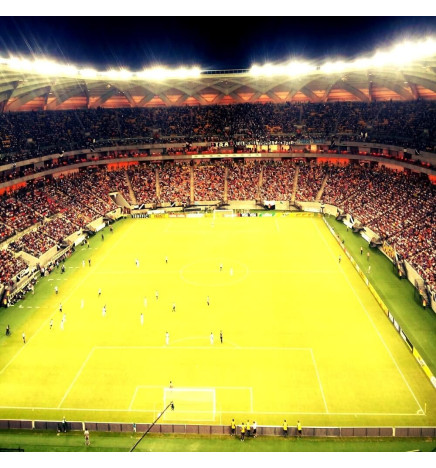

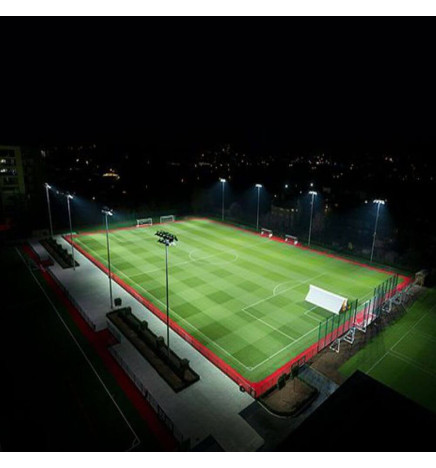

- Football Fields
- Sports stadiums
- Airports
- Department stores

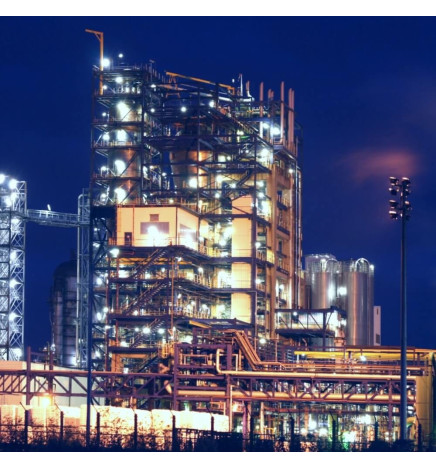

- Production factories
In FactorLED we assure that our products have QUALITY guarantee and offer all the necessary elements for the DISTRIBUTION, IMPORT or WHOLESALE, including the technical card of each LED product.
0000M960W90-5K
Data sheet
- MATRIX-960W
- 960W
- 85-265V
- 5000K
- 70
- Aluminiun+PC
- 153600 Lm
- SMD 5050-12D BRIDGELUX CHIP 2240 BXCD DS-C47
- 20º - 40º - 90º
- 240 Lm/W
- 160 Lm/w
- CE - ROHS
- IP65-Outdoor
- 50.000

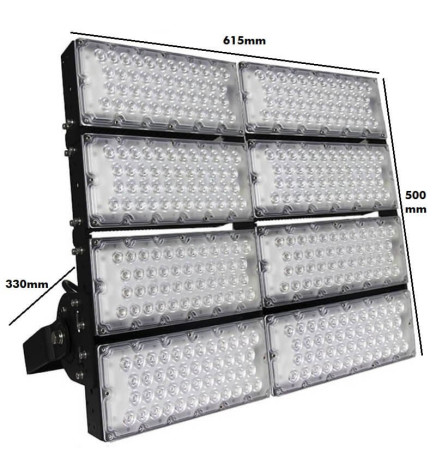

- 615x500x330mm
- 0,94
- 50/60Hz
- -20°C ~ +55°C
- 100.000
- 0,2s
- THIS PRODUCT IS DELIVERED DISASSEMBLED
- IK10
- PHILIPS XITANIUM 5 YEARS
- A++
- 5
REFERENCE
Colour
Construction Material
Number & Type of LEDs
Luminous diodo LED (Lm/W)
Certifications
Power Factor (PF)
Frequency (Hz)
Temperature Range (ºC)
On/Off Cycles
Starting Time (s)
Other Information
Impact Protection (IK)
Driver included
Energy Rating (2021-UE-2019/2015)
