On sale!

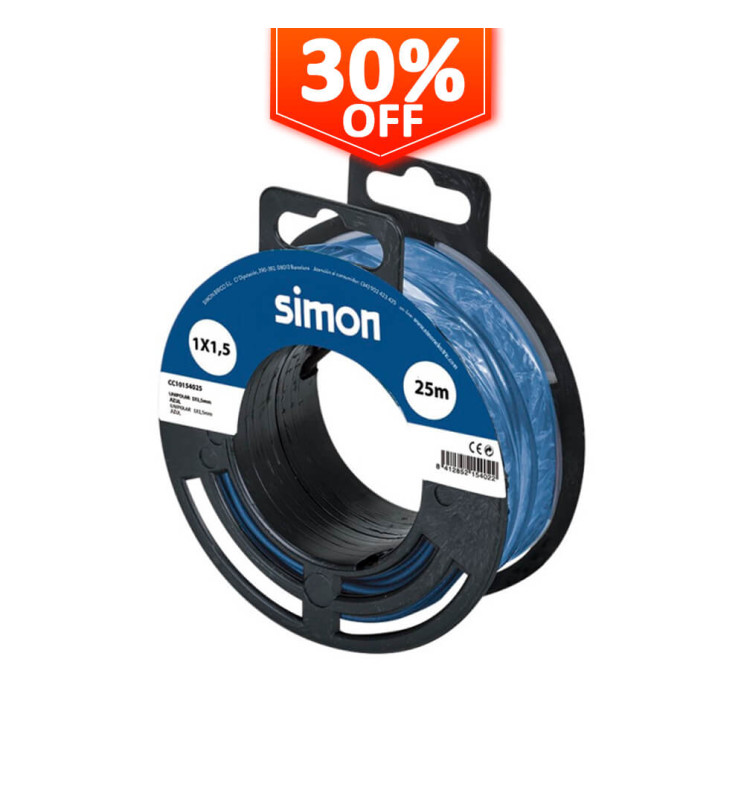

Electric Cable - Unipolar - H07V-K - 1X1,5mm

Reference: CC10154025

Unipolar cable of 1.5mm section without sheath with PVC insulation built according to the EN-50525-2-31 standard. Installations in ducts located on surfaces or embedded or in similar closed systems. They are also suitable for fixed or protected mounting of luminaires.

It is suitable for protected installations, lighting and command and control switchgear. They are easy to install thanks to their super-slip insulation and great flexibility.

450V / 750
10.000mm

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€6.99

No tax

Measurement: 25m

Colour: blue

Black
blue
Brown
Yellow-Green

Download PDF

Description
Product Details

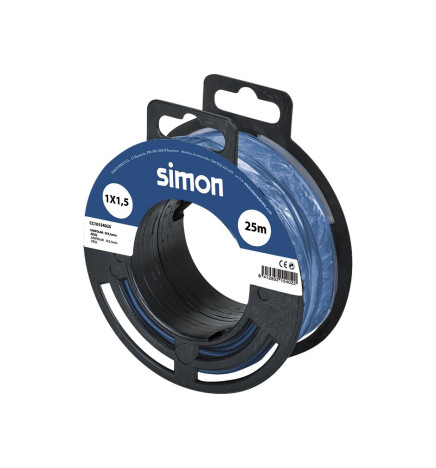

Electric Cable - Unipolar - H07V-K - 1X1,5mm

Unipolar 1.5mm cable without sheath with PVC insulation built according to the EN-50525-2-31 standard.

Installations in ducts located on surfaces or embedded or in similar closed systems. They are also suitable for fixed or protected mounting of luminaires.

Conductor: Flexible polished copper class 5 according to UNE EN 60228. Insulation: PVC type TI 1 according to UNE EN 50363-3.

Operating voltage: 450 / 750V
Test voltage: 2,500 V
Serving temperature: -15 to 70 ºC

These cables are easy to install thanks to their super slippery insulation and great flexibility.

Reference CC10154025

Data sheet

REFERENCE: CC1015
Nominal Voltage: 450V / 750V
Construction Material: PVC + Kupfer
Dimensions (mm): 10.000mm
Temperature Range (ºC): -15º +70º
Warranty Years: 10
