LED Strip COB 220V | CUSTOM CUT | 640 LED/m | 50m | FLIP CHIP | 1650Lm | 15W/M | CRI90 | IP67 | Cut 100cm

Reference: SP640D15W50M-90687-57K-UND

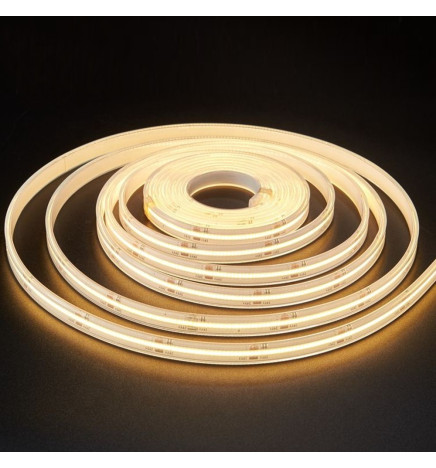

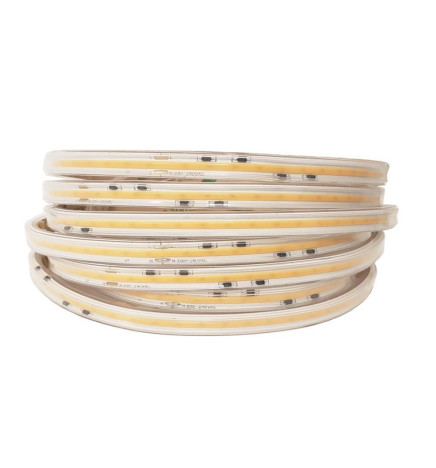

COB LED strip 15W at 220V and 50 metres with adhesive tape for easy installation. Designed for indoor installation. Perfect for LIGHTING all types of spaces. It requires a power supply and it is advisable to install it on an aluminium profile to achieve good heat dissipation.

640 LEDs / m. FLIP CHIP high power.

CUT EVERY 1 METER.
1 UNIT = 1 METER OF LED STRIP (SELECT THE METERS YOU NEED) MAXIMUM 50 METERS

1 CONNECTOR (KIT42004) PER ORDER. NOT PER METRE OF CUT-OFF.

15w
220-240V
90
1 Meter: 1
180º
100Lm/W
IP67-Outdo
35.000
50m * H4.5

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€16.60

No tax

Color temperature: 5700K - Cold White

5700K - Cold White

Measurement: 1m

Download PDF

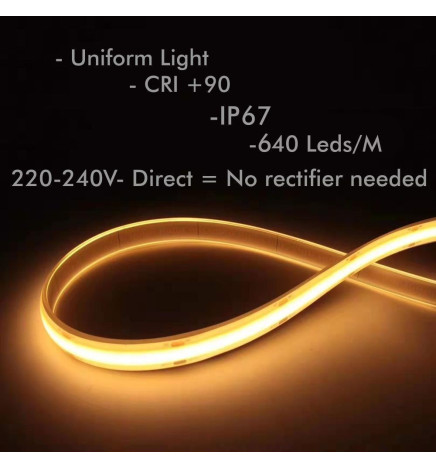

LED Strip COB 220V | 640 LED/m | 50m | FLIP CHIP | 1650Lm | 15W/M | CRI90 | IP67

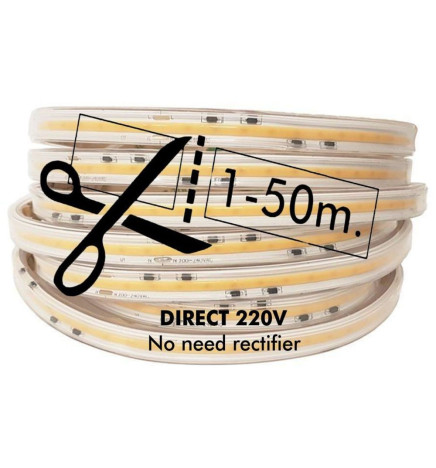

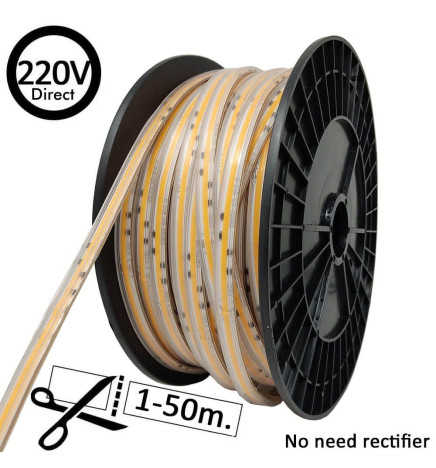

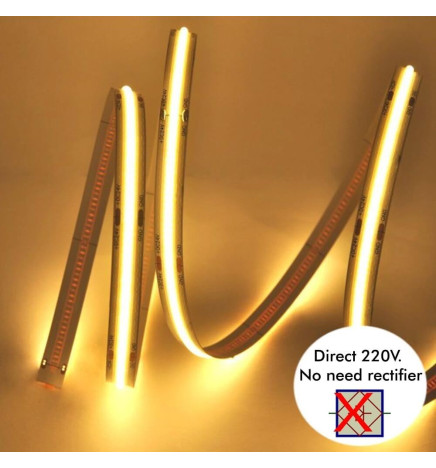

Our direct 220V COB LED strip with adhesive tape to facilitate its installation DOES NOT require a power supply or current rectifier cable. DIRECT CURRENT 220V.

The 220V LED strips can be dimmed (-Dimmables-) by TRIAC, their regulation allows from 30% to 100% of the light intensity.

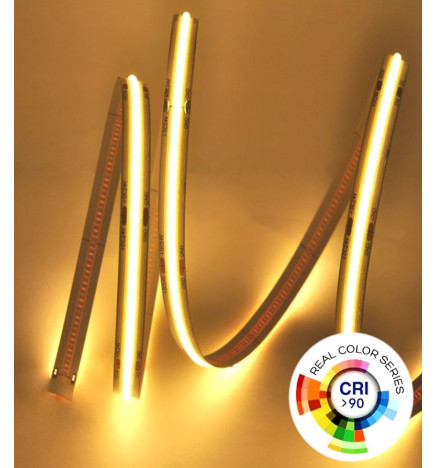

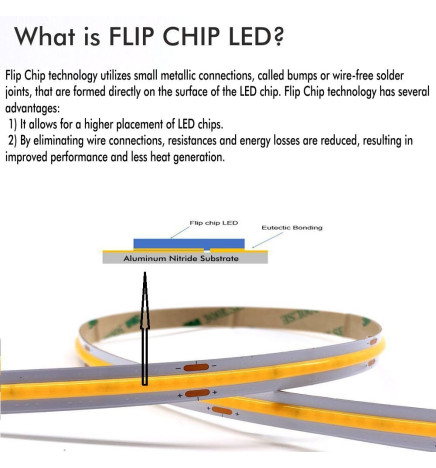

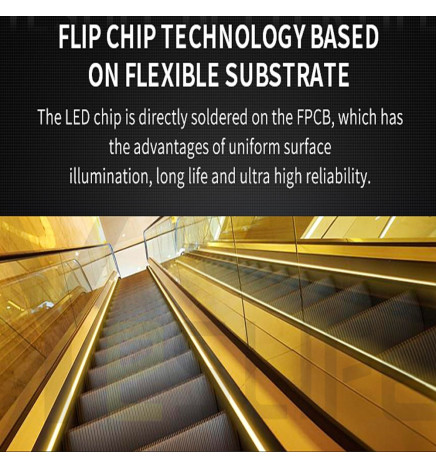

This COB Led Strip has 640 FLIPCHIP chips per meter, with which we achieve a uniform light throughout the strip, in addition to having higher Lm/W performance than traditional SMD LEDs.

With its CRI >90 we get the colors to look very real. This makes this led strip perfect for lighting spaces where we want the colors to look perfect.

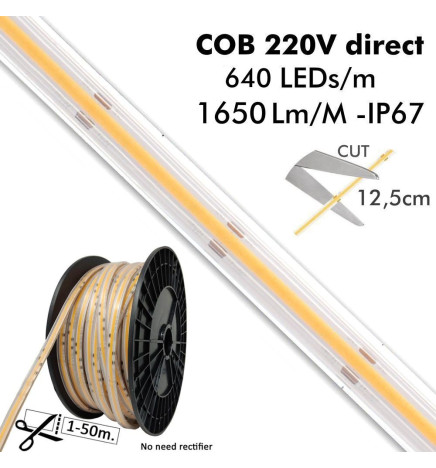

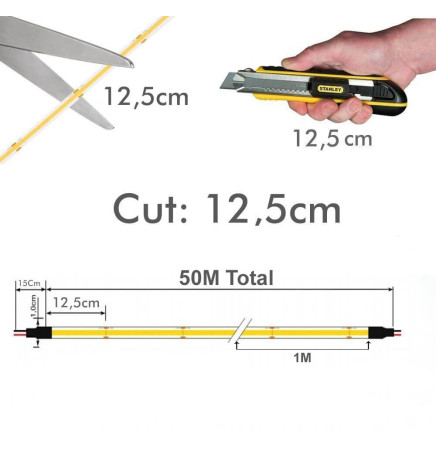

The LED strip can be cut and joined by the spaces indicated on it (joining copper zone), always following the pertinent instructions, (be careful that the soldering iron maintains a brief contact with the strip when soldering it, since excessive heat would damage the conductor).

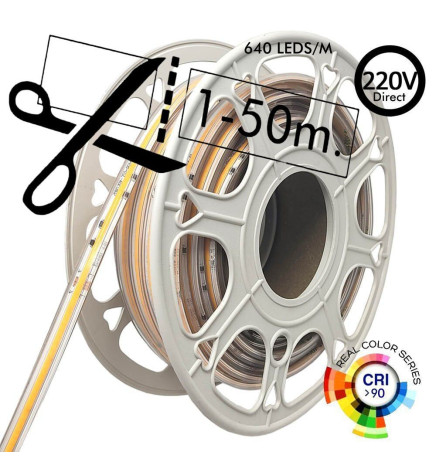

This Led Coil is NOT submersible, the connection is at one end direct to the current with a maximum of 50m per connection.

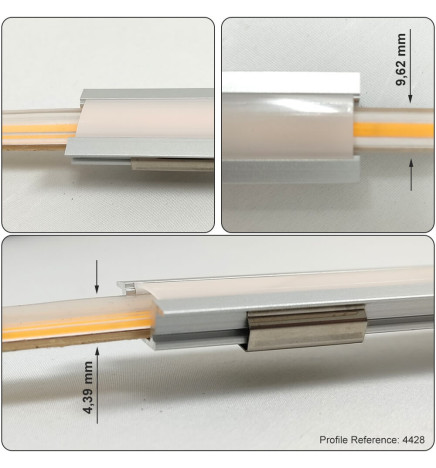

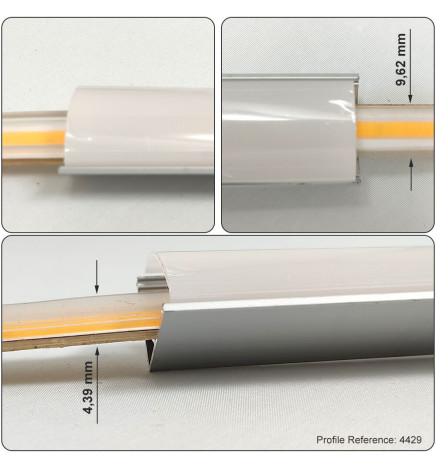

In its placement, to increase the useful life of the LED strip, it is advisable to use the double-sided heat dissipating tape, as well as to place it on an aluminum profile, for a correct management of the heat of the LED strip itself.

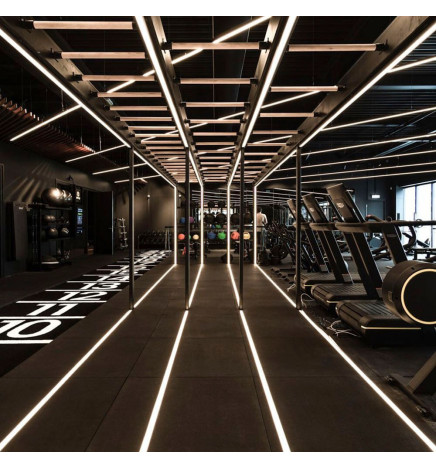

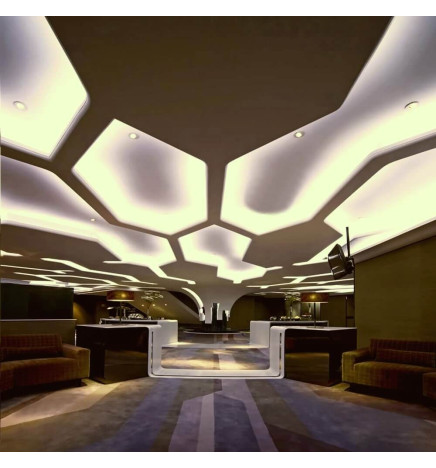

The LED strips are ideal to illuminate any type of corner or element of your business and your home, thanks to its flexibility. It can be said that one of its main advantages is the great versatility of uses that it can be given, since they can be installed in any area and adapt to any corner, and thus be placed in any position, due to its adaptable linear design.

Uses of LED Strip COB 220V | 640 LED/m | 50m | FLIP CHIP | 1650Lm | 15W/M | CRI90 | IP67

In libraries
Bars
Home
Restaurants
Rooftops
Shops

In FactorLED we ensure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

Reference SP640D15W50M-90687-57K-UND

Data sheet

REFERENCE: SP640D15W50M
Rated Power: 15w
Nominal Voltage: 220-240V
Colour: 2400K - 2700K - 4000K - 5700K
CRI - Chromatic Rendiment Index: 90
Luminosity-Lm: 1 Meter: 1650Lm - 50 Meter: 82500Lm
Number & Type of LEDs: SMD 2835

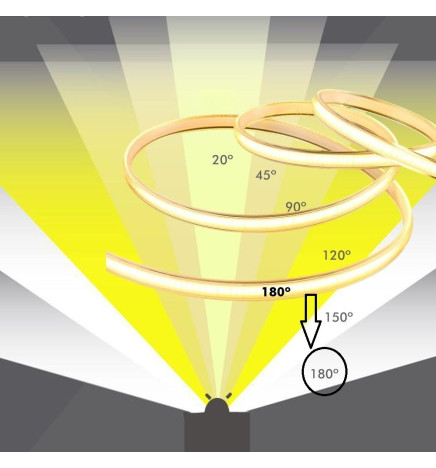

Beam Angle (º): 180º
Luminous diodo LED (Lm/W): 110 Lm/W
Luminous Efficiency (Lm/W): 100Lm/W
Dimmable: TRIAC: 30%-100%
Certifications: CE - ROHS

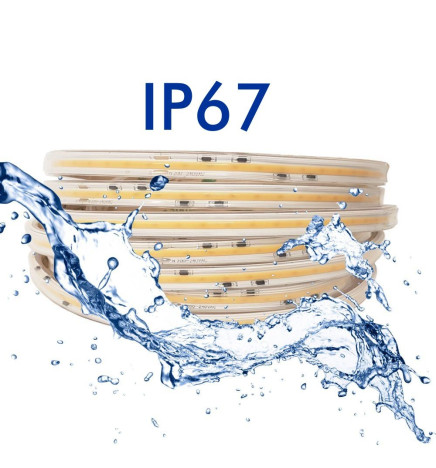

IP: IP67-Outdoor
Diode Life Expectancy (H): 35.000
Dimensions (mm): 50m * H4.5mm * 10mm
Temperature Range (ºC): -20°C ~ +55°C
On/Off Cycles: 100.000
Energy Rating (2021-UE-2019/2015): A+
Warranty Years: 3
