LED MAX Tube 13W Glass 300º 90cm - HIGH LUMINOSITY

TB90MAX4K

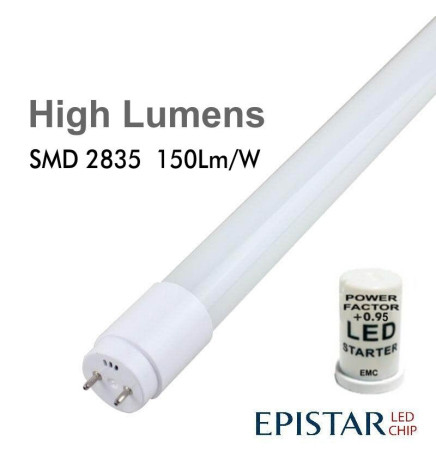

The MAX LED TUBE HIGH LUMINOSITY SMD 2835 EPISTAR 150 Lm/W, with Power Factor + 0.90 and 13W power, represents an excellent and economical solution for the replacement of T8 fluorescent tubes. Includes choke jumper. Without the need to modify the screen, replace the choke with the ' fuse '. Saves on time and money. Single-sided connection.


  • Rated Power

    13W

  • Nominal Voltage

    175-265V

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    1690 Lm

  • Beam Angle (º)

    300º

  • Luminous Efficiency (Lm/W)

    130Lm/W

  • IP

    IP20

  • Diode Life Expectancy (H)

    30.000

  • Dimensions (mm)

    900

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€3.13
No tax

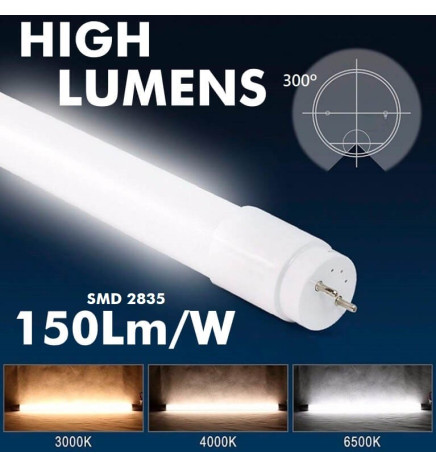

Color temperature: Natural White - 4000K
  • Warm White - 3000K
  • Natural White - 4000K
  • Cold White - 6000K



Download PDF

LED MAX Tube 13W Glass  300º   90cm - HIGH LUMINOSITY

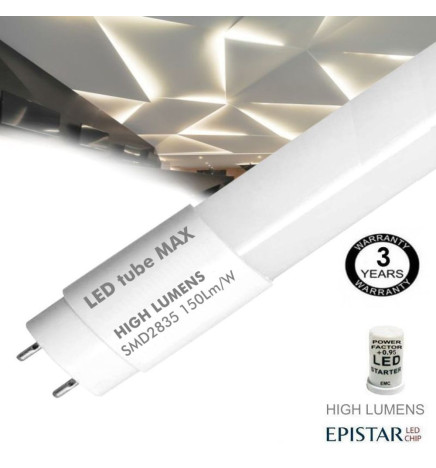

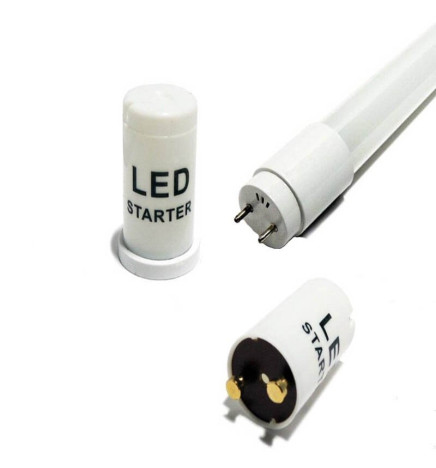

The MAX LED TUBE HIGH LUMINOSITY T8 90cm SMD 2835 EPISTAR 150 Lm/W  and power of 13W represents an excellent and economical solution for the replacement of T8 fluorescent tubes. Its direct connection to the mains supply allows to eliminate the remaining consumption of the ballasts and ballasts, by allowing a longer lifespan, lower maintenance requirements, a fast ignition and a flicker-free effect. Includes LED starter.

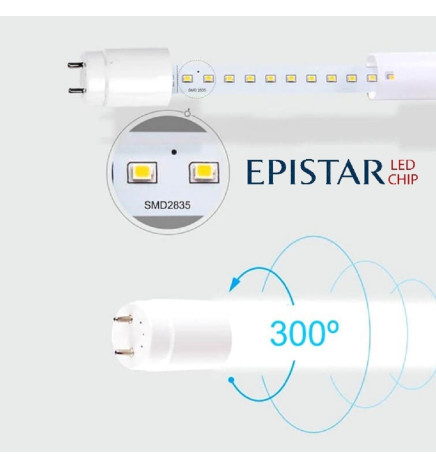

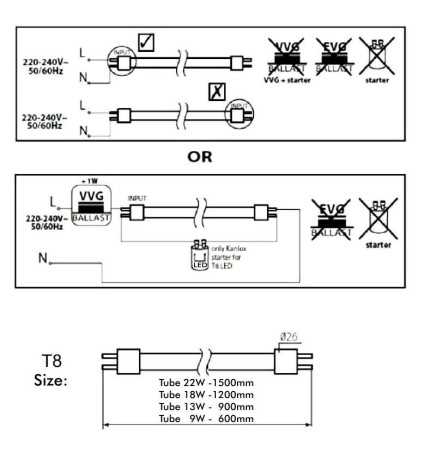

This T8 tube has a single-end connection, which is screen printed. To optimize energy consumption, the primer must be replaced and the ballast of the old fluorescent tubes eliminated.  It has 150Lm/W Epistar 2835 SMD Diode and a high light transmission glass coating that allows for uniform distribution.  Angle of 300 º.

It has a power factor greater than 0.90. Its operation is 175-265V and has an CRI higher than 80%. Opal cover that does not produce glare. It also has short-circuit protection and overheating.

Achieve greater savings, avoid flickering light in the lighting of the luminaire and thus achieve instant ignition with this LED tube.

Aplications for the LED MAX Tube 13W Glass  300º   90cm - HIGH LUMINOSITY

  • Kitchens
  • Shops
  • Office
  • Garages

restaurant lighting

In FactorLED we are committed to our products are of QUALITY and offer the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical sheet of each LED product.

TB90MAX4K

Data sheet

REFERENCE
TL90MAX
Rated Power
13W
Nominal Voltage
175-265V
Colour
4000K-6000K
CRI - Chromatic Rendiment Index
80
Construction Material
Glass+PC
Luminosity-Lm
1690 Lm
Number & Type of LEDs
Epistar SMD 2835
Beam Angle (º)
300º
Luminous diodo LED (Lm/W)
150Lm/W
Luminous Efficiency (Lm/W)
130Lm/W
Base
T8
Certifications
CE - ROHS
IP
IP20
Diode Life Expectancy (H)
30.000

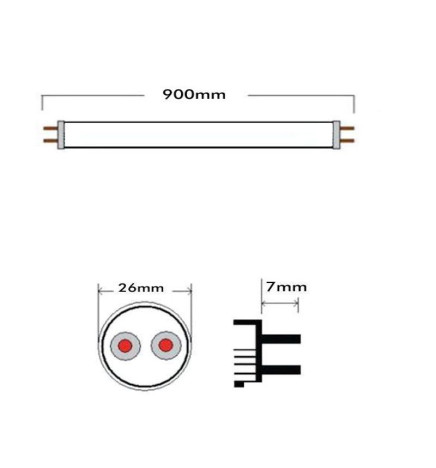

Dimensions (mm)
900
Power Factor (PF)
0.95
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
Connection to one end
Energy Rating (2021-UE-2019/2015)
A++
Warranty Years
3
