LED Street Light 60W - URBAN DRIVER INVERTRONICS - 160Lm/W HIGH LUMEN

UR-GD60W-NW-90997

Light up your garden with the LED Street Light 60W URBAN, a modern and efficient option that replaces old mercury streetlights (banned in the EU since 2015). Its elegant design incorporates a dual-core SMD3030, offering 160lm/W performance and instant lighting.

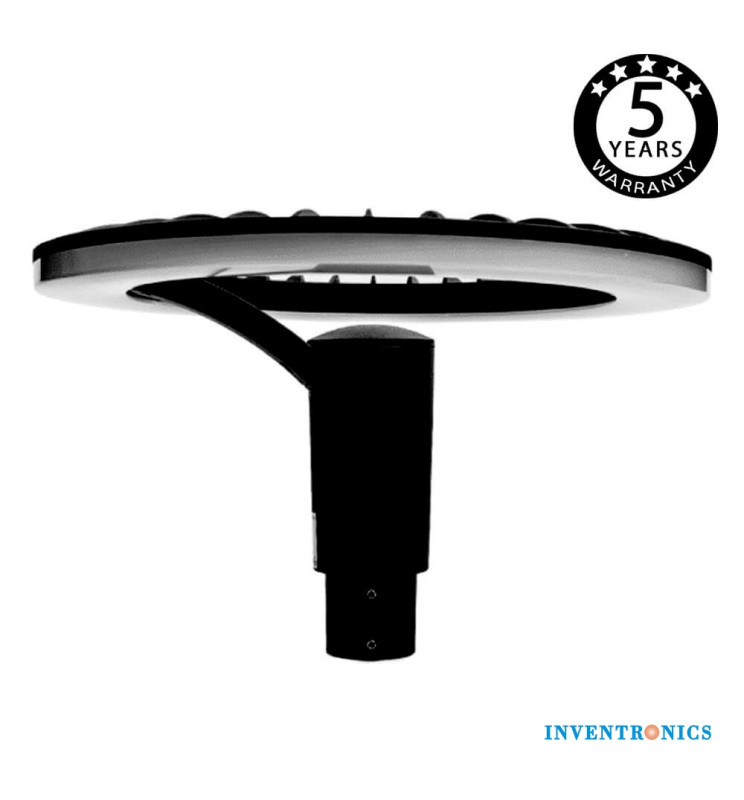

Equipped with an INVERTRONICS Driver with up to 5 years warranty, it provides high performance and low power consumption, optimizing light quality while reducing energy costs. The best solution for durable and sustainable outdoor lighting!

RAL 9005

The product is delivered unassembled.

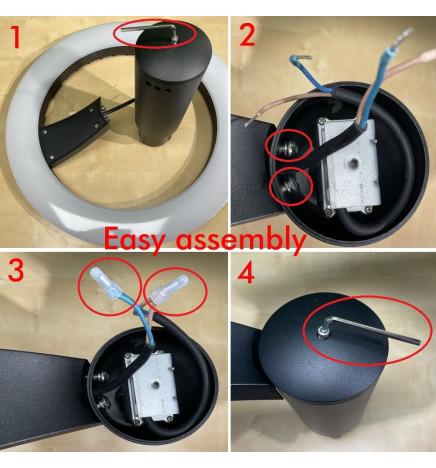

Easy to assemble

  • Rated Power

    60w

  • Nominal Voltage

    85V-265V

  • CRI - Chromatic Rendiment Index

    70

  • Luminosity-Lm

    7500

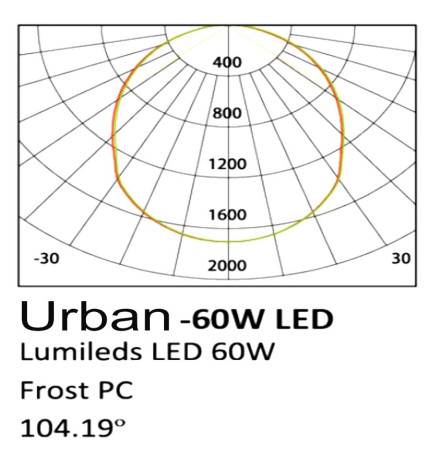

  • Beam Angle (º)

    104º

  • Luminous Efficiency (Lm/W)

    130Lm/W

  • IP

    IP65-Outdo

  • Diode Life Expectancy (H)

    50.000

  • Dimensions (mm)

    Ø520mmx317

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€163.90
No tax
Color temperature: Natural White - 4000K
  • Warm White - 3000K
  • Natural White - 4000K



Download PDF

LED Street Light 60W - URBAN DRIVER INVERTRONICS - 160Lm/W HIGH LUMEN

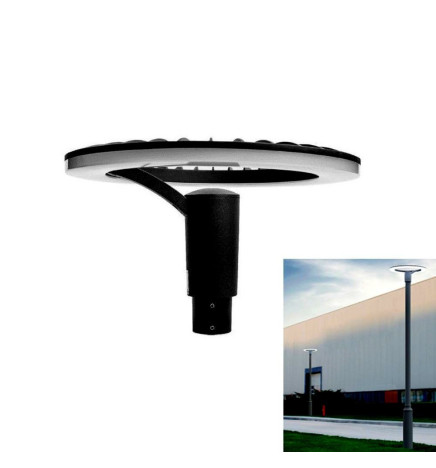

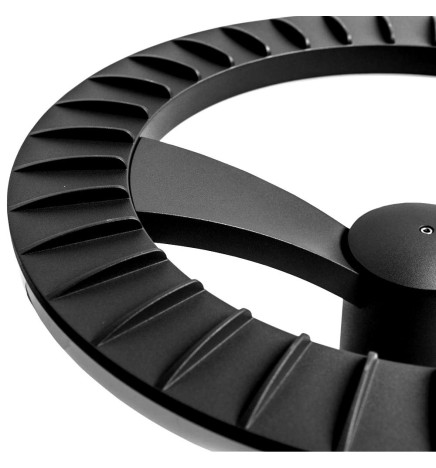

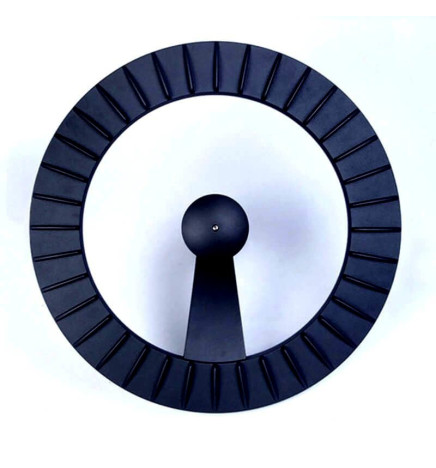

The high-end URBAN 60w streetlight with a unique design is made of aluminium and highly durable polycarbonate. The new, robust and durable URBAN improves lighting concepts, and addresses issues such as spacing between lanterns, preservation of the night sky by avoiding light pollution and improving visual comfort.

Installation and mounting is simple. Thanks to its type of SMD 3030 160Lm/W offers a light source whose distribution is direct to give the best solution to the end user.

The material that includes this LED street light is perfect to give a great resistance for a long period of time, it is protected against rust or corrosion, even copes with the extreme temperatures that occur in both summer and winter.

Its IP-65 degree of protection protects the product against the entry of dust and resists splashing of any type of liquid from any angle and a distance of not less than 3 meters, so its outdoor mounting is perfect.

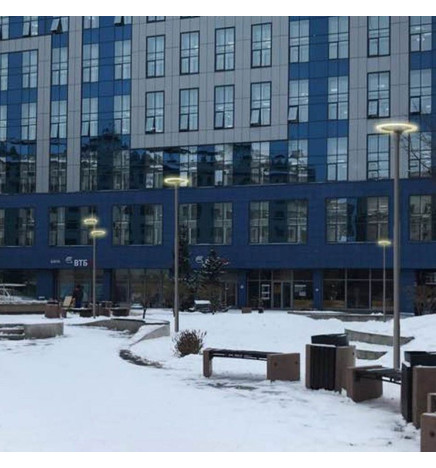

Uses of LED Street Light 60W - URBAN DRIVER INVERTRONICS - 160Lm/W HIGH LUMEN

  • Streets
  • Parks
  • Squares
  • Gardens
  • Paths
  • Courtyards


In FactorLED we ensure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

UR-GD60W-NW-90997

Data sheet

REFERENCE
1000A-60W
Rated Power
60w
Nominal Voltage
85V-265V
Colour
4000K
CRI - Chromatic Rendiment Index
70
Construction Material
Aluminiun+PC
Luminosity-Lm
7500
Number & Type of LEDs
SMD 3030 2D
Beam Angle (º)
104º
Luminous diodo LED (Lm/W)
166Lm/W
Luminous Efficiency (Lm/W)
130Lm/W
Certifications
CE - ROHS
IP
IP65-Outdoor
Diode Life Expectancy (H)
50.000
Dimensions (mm)
Ø520mmx317
Power Factor (PF)
0,98
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-15º+70º
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
Hole Ø 61mm
Impact Protection (IK)
IK08
Driver included
INVENTRONICS 5 YEARS
Energy Rating (2021-UE-2019/2015)
A+
Warranty Years
5
