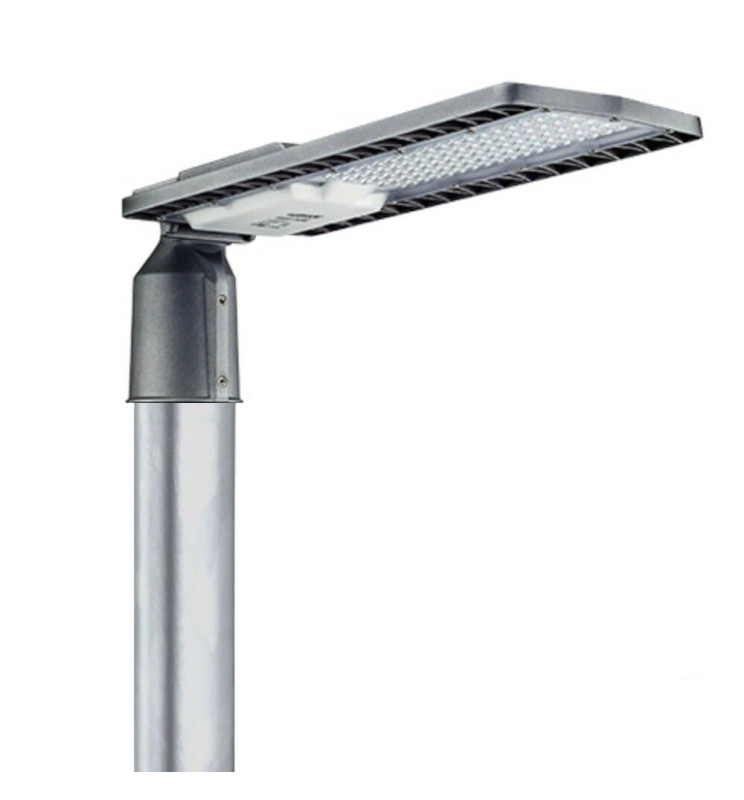

60W LED Streetlight HALLEY - HIGH LUMEN 160lm/W

SP260W-3K

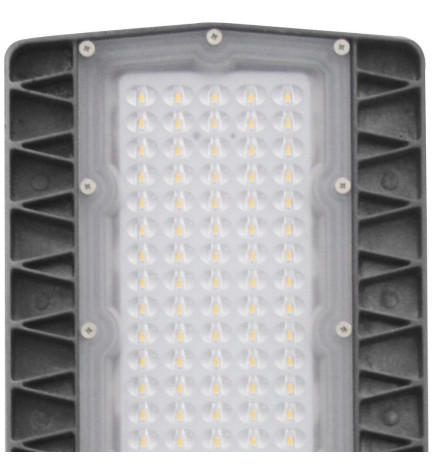

The 60W HALLEY LED Streetlamp is manufactured with SMD 3030 diodes of high brightness, which is capable of generating great lighting in any outdoor space of the street lighting. It is time to replace the old street lamps with the new ones with LED technology and you can reduce energy consumption by up to 80%.



  • Rated Power

    60w

  • Nominal Voltage

    85-265V

  • CRI - Chromatic Rendiment Index

    70

  • Luminosity-Lm

    9000Lm

  • Beam Angle (º)

    140º x 80º

  • Luminous Efficiency (Lm/W)

    3000/4000K

  • IP

    IP66

  • Diode Life Expectancy (H)

    40.000

  • Dimensions (mm)

    494mmx155m

Brightness calculation
Fast and secure delivery
We offer professional prices for LED lighting

€75.30
No tax
Color temperature: Warm White - 3000K
  • Golden White - 2000K
  • Warm White - 3000K
  • Natural White - 4000K



Download PDF

60W LED Streetlight  HALLEY - HIGH LUMEN 160lm/W

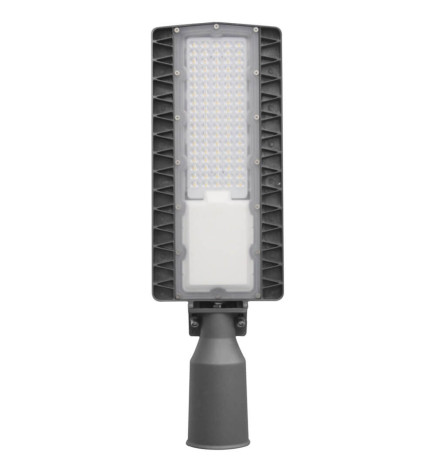

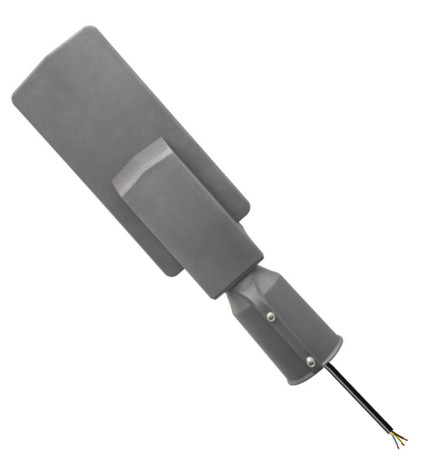

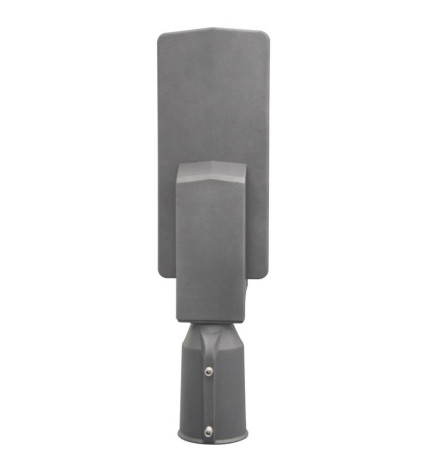

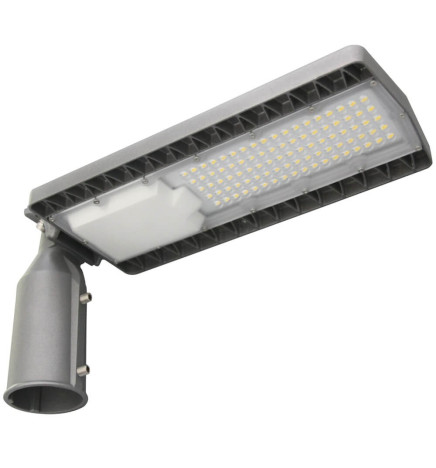

To achieve a better public lighting, the new HALLEY LED Streetlight is ideal, which stands out from the rest thanks to its 60W power, SMD3030 achieving a quality luminaire. It is made of aluminum and PMMA of high quality and transparency so it is ensured with high resistance protection.

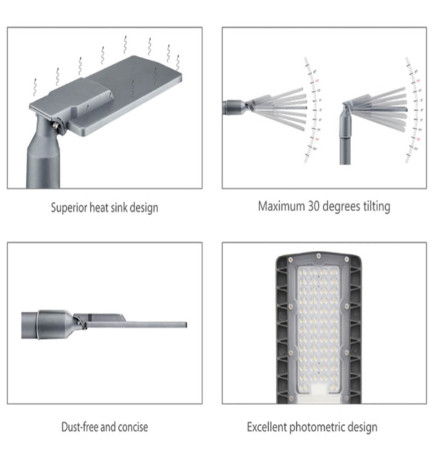

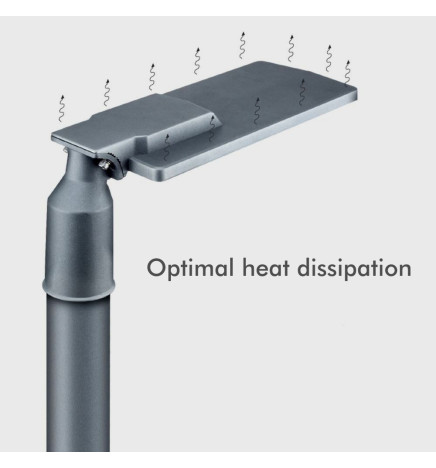

Thanks to its extra-flat design it prevents the leaves of trees, or dirt from being deposited in it, while minimizing the visual impact of the same.



The HALLEY LED lamp is on immediately, eliminating the annoying waiting times left in dark areas when the power fails creating insecurity among the pedestrians.

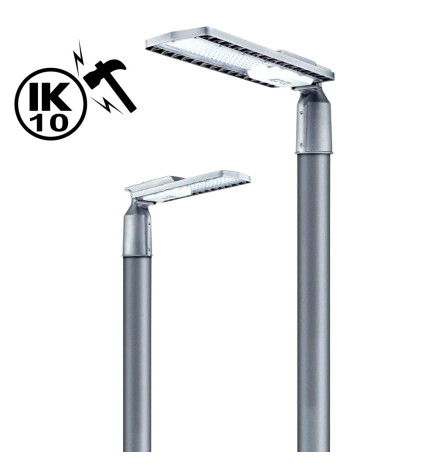

It unleashes its great resistance to shock, having an IK10 grade

In addition, thanks to its IP66 protection, it is protected against any weather changes, if it has an impact on its lighting function.


The HALLEY LED street lighting luminaire will allow you to maintain good lighting with content consumption. The cost of exploitation is lower as there are no starters or electronics to replace.

Built for a long service life of more than 50,000 hours, the 60W HALLEY LED lamp has a 5-year warranty for its high quality power supply, durability and design.

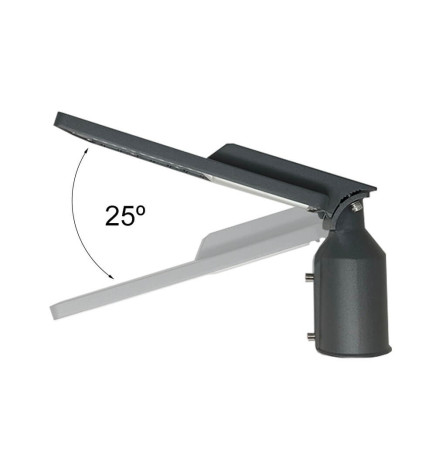

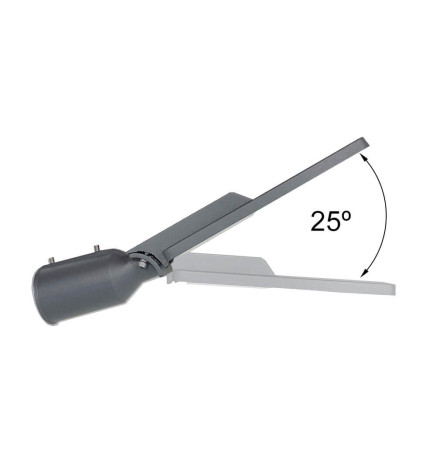

It has a 60mm diameter round adjustable connector, fixing 2 pressure screws to the column.



Uses of the 60W LED Streetlight  HALLEY - HIGH LUMEN 160lm/W

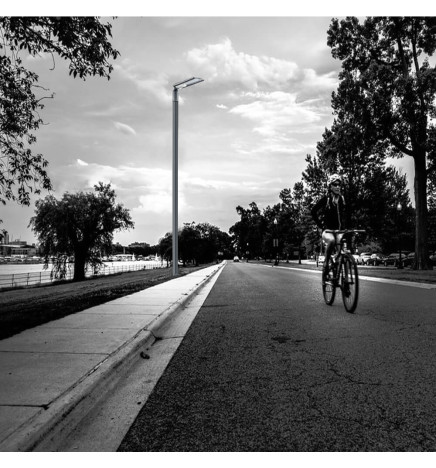

  •     Street lighting
  •     Gardens and roads
  •     Parks and squares
  •     sports Center
  •     Parking lots


In FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for the DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

SP260W-3K

Data sheet

REFERENCE
SP260W
Rated Power
60w
Nominal Voltage
85-265V
Colour
CRI - Chromatic Rendiment Index
70
Construction Material
Aluminium
Luminosity-Lm
9000Lm
Number & Type of LEDs
SMD3030
Beam Angle (º)
140º x 80º
Luminous diodo LED (Lm/W)
160 Lm/w
Luminous Efficiency (Lm/W)
3000/4000K: 150 Lm/W - 2000K: 130Lm/W
Certifications
CE-RoSH-TÜV-ENEC
IP
IP66
Diode Life Expectancy (H)
40.000
Dimensions (mm)

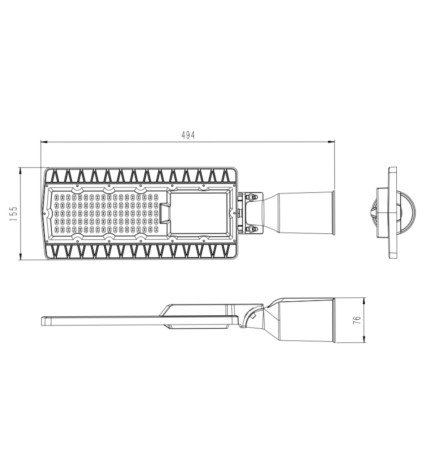

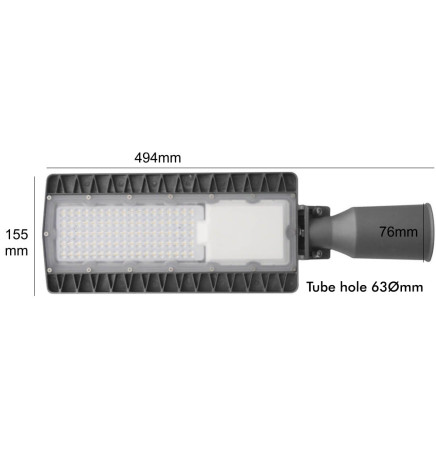

494mmx155mm - Tube hole 63Ømm
Power Factor (PF)
0,95
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
6K Surge Protection:
Impact Protection (IK)
IK10
Driver included
GXTRONIC Driver 5 Years
Energy Rating (2021-UE-2019/2015)
A++
Energy Rating (2023 - UE-2019/2015)
C
Warranty Years
5
