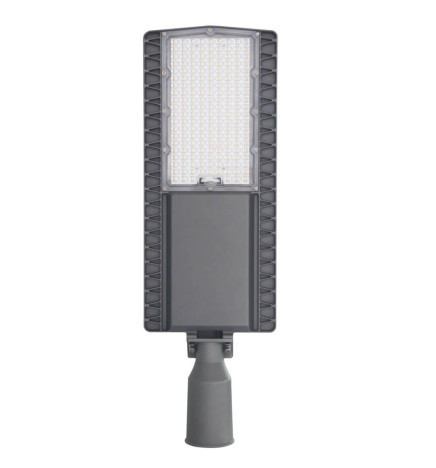

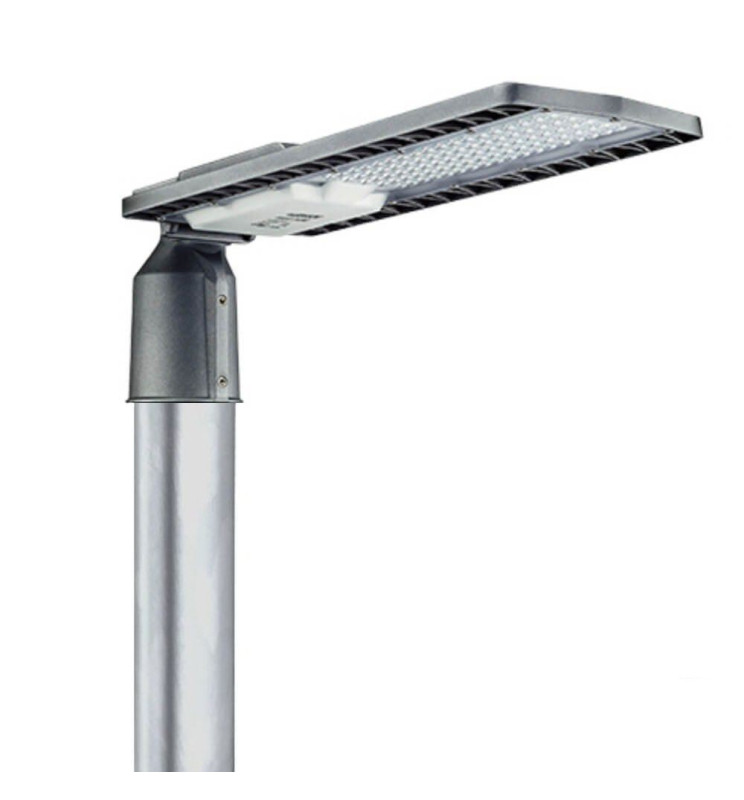

100W LED Streetlight HALLEY - HIGH LUMEN 160lm/W

SP3100W-3K

The 100W HALLEY LED Streetlight is manufactured with SMD 3030 diodes of high brightness, which is capable of generating great lighting in any outdoor space of the street lighting. It is time to replace the old street lamps with the new ones with LED technology and you can reduce energy consumption by up to 80%. ENEC 05.



  • Rated Power

    100w

  • Nominal Voltage

    85-265V

  • CRI - Chromatic Rendiment Index

    70

  • Luminosity-Lm

    14000Lm

  • Beam Angle (º)

    150º x 90º

  • Luminous Efficiency (Lm/W)

    153 Lm/W

  • IP

    IP66

  • Diode Life Expectancy (H)

    50.000

  • Dimensions (mm)

    623mmx200m

Brightness calculation
Fast and secure delivery
We offer professional prices for LED lighting

€142.21
No tax
Color temperature: Warm White - 3000K
  • Warm White - 3000K
  • Natural White - 4000K



Download PDF

100W LED Streetlight  HALLEY - HIGH LUMEN 160lm/W

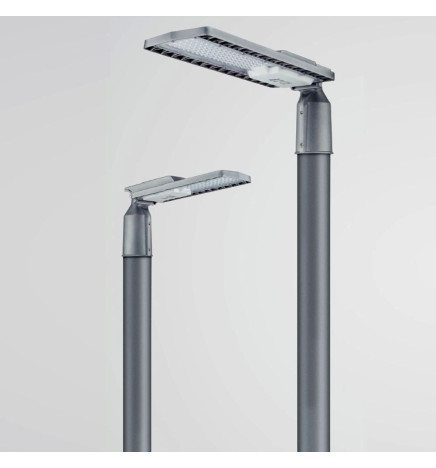

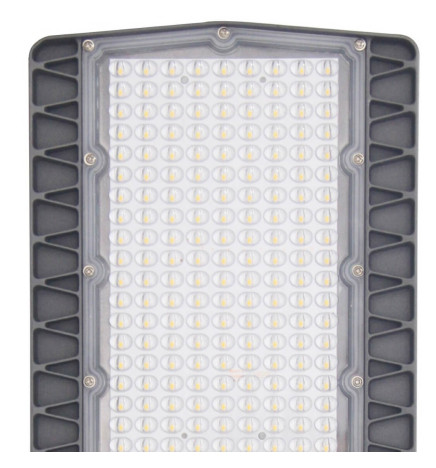

To achieve a better public lighting, the new HALLEY LED Streetlight is ideal, which stands out from the rest thanks to its 100W power, SMD3030 achieving a quality luminaire. It is made of aluminum and PMMA of high quality and transparency so it is ensured with high resistance protection.

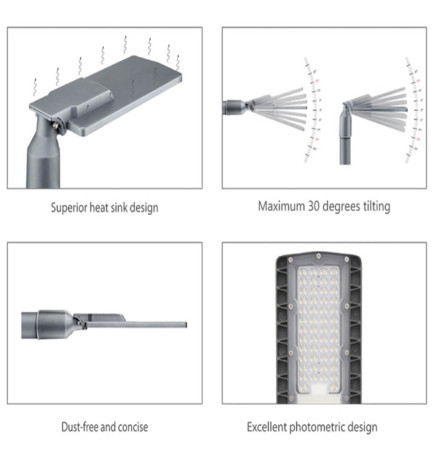

Thanks to its extra-flat design it prevents the leaves of trees, or dirt from being deposited in it, while minimizing the visual impact of the same.



The HALLEY LED lamp is on immediately, eliminating the annoying waiting times left in dark areas when the power fails creating insecurity among the pedestrians.

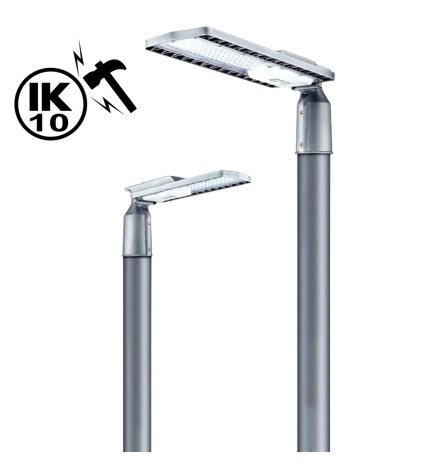

It unleashes its great resistance to shock, having an IK10 grade

In addition, thanks to its IP66 protection, it is protected against any weather changes, if it has an impact on its lighting function.


The HALLEY LED street lighting luminaire will allow you to maintain good lighting with content consumption. The cost of exploitation is lower as there are no starters or electronics to replace.

Built for a long service life of more than 50,000 hours, the 100W HALLEY LED lamp has a 5-year warranty for its high quality power supply, durability and design.

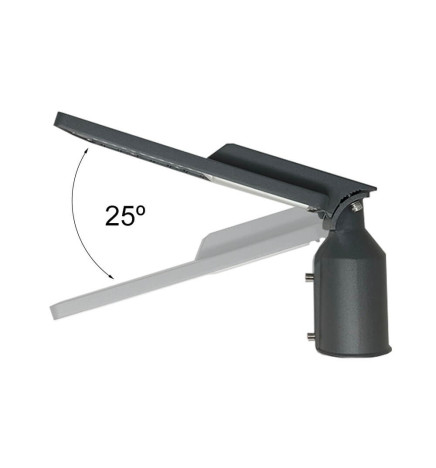

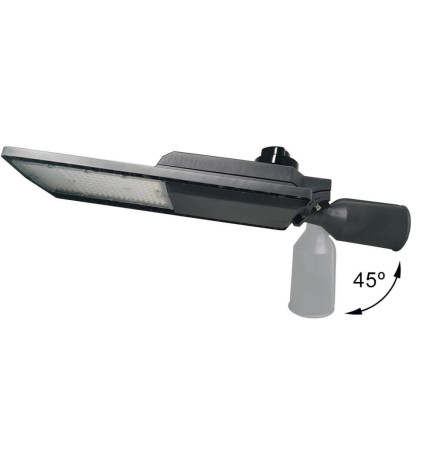

It has a 60mm diameter round adjustable connector, fixing 2 pressure screws to the column.

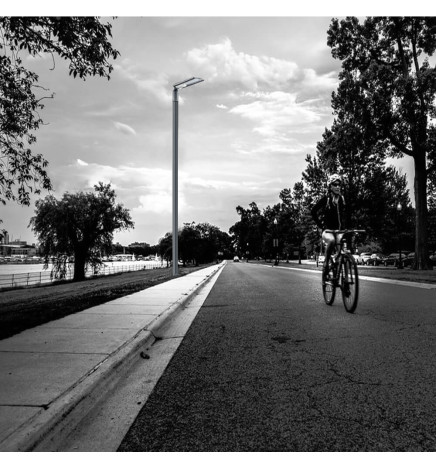

Uses of the 100W LED Streetlight  HALLEY - HIGH LUMEN 160lm/W

  •     Street lighting
  •     Gardens and roads
  •     Parks and squares
  •     sports Center
  •     Parking lots


In FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for the DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

SP3100W-3K

Data sheet

REFERENCE
SP2640W
Rated Power
100w
Nominal Voltage
85-265V
Colour
3000K
CRI - Chromatic Rendiment Index
70
Construction Material
Aluminium
Luminosity-Lm
14000Lm
Number & Type of LEDs
SMD3030
Beam Angle (º)
150º x 90º
Luminous diodo LED (Lm/W)
165Lm/W
Luminous Efficiency (Lm/W)
153 Lm/W
Certifications
CE-RoSH-TÜV-ENEC
IP
IP66
Diode Life Expectancy (H)
50.000

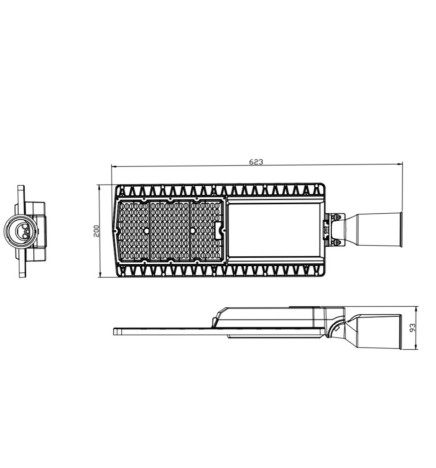

Dimensions (mm)

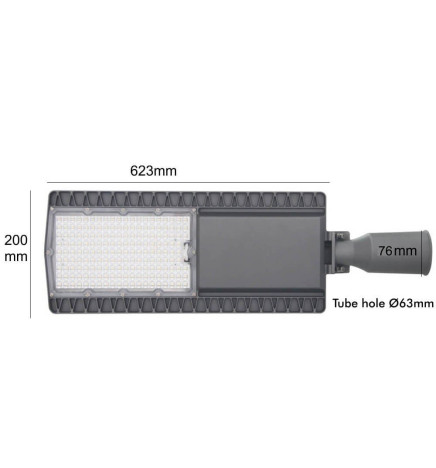

623mmx200mm - Tube hole 63Ømm
Power Factor (PF)
0,95
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Starting Time (s)
0,2s
Impact Protection (IK)
IK10
Driver included
EDISON
Energy Rating (2021-UE-2019/2015)
A++
Energy Rating (2023 - UE-2019/2015)
C
Warranty Years
5
