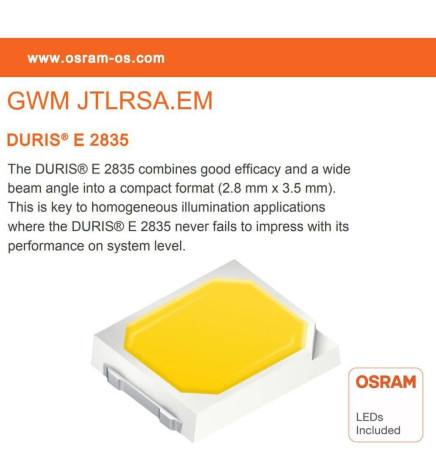

8W LED Square Downlight Slim - OSRAM CHIP DURIS E 2835

Reference: PLC8WOSR6K

The 8W Slim LED Downlight incorporates the high brightness OSRAM DURIS E 2835 diode and has an opening angle of 120° which is ideal for homogeneously illuminating all types of retail outlets, both in the private and professional sectors. Thanks to its modern and attractive design you will have different types of decoration.

design also available in circular

8w
85V-265V
80
880
120º
110 Lm/W
IP40
40.000
120mm

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€3.15

No tax

Options: Empotrable

Empotrable

Color temperature: Cold White - 6000K

Warm White - 3000K
Natural White - 4000K
Cold White - 6000K

Download PDF

8W LED Square Downlight Slim - OSRAM CHIP DURIS E 2835

This 8W OSRAM Chip Led Downlight has an opening angle of 120°, ideal for lighting all types of commercial establishments, both in the private and professional sectors.

It is made of aluminium which contributes to improve the durability of the luminaire. Its high luminous efficiency offers a warm and cosy light tone.

Thanks to its modern and attractive design you will have different types of decoration,.

High level of colour rendering. High IRC level.

All Slim LED downlights are instantaneously switched on, which allows you to take advantage of their lighting from the very first moment.

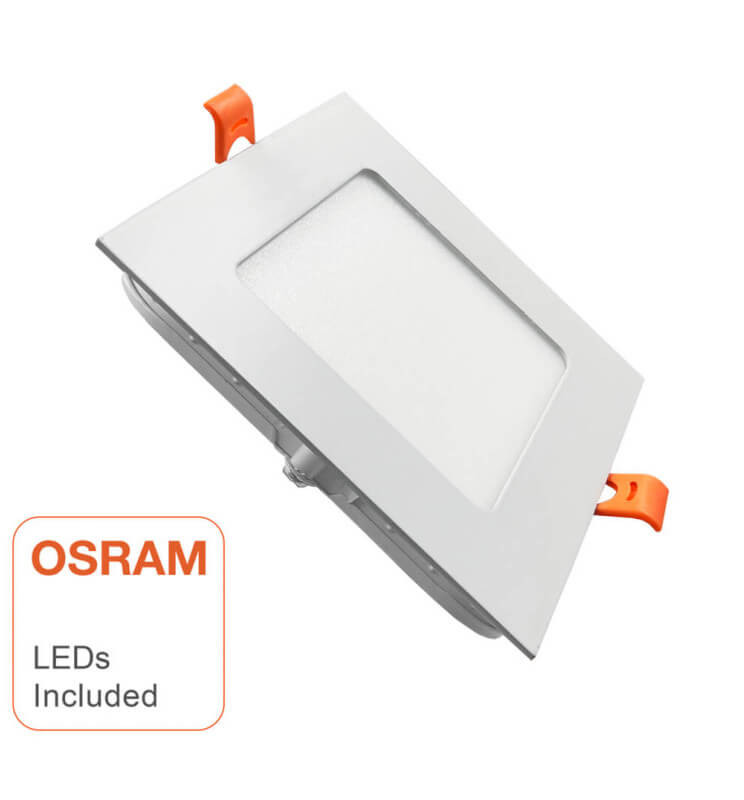

The design of this type of panel allows it to be installed on shallow surfaces, it also has fixing tabs installed on the plate to save time in its installation.

Start enjoying long-lasting, ecological and high-quality lighting.

We have 3 types of temperatures, which will provide you with different shades of light. Warm White, Natural White, Cold White. Get them now in a simple way, through our shop.

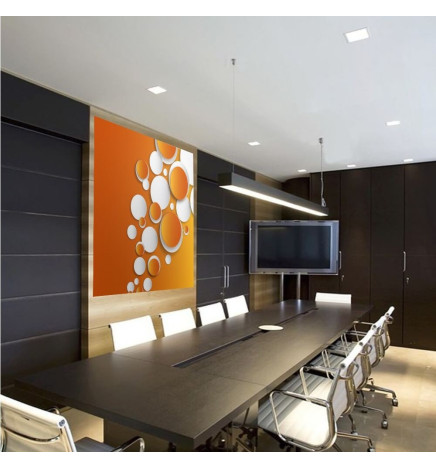

Uses for the 8W LED Square Downlight Slim - OSRAM CHIP DURIS E 2835

Leisure centres
Shops
Shopping centres
Hotels
Restaurants
Home

In FactorLED we assure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

Reference PLC8WOSR6K

Data sheet

REFERENCE: PLC8WOSR-90065
Rated Power: 8w
Nominal Voltage: 85V-265V
Colour: 3000K - 4000K - 6000K
CRI - Chromatic Rendiment Index: 80
Construction Material: Aluminiun+PC
Luminosity-Lm: 880
Number & Type of LEDs: SMD 2835
Beam Angle (º): 120º
Luminous diodo LED (Lm/W): 140 Lm/W
Luminous Efficiency (Lm/W): 110 Lm/W
Dimmable: NO
Certifications: CE - ROHS
IP: IP40
Diode Life Expectancy (H): 40.000
Dimensions (mm): 120mm
Frequency (Hz): 50/60Hz
Temperature Range (ºC): -20°C ~ +55°C
On/Off Cycles: 100.000
Starting Time (s): 0,2s
Other Information: Peso con caja: 90g
Cut-out Size (mm): 105mm
Glare Rating (UGR): 19
Driver included: YES
Energy Rating (2021-UE-2019/2015): A+
Energy Rating (2023 - UE-2019/2015): F
Warranty Years: 3
