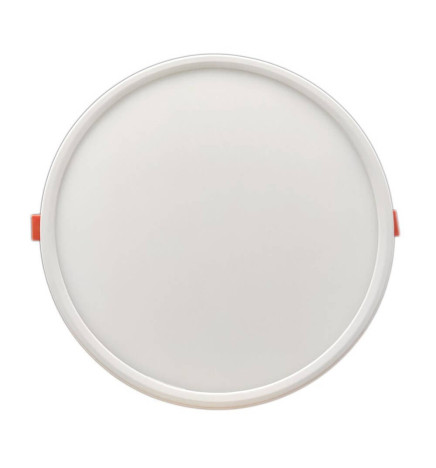

20W LED ADJUSTABLE Slim Downlight - OSRAM Chip

PLA20WOSR3K

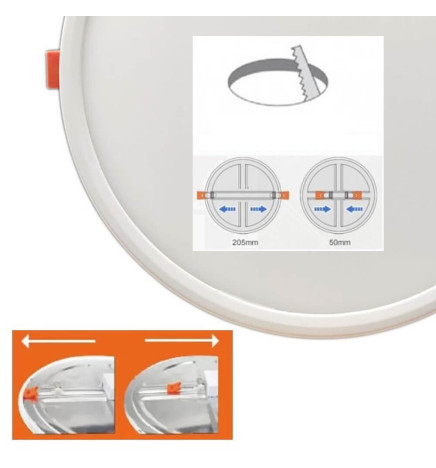

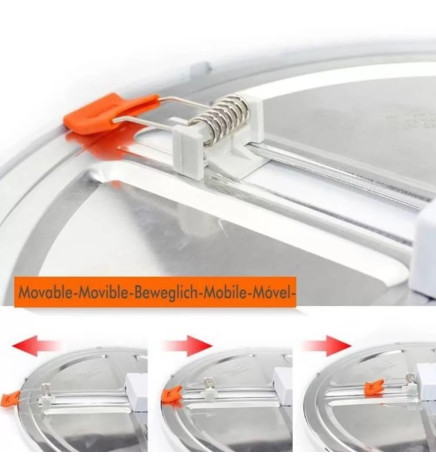

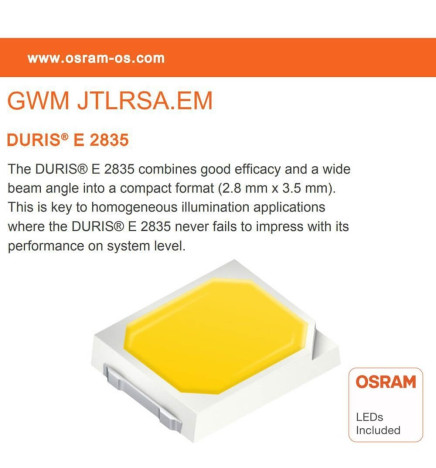

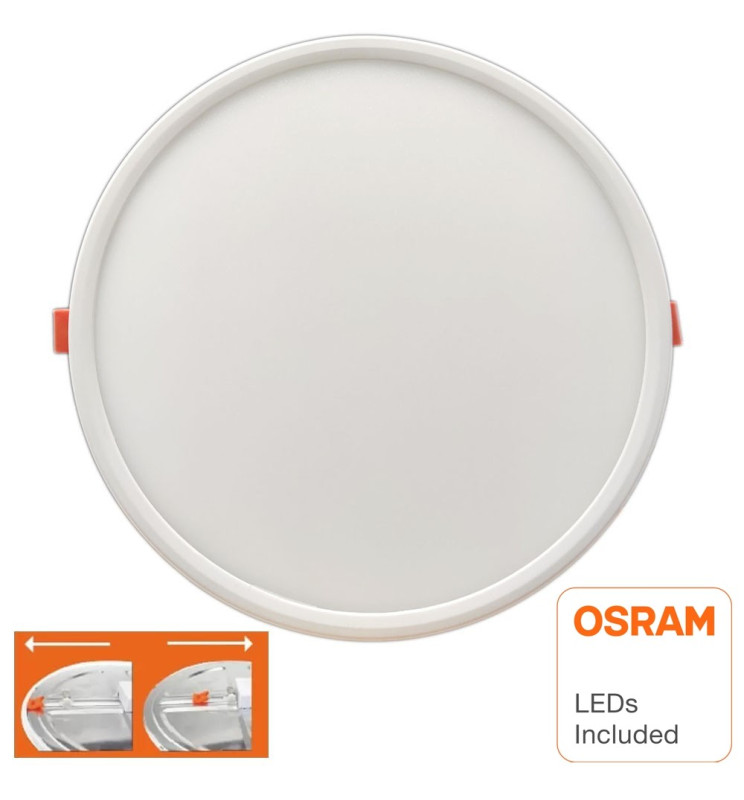

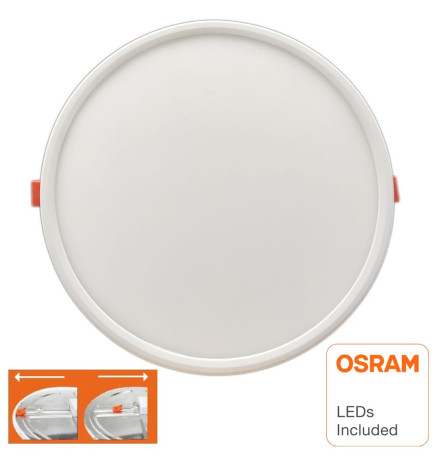

This 20W LED Circular Downlight Slim ADJUSTABLE incorporates the high brightness OSRAM DURIS E 2835 diode. It has an opening angle of 120º ideal for lighting all types of commercial establishments. With our adjustable LED downlight, you will not have any problem installing it, as it fits perfectly to the hole diameter thanks to a simple sliding system of the fixing springs, from a hole diameter of 50mm to 205mm.

  • Rated Power

    20w

  • Nominal Voltage

    85V-265V

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    2200

  • Beam Angle (º)

    120º

  • Luminous Efficiency (Lm/W)

    100 Lm/W

  • IP

    IP20

  • Diode Life Expectancy (H)

    40.000

  • Dimensions (mm)

    Φ230mm

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€6.90
No tax
Color temperature: Warm White - 3000K
  • Warm White - 3000K
  • Natural White - 4000K
  • Cold White - 6000K



Download PDF

20W LED ADJUSTABLE Slim Downlight - OSRAM Chip

This 20W ADJUSTABLE OSRAM Chip LED Downlight has an opening angle of 120° that is ideal for lighting all types of shops, both in the private and professional sectors.

It is made of aluminium which contributes to the durability of the luminaire. Its high luminous efficiency offers a warm and cosy light tone.

Thanks to its modern and attractive design you will have different types of decoration,.

High level of colour rendering. High IRC level.

All Slim LED Downlight are instantaneously switched on, which allows you to take advantage of their lighting from the very first moment.

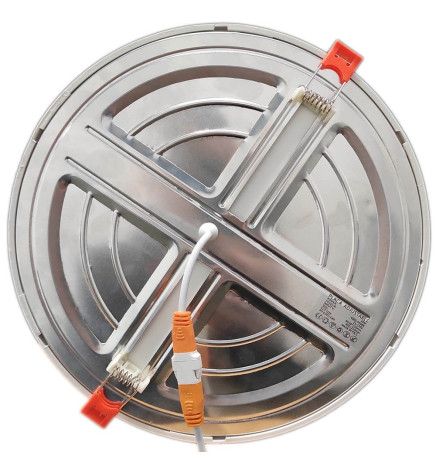

The design of this type of Led downlight allows it to be installed on shallow surfaces. It also has fixing tabs installed on the downlight to save time in its installation.



Start enjoying long-lasting, ecological and high-quality lighting.

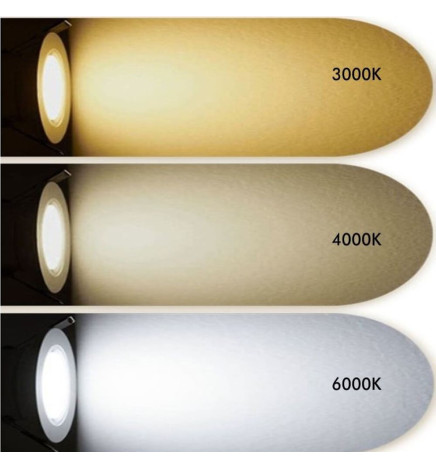

We have 3 types of temperatures, which will provide you with different shades of light. Warm White, Natural White, Cold White. Get them now in a simple way, through our shop.

Uses for the 20W LED ADJUSTABLE Slim Downlight - OSRAM Chip

  • Leisure centres
  • Shops
  • Shopping centres
  • Hotels
  • Restaurants
  • Home

In FactorLED we assure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

PLA20WOSR3K

Data sheet

REFERENCE
PLA20WOSR
Rated Power
20w
Nominal Voltage
85V-265V
Colour
3000K - 4000K - 6000K
CRI - Chromatic Rendiment Index
80
Construction Material
Aluminiun+PC
Luminosity-Lm
2200
Number & Type of LEDs
SMD 2835 OSRAM CHIP
Beam Angle (º)
120º
Luminous diodo LED (Lm/W)
140 Lm/W
Luminous Efficiency (Lm/W)
100 Lm/W
Dimmable
NO
Certifications
CE - ROHS
IP
IP20
Diode Life Expectancy (H)
40.000

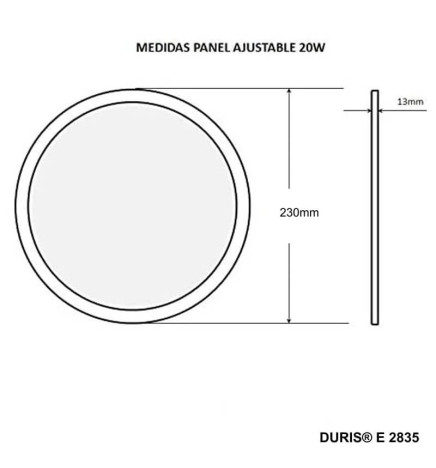

Dimensions (mm)
Φ230mm
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Cut-out Size (mm)
Min. Φ50mm - Max 205mm
Glare Rating (UGR)
19
Driver included
YES
Energy Rating (2021-UE-2019/2015)
A+
Energy Rating (2023 - UE-2019/2015)
F
Warranty Years
3
