100W SOLAR LED Outdoor Floodlight - AVANT LUMILEDS - 5700K

SFL100W-LML-91094-57K

This 100W Outdoor LED Solar Spotlight has a solar panel that allows you to recharge its battery. This Solar Spotlight does not need to be connected to the mains, manufactured with high brightness LUMILEDS chips.

Its installation and operation is very simple, in such a way that during daylight hours, the panel is powered and charges the integrated battery in the spotlight.

It includes a programmable control panel. Start saving now!

  • Rated Power

    100w Chip

  • Nominal Voltage

    DC 3.2V -

  • CRI - Chromatic Rendiment Index

    70

  • Beam Angle (º)

    90°

  • IP

    IP65-Outdo

  • Diode Life Expectancy (H)

    25000h

  • Dimensions (mm)

    Proyector:

Brightness calculation
Fast and secure delivery
We offer professional prices for LED lighting

Certificado CE Certificado ROHS
€41.24
No tax
Color temperature: 5700K - Cold White
  • 5700K - Cold White



Download PDF

100W SOLAR LED Outdoor Floodlight AVANT - LUMILEDS

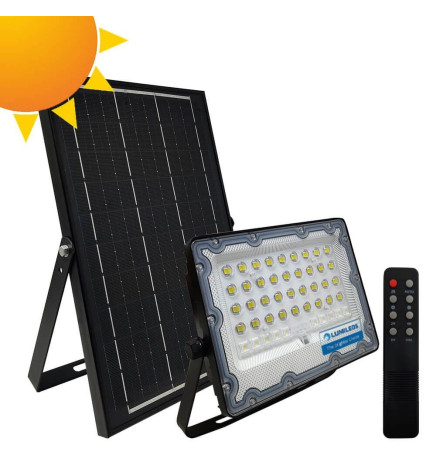

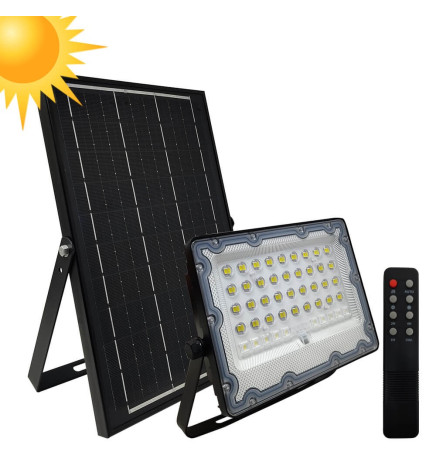

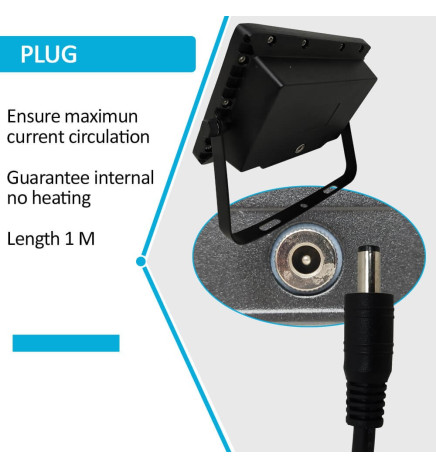

100W Solar LED Floodlight with cold white light 5700K, no need for electricity, fully autonomous with polycrystalline solar panel with 100cm connection cable, solar panel holder, solar LED projector, remote control and hardware for fastening the projector and solar panel.

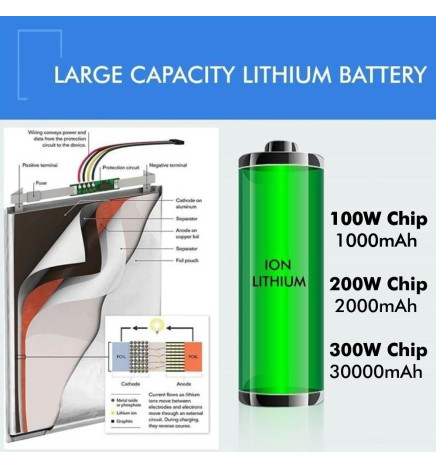

Lithium battery of high capacity and durability

Easy Operation: You can use the LED projector connected to the solar panel or independently, in the latter case does not operate in automatic mode, and turns off or on from the remote control.

- Automatic mode: This mode is only possible with the solar panel permanently connected, this way only turns on the LED projector when it detects a brightness less than 50lux, otherwise it will turn off. In this way, it switches on automatically at night and off automatically during the day.

- Manual mode: By pressing the ON/OFF button, the LED projector turns on and by pressing the same button again, the projector turns off. Regardless of the ambient brightness.

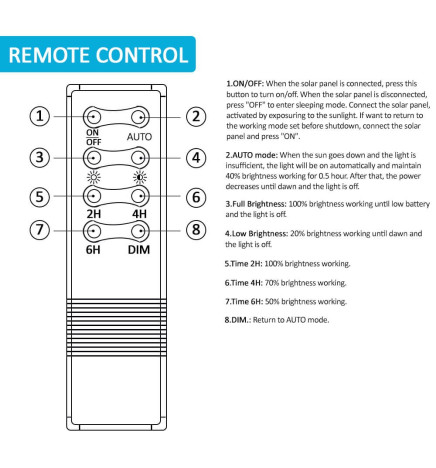

Remote control:

  • ON/OFF: When the solar panel is connected, press this button to turn on/off. When the solar panel is disconnected, press "OFF" to enter sleep mode. Switch on the solar panel, activated by exposure to the sun. If you wish to return to the operating mode set before shutdown, connect the solar panel and press "ON".
  • AUTO mode: When the sun goes down and the light is insufficient, the light will automatically switch on and maintain a brightness of 40% for 0.5 hours. After that, the power will decrease until sunrise and the light will turn off.
  • Maximum Brightness: Run at 100% brightness until the battery is low and the light turns off.
  • Low Brightness: Run at 20% brightness until sunrise and the light turns off.
  • 2H: Run at 100% brightness for 2 hours.
  • 4H: Run at 70% brightness for 4 hours.
  • 6H: Run at 50% brightness for 6 hours.
  • DIM: Back to AUTO mode


It is recommended to install it at a height of 3-4 metres.

Applications of the 100W SOLAR LED Outdoor Floodlight AVANT - LUMILEDS

  • Gardens
  • Parks
  • Squares
  • Roundabouts
  • Fields
  • Roads



Due to its reliability, power and durability, it can be used in all types of outdoor installations. It offers very high quality lighting due to its high Chromatic Performance Index (CRI) +80, even in installations at 3 or 4 metres in height.



In FactorLED we assure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical sheet of each LED product.

SFL100W-LML-91094-57K

Data sheet

REFERENCE
SFL100W-OSR-91094
Rated Power
100w Chip LUMILEDS
Nominal Voltage
DC 3.2V - 10000mA
Colour
5700K
CRI - Chromatic Rendiment Index
70
Construction Material
Aluminiun+Glass
Number & Type of LEDs
SMD 2835
Beam Angle (º)
90°
Luminous diodo LED (Lm/W)
170Lm/W
Dimmable
YES
Certifications
CE - ROHS
IP

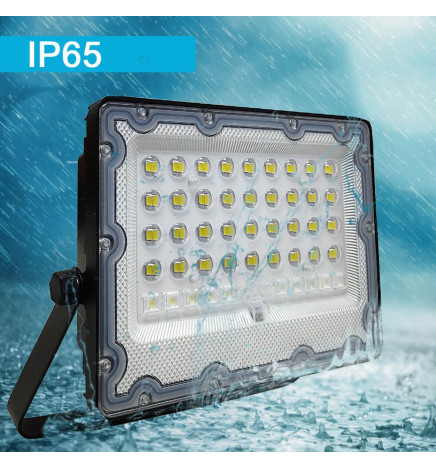

IP65-Outdoor
Diode Life Expectancy (H)
25000h
Dimensions (mm)

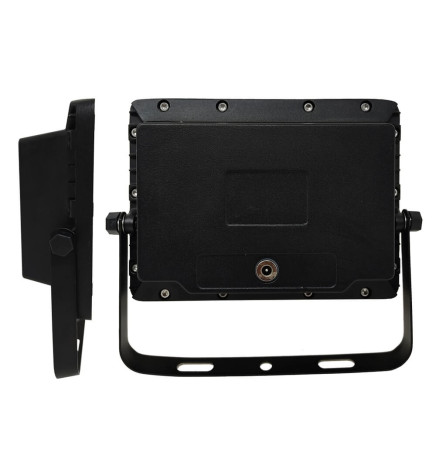

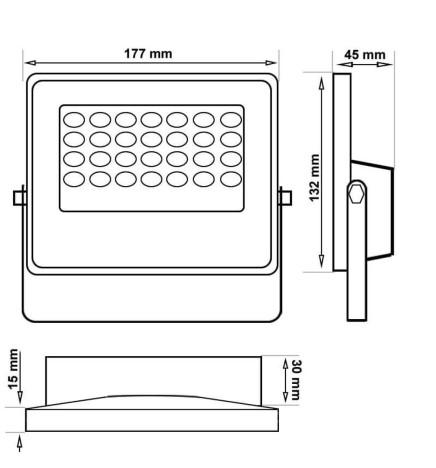

Proyector: 192x132x45mm
Temperature Range (ºC)
-20ºC ~ +45ºC
Other Information

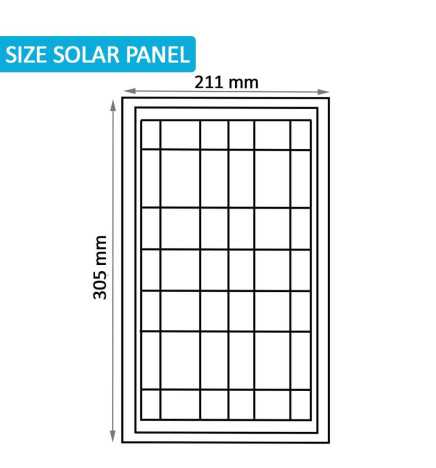

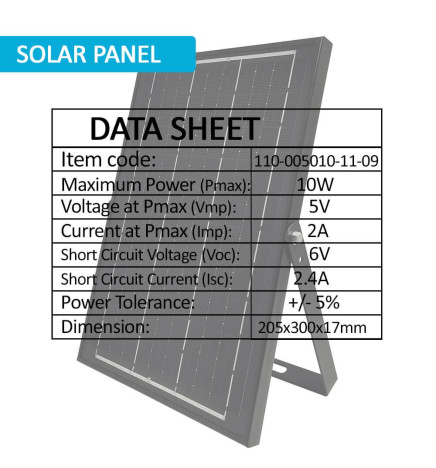

Panel 15W 5V Polycristaline: 205x300x17mm
Material of the Battery
LiFePO4 - Litio-Ferrofosfato -LPF - Battery 20A - (20000mA). Charge&Discharge: 1500 Times
Download Time
13H
Control modes
CONTROL + INFRARED
Energy Rating (2021-UE-2019/2015)
A++
Warranty Years
3
Range (m)
5 m.
