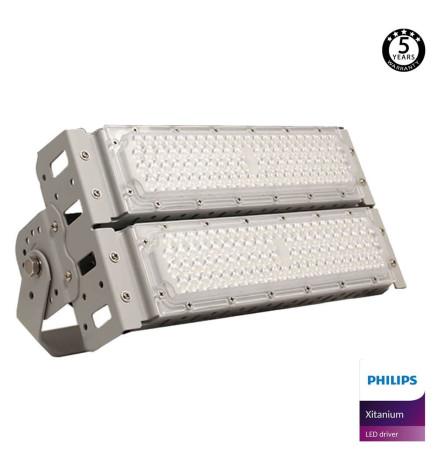

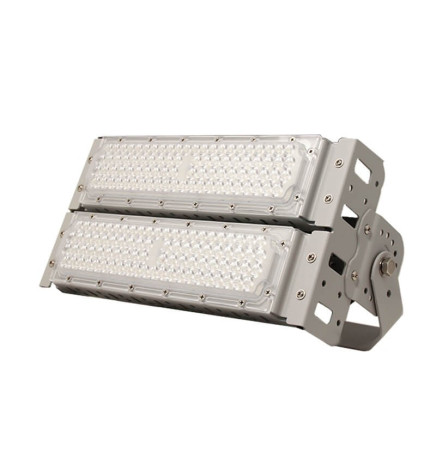

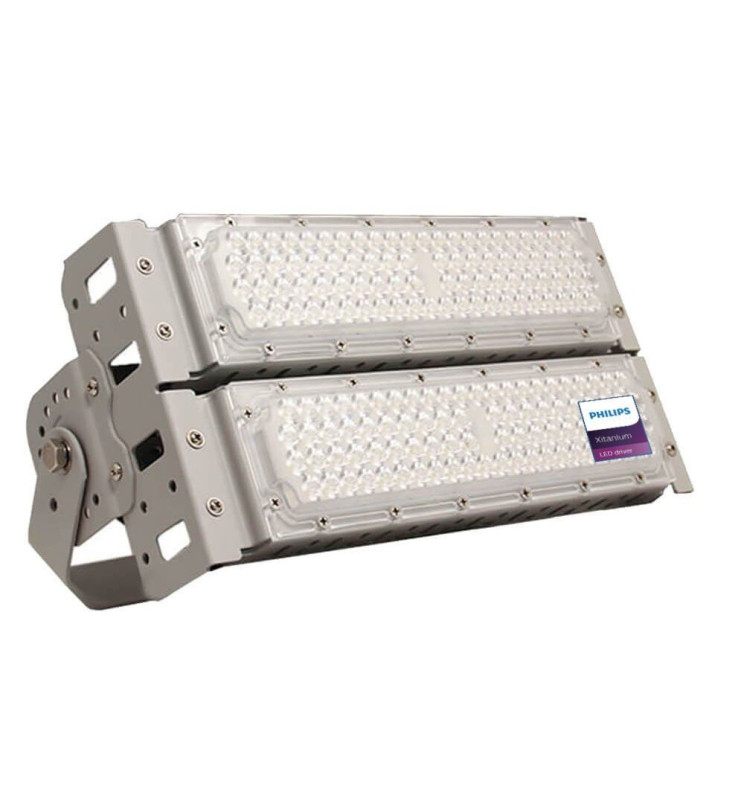

LED Spotlight 100W MAGNUM AIR 186Lm/W 60º

100W LED Floodlight MAGNUM AIR - Bridgelux Chip 180Lm/W 60º

Reference: MAGNUM100W60C2

The LED Spotlight 100W MAGNUM AIR is a mixture of high power with a compact design in 100% ALUMINIUM 6063 oven painted to prevent salt oxidation, and great LIGHTNESS to avoid placing large posts. It has a 60º ANGLE, designed to illuminate long distances. The product is supplied pre-assembled.

INSTRUCTIONS

50w
85V-265V
70
15000 Lm
60º
153 Lm/W
IP65-Outdo
50.000
305x155x80

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€87.51

No tax

Color temperature: Natural White - 4000K

Natural White - 4000K
Cold White - 5000k

Download PDF

100W LED Projector MAGNUM AIR - Chip Bridgelux 180Lm/W 60º.

The specifications of this type of 100w spotlight make it capable of effectively illuminating any type of space, the new MAGNUM AIR model stands out for its Bridgelux chip type Chip that achieves a high colour flux of a high power, provides the efficiency and reliability that any type of indoor or outdoor lighting market demands.

It is designed to obtain a great illumination creating perfect environments especially for lighting at medium distances thanks to its 60º angle, with a diode efficiency of 180Lm/w and a light output of 180Lm/w, covering all the needs of the end user.

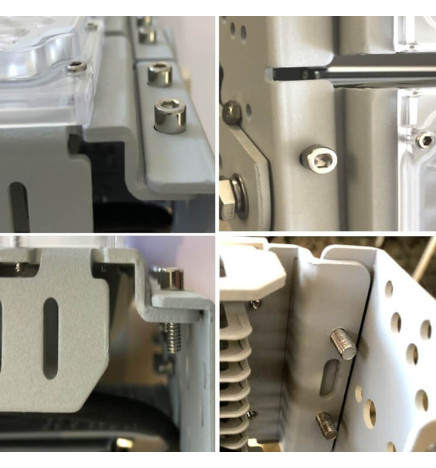

It is made of 100% Aluminium, both in its casing and its handles, making it a very light product for easy transport and installation. In addition, its paint is anti-corrosive, so it has a great duration and reduces all types of oxidation. With all its LED technology and the latest market innovations, it achieves a saving of up to 80% in energy consumption.

Applications of the LED Projector 100W MAGNUM AIR - Bridgelux Chip 180Lm/W 60º.

Gardens

Parks

Squares

Roundabouts

Museums

Paths

Galleries

Event spaces

This projector is guaranteed for 5 years.

Reference MAGNUM100W60C2

Data sheet

REFERENCE: 4815MG50W60
Rated Power: 50w
Nominal Voltage: 85V-265V
Colour: 4000K -5000K
CRI - Chromatic Rendiment Index: 70
Construction Material: Aluminium +PMMA
Luminosity-Lm: 15000 Lm
Number & Type of LEDs: SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30
Beam Angle (º): 60º
Luminous diodo LED (Lm/W): 180Lm/w
Luminous Efficiency (Lm/W): 153 Lm/W
Certifications: CE - ROHS
IP: IP65-Outdoor
Diode Life Expectancy (H): 50.000

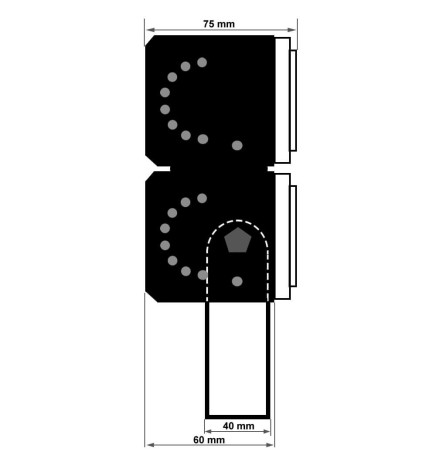

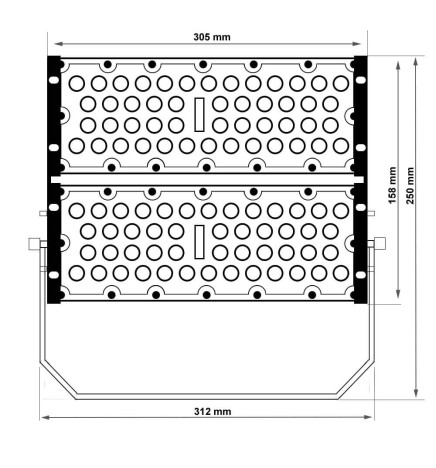

Dimensions (mm): 305x155x80mm
Power Factor (PF): 0.99
Frequency (Hz): 50/60Hz
Temperature Range (ºC): -20°C ~ +55°C
On/Off Cycles: 100.000
Starting Time (s): 0,2s
Other Information: THIS PRODUCT IS DELIVERED DISASSEMBLED
Impact Protection (IK): IK10
Driver included: PHILIPS XITANIUM 5 YEARS
Energy Rating (2021-UE-2019/2015): A++
Warranty Years: 5

Download
