Housing PAR56 Recessed for LED Swimming Pool Spotlight

Reference: POOL-8212

Recessed ABS housing for pool specially designed to accommodate one of our 36W PAR56 RGB LED Discs for pools or ponds.

Submersible RGB LED Bulb 36W PAR56 - DC12V - IP68 - Steel 316 - IMPACT RESISTANT - IK10- Pool

IP67-Outdo
178x178x11

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€42.55

No tax

Download PDF

Description
Product Details

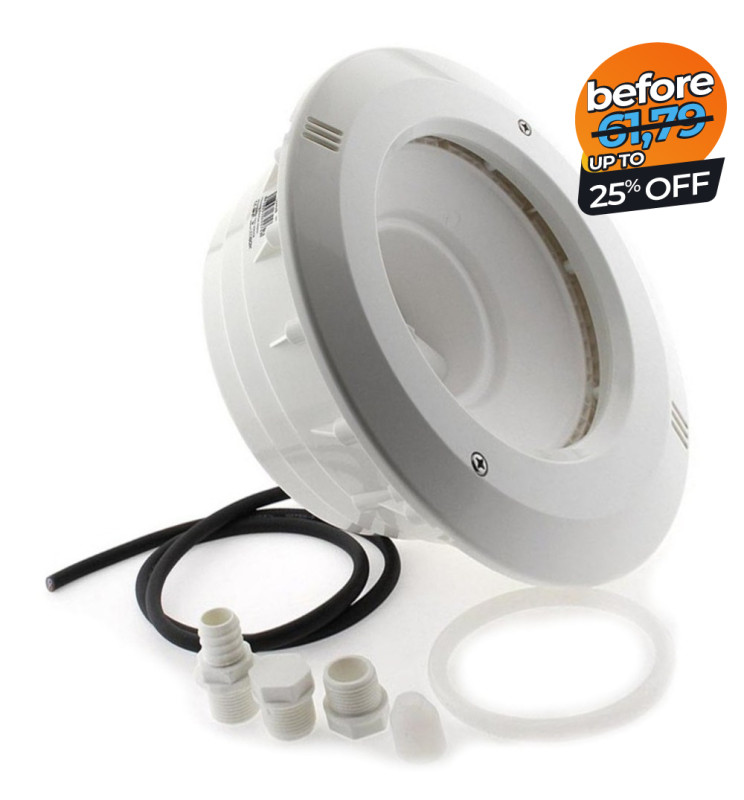

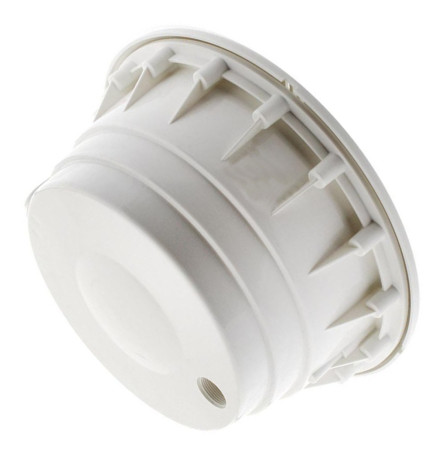

Housing PAR56 Recessed for LED Swimming Pool Spotlight

The recessed housing for swimming pool is specially designed to house a PAR56 LED lamp. It is made of high quality ABS which perfectly protects the connection terminals of the bulb and preserves its watertightness with its IP68 protection factor.

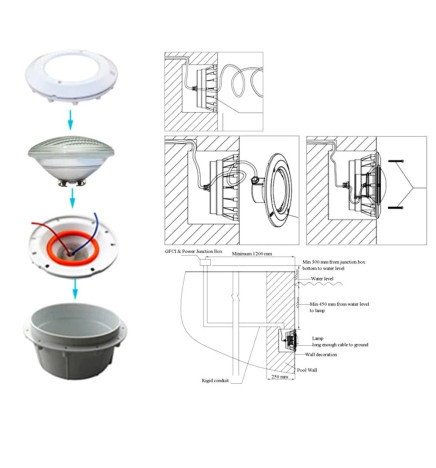

Each recessed housing for swimming pool comes with its trim, plugs and a metre of cable with polypropylene insulating sheath which is perfect for connecting the luminaire to the mains safely.

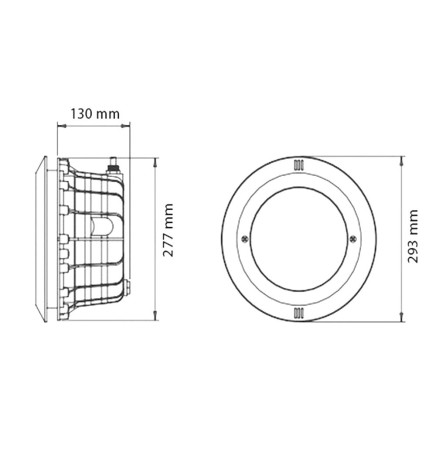

The cut-out dimensions for installation are Ø277x130mm.

*PAR56 bulb not included.

Reference POOL-8212

Data sheet

REFERENCE: 8212
Construction Material: ABS
Certifications: CE - ROHS
IP: IP67-Outdoor
Dimensions (mm): 178x178x115mm
Warranty Years: 3
