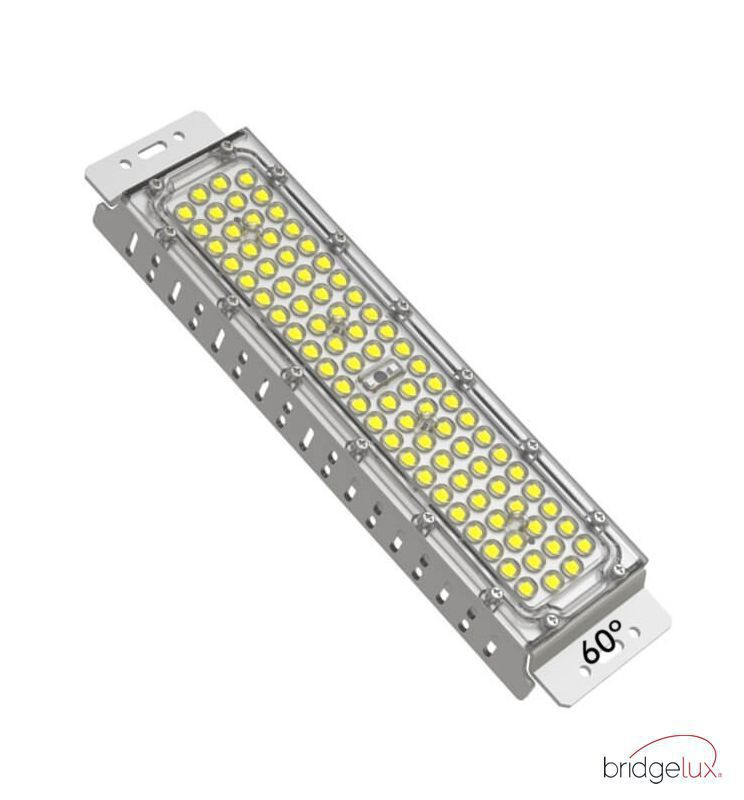

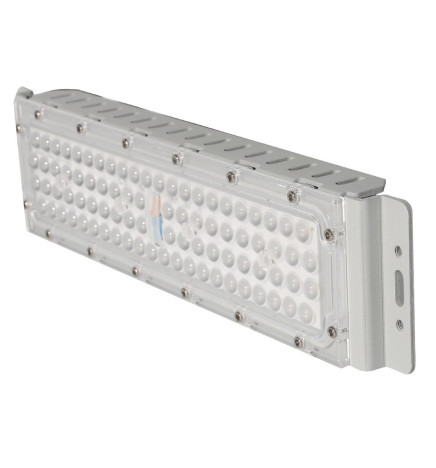

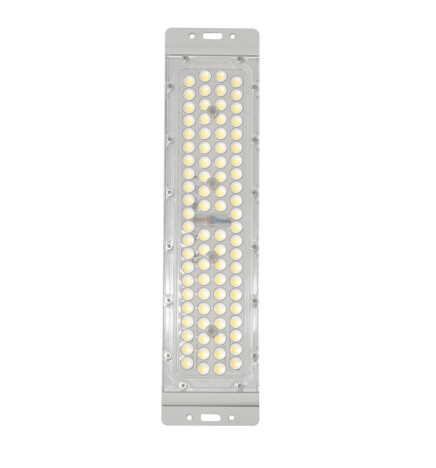

50W Module LED MAGNUM Chip Bridgelux 180Lm/W 60º

4815MG50W60C1

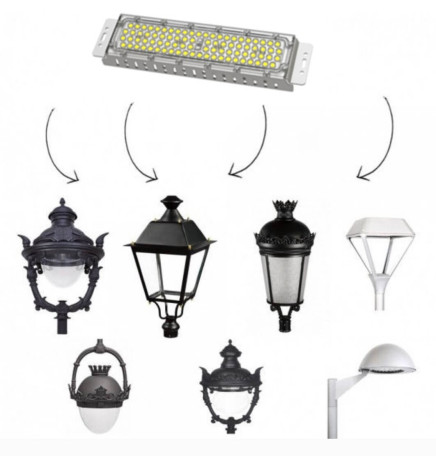

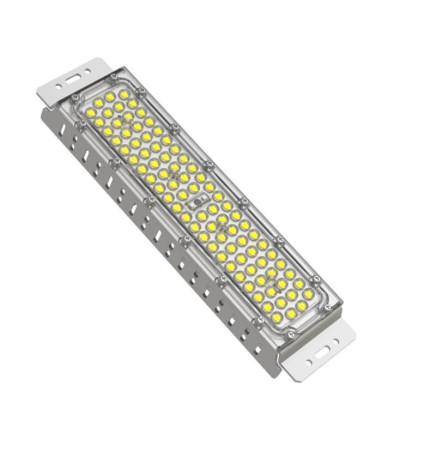

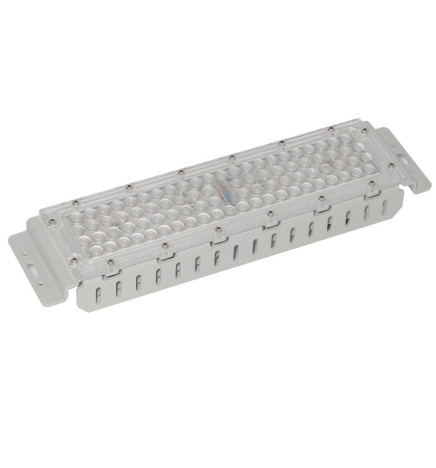

Our 50W and 60º LED Optical Module is manufactured with a team of 84 SMD 3030 3D LED diodes. This IP65 module is designed to be placed in Villas and Fernandinas streetlights. Thanks to its excellent dissipation it has a long useful life and a great energetic saving, being able to be an ecological product.

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    7500 Lm

  • Beam Angle (º)

    60º

  • Luminous Efficiency (Lm/W)

    153 Lm/W

  • IP

    IP65-Outdo

  • Diode Life Expectancy (H)

    50.000

  • Dimensions (mm)

    350mm x 75

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€33.49
No tax
Color temperature: Cold White - 5000k
  • Natural White - 4000K
  • Cold White - 5000k
There are not enough products in stock




Download PDF

50W Module LED MAGNUM Chip Bridgelux 180Lm/W 60º


This LED Module 50W serves as a replacement for old bulbs that were very polluting.

Thanks to their power they manage to generate a great illumination in the streetlamps, reaching the 7500 Lm.

The quality of its materials make it an essential product to generate a clean and long-lasting energy.

It is designed to obtain a great illumination creating perfect atmospheres especially to illuminate average distances thanks to its angle of 60º

Its IP65 protection makes it suitable for outdoor use and has a safety against splashes.

It has a 5 year warranty.

Uses of 50W Module LED MAGNUM Chip Bridgelux 180Lm/W 60º

  • Lampposts

LED Module 50W MAGNUM PHILIPS

In FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for the DISTRIBUTION, IMPORT or SALE wholesale, including the technical sheet of each LED product.

4815MG50W60C1

Data sheet

REFERENCE
MAGNUM50W
Colour
3000K-4000K-5000K
CRI - Chromatic Rendiment Index
80
Construction Material
Aluminium +PMMA
Luminosity-Lm
7500 Lm
Number & Type of LEDs
SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30

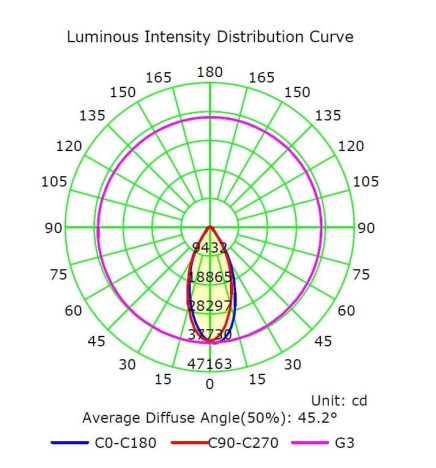

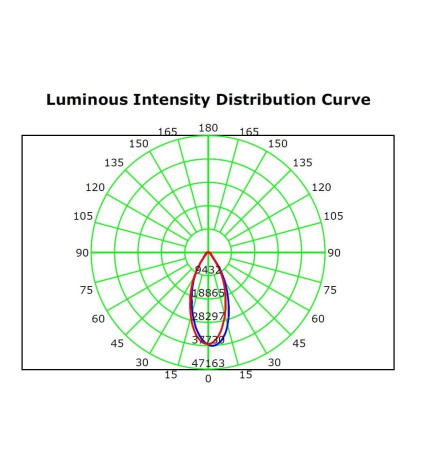

Beam Angle (º)
60º
Luminous diodo LED (Lm/W)
180Lm/W
Luminous Efficiency (Lm/W)
153 Lm/W
Certifications
CE - ROHS
IP
IP65-Outdoor
Diode Life Expectancy (H)
50.000

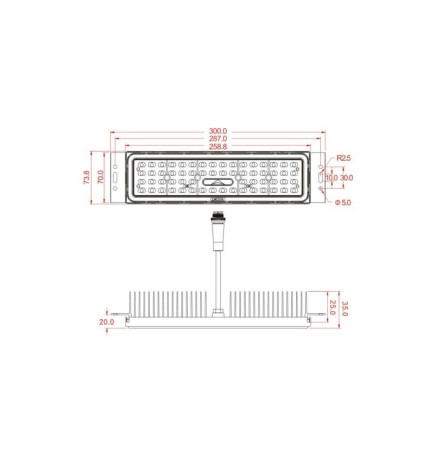

Dimensions (mm)
350mm x 75mm x 30mm
Power Factor (PF)
0,95
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-15º+70º
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
Driver: 23-42 VDC 1300mA +-5%
Impact Protection (IK)
IK10

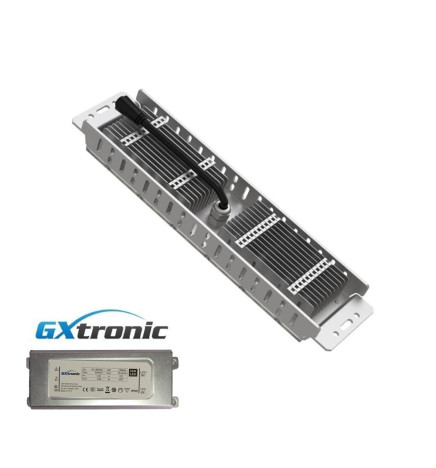

Driver included
Driver GXTronic - 5 Years
Energy Rating (2021-UE-2019/2015)
A++
Warranty Years
5
