Downlight LED 6W - 9W - 12W Luxury White - Bridgelux Chip - UGR11 - 3CCT - CRI +92

SP12W-CCT-91360

The Downlight LED Luxury White offers selectable power of 6W, 9W, and 12W, featuring a Bridgelux Chip with 130Lm/W for exceptional efficiency. Its 3CCT technology (3000K - 4000K - 5700K) allows adjusting the color temperature to match the desired ambiance. With UGR11 to minimize glare and CRI+92 for impeccable color rendering, it ensures precise and comfortable lighting.

Its 24° beam angle directs light with accuracy, while the interchangeable front ring (white or black) adapts to any decorative style. The perfect choice for elegant and functional spaces!

  • Rated Power

    12w

  • Nominal Voltage

    85V-265V

  • CRI - Chromatic Rendiment Index

    92

  • Luminosity-Lm

    1320 Lm

  • Beam Angle (º)

    24º

  • Luminous Efficiency (Lm/W)

    110 Lm/W

  • IP

    IP20

  • Diode Life Expectancy (H)

    20.000

  • Dimensions (mm)

    Ø85xH52mm

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
€10.50
No tax
Options: Front White
  • Front White
  • Front Black



Download PDF

Downlight LED 6W - 9W - 12W Luxury White - Bridgelux Chip - UGR11 - 3CCT - CRI +92

Discover excellence in lighting with the Downlight LED Luxury White, a versatile and efficient solution designed to provide maximum performance and visual comfort in any space. Thanks to advanced technology and premium features, this downlight adapts to various applications, delivering high-quality illumination.

The Downlight LED Luxury White is designed to meet the needs of every space. Its adjustable power option allows for energy optimization without sacrificing brightness. Additionally, 3CCT technology makes it easy to select the most suitable color temperature for any environment.

The interchangeable front ring allows for design customization to match different decorative styles. By default, it comes with a white ring, but selecting the Front Black option includes an additional black ring for greater flexibility.

With a cut-out diameter of 75 mm, this downlight fits most recessed installations. Its secure mounting system ensures quick and safe installation, providing a stable ceiling fixture.

Its optimized design and high-quality aluminum enhance heat dissipation, extending the LED’s lifespan and maintaining stable performance over time.

Features of LUXURY 12W LED Downlight with Selectable Light 3CCT and Bridgelux chip

  • Selectable power: 6W - 9W - 12W, allowing to adjust the intensity according to the needs of the environment.

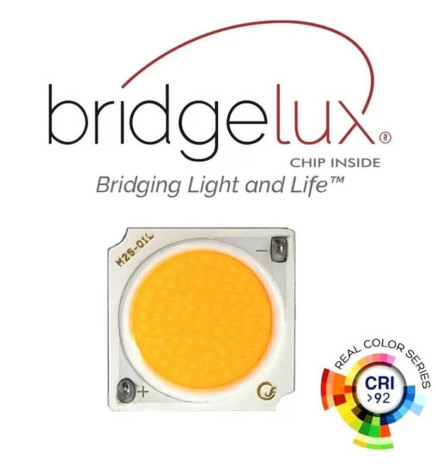

  • Bridgelux 130Lm/W chip, guaranteeing powerful lighting with high energy efficiency.
  • 3CCT (3000K - 4000K - 5700K) to choose between warm, neutral or cold light according to the desired environment.
  • 24º opening angle, ideal for focused lighting in specific areas.
  • Low glare emission (UGR11) for greater visual comfort and reduced eye fatigue.
  • High color rendering (CRI+92) for vibrant, lifelike colors.
  • Made of high quality aluminum, ensuring strength and durability.
  • Interchangeable front ring:

         - White ring included as standard.
         - Option to receive an additional black ring by selecting the Front Black option.
         - Quick and easy change without tools.

Recommended applications of LUXURY 12W LED Downlight with Selectable Light and Bridgelux chip

Thanks to its elegant design and professional lighting quality, the Downlight LED Luxury White is perfect for:

✔ Homes – Living rooms, kitchens, hallways, bedrooms, and bathrooms.
✔ Shops and retail spaces – Display lighting for windows, showcases, and exhibition areas.
✔ Offices and workspaces – Efficient and comfortable lighting for long hours.
✔ Hotels and restaurants – Creating warm and sophisticated atmospheres.
✔ Hospitals and clinics – Precise, glare-free lighting for medical environments.

Package Contents

✔ 1 Downlight LED Luxury White with a white ring.
✔ Option to receive an additional black ring by selecting "Front Black".
✔ Installation manual for quick and safe setup.

In FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for the DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

SP12W-CCT-91360

Data sheet

REFERENCE
SP12W-CCT
Rated Power
12w
Nominal Voltage
85V-265V
Colour
3CCT SELECT 3000K-4000K-5700K
CRI - Chromatic Rendiment Index
92
Construction Material
Aluminium
Luminosity-Lm
1320 Lm
Number & Type of LEDs
Bridgelux Chip inside 2235DS-C30
Beam Angle (º)
24º
Luminous diodo LED (Lm/W)
130Lm/W
Luminous Efficiency (Lm/W)
110 Lm/W
Certifications
CE, CMIM, RoHS
IP
IP20
Diode Life Expectancy (H)
20.000
Dimensions (mm)
Ø85xH52mm
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Cut-out Size (mm)
Ø 75mm
Glare Rating (UGR)
11
Driver included
YES
Energy Rating (2021-UE-2019/2015)
A+
Energy Rating (2023 - UE-2019/2015)
F
Warranty Years
3
Units per masterbox
20
