Recessed Spotlight 3CCT 6W - 9W - 12W |LUMIS| Dimmable CRI+92 UGR11
  • Recessed Spotlight 3CCT 6W - 9W - 12W |LUMIS| Dimmable CRI+92 UGR11

Downlight LED 6W - 9W - 12W - LUMIS - Bridgelux Chip - UGR11 - 3CCT - CRI +92 - Interchangeable Front

SP12WLUM-CCT-91358

Downlight LED Lumis White offers selectable power of 6W, 9W, and 12W, with a Bridgelux Chip delivering 130 Lm/W for exceptional efficiency. Its 3CCT technology (3000K - 4000K - 5700K) allows you to adjust the color temperature according to the desired ambiance. With UGR11 to minimize glare and CRI+92 for impeccable color rendering, it ensures precise and comfortable lighting. Its 24º beam angle directs light with precision, while its selectable front ring (White, White Rhombus, Matte Black, Mercury Black) adapts to any decorative style. The ideal choice for elegant and functional spaces!

  • Rated Power

    12w

  • Nominal Voltage

    85V-265V

  • CRI - Chromatic Rendiment Index

    92

  • Luminosity-Lm

    1320 Lm

  • Beam Angle (º)

    24º

  • Luminous Efficiency (Lm/W)

    110 Lm/W

  • IP

    IP20

  • Diode Life Expectancy (H)

    20.000

  • Dimensions (mm)

    Ø84x78mm

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
€12.37
No tax
Options: Front White
  • Front White
  • Front Black Matte
  • Front Black Mercury
  • Front White Rhombus



Download PDF

Downlight  LED 6W - 9W - 12W - LUMIS - Bridgelux Chip - UGR11 - 3CCT - CRI +92 - Interchangeable Front

The Downlight LED Lumis White is an innovative and efficient lighting solution, designed to provide versatility, performance, and elegance in any type of space. Its modern and functional design makes it the ideal choice for residential, commercial, and office applications, delivering high-quality lighting with reduced energy consumption.

This downlight features selectable power options of 6W, 9W, and 12W, allowing you to adjust the illumination level according to the specific needs of your space. It incorporates a Bridgelux Chip with 130 Lm/W, ensuring exceptional luminous efficiency, providing intense and uniform lighting with low energy consumption. Thanks to this technology, it offers performance equivalent to higher-wattage traditional luminaires, resulting in significant energy savings and lower heat emissions.

For seamless adaptation to different environments, the Downlight LED Lumis includes 3CCT technology, allowing selection among three color temperatures.

One of the key features of the Downlight LED Lumis is its ability to provide comfortable, glare-free lighting. With a low glare index (UGR < 11), this luminaire reduces visual fatigue and enhances the lighting experience, making it ideal for spaces where concentration and visual comfort are essential.

Additionally, its high color rendering index (CRI > 92) ensures precise and natural color representation, making it an excellent choice for shops, art galleries, offices, and any environment where color accuracy is crucial.

Elegant and Customizable Design

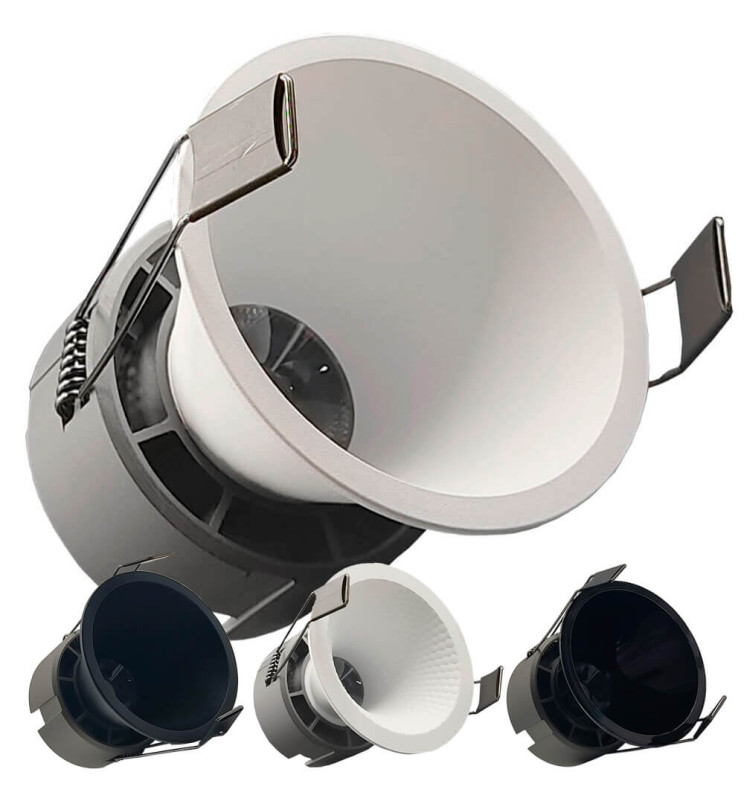

For perfect integration into any décor style, this model includes an interchangeable front ring, available in the following options:

Basic White Front (DIE-CAST RING): Made of aluminum using a die-casting process, ideal for a clean and minimalist design.
White Rhombus Front (RHOMBUS RING): Features a rhombus-textured pattern, adding a distinctive and sophisticated touch.
Matte Black Front: Perfect for modern and elegant décor, creating a subtle and attractive contrast.
Mercury Black Front: With a metallic finish that adds an exclusive and luxurious touch to any space.

The standard model includes the Basic White Front (DIE-CAST RING).
This modular and customizable system allows the downlight to adapt to different decorative styles without replacing the entire fixture.

High-Quality Materials and Durability

Made from high-quality aluminum, the Downlight LED Lumis White ensures excellent heat dissipation, extending its lifespan and maintaining optimal performance over time. Its robust structure and efficient design guarantee easy installation and long durability, reducing maintenance costs.

Recommended Applications and Uses

Thanks to its advanced features, the Downlight LED Lumis is ideal for a wide range of spaces, including:

Homes: Living rooms, bedrooms, kitchens, and hallways.
Offices and workspaces: Reception areas, meeting rooms, and workstations.
Retail stores and businesses: Boutiques, supermarkets, and shopping malls.
Hospitals and clinics: Consultation rooms, hallways, and waiting areas.
Restaurants and hotels: Dining rooms, bars, and lobbies.
Galleries and museums: Art exhibitions and cultural spaces.

In FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for the DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

SP12WLUM-CCT-91358

Data sheet

REFERENCE
SP12WLUM
Rated Power
12w
Nominal Voltage
85V-265V
Colour
3CCT SELECT 3000K-4000K-5700K
CRI - Chromatic Rendiment Index
92
Construction Material
Aluminium
Luminosity-Lm
1320 Lm
Number & Type of LEDs

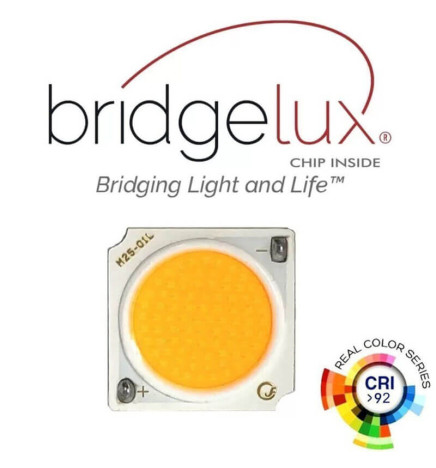

Bridgelux Chip inside 2235DS-C30
Beam Angle (º)
24º
Luminous diodo LED (Lm/W)
130Lm/W
Luminous Efficiency (Lm/W)
110 Lm/W
Certifications
CE, CMIM, RoHS
IP
IP20
Diode Life Expectancy (H)
20.000
Dimensions (mm)
Ø84x78mm
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Cut-out Size (mm)
Ø 75mm
Glare Rating (UGR)
11
Driver included
YES
Energy Rating (2021-UE-2019/2015)
A+
Energy Rating (2023 - UE-2019/2015)
F
Warranty Years
3
Units per masterbox
20
