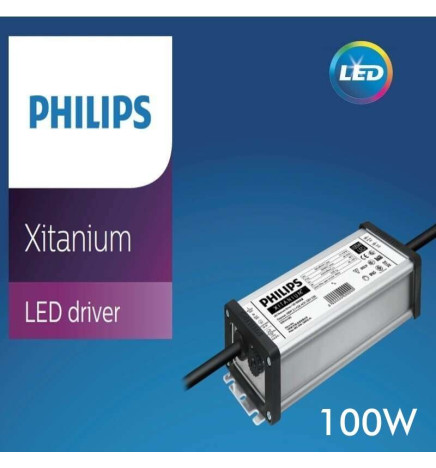

Philips XITANIUM Driver for LED up to 100W - 2100 mA - 5 years Warranty
  • Philips XITANIUM Driver for LED up to 100W - 2100 mA - 5 years Warranty
  • Philips XITANIUM Driver for LED up to 100W - 2100 mA - 5 years Warranty

Philips XITANIUM Driver for LED up to 100W - 2100 mA - 5 years Warranty

XITANIUM-100W

The Philips Xitanium Driver for 100W LED luminaires comes ready for 100,000 hours of operation. Surge protection incorporated in the same driver.

Input: AC198-264V Output DC48-13V

Iout: 2.1-4.2Adc (Amps DC)

  • Rated Power

    100w

  • Nominal Voltage

    170V-270V

  • IP

    IP65-Outdo

  • Dimensions (mm)

    200*65*h45

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
€51.22
No tax



Download PDF

Philips XITANIUM Driver for LED Luminaires up to 100W - 2100mA - 5 years Warranty

The Philips Diver Xitanium is specifically designed for maximum reliability and flexibility in low-voltage outdoor applications.

Equipped with a surge protector, these Divers are very durable with a life span of 100,000 hours providing a consistently high performance to the luminaires even after multiple indirect lightning strikes (special protection for outdoor use).

Benefits:

- The low voltage/high current output is adapted to the application of the luminaire
of LED chains connected in parallel.

- The IP65 housing can be placed directly outside.

- Fast solution without redesigning the luminaires (perfect for tunnel lighting applications).

- AOC (adjustable output current) gives total flexibility to output different currents to specification in different projects.


- Easy adjustment of output current/voltage only by means of a simple screwdriver


- Robust specifications for humidity, vibration and extreme temperature protection.


- High quality of light during the life cycle of the driver.

Applications of Philips XITANIUM Driver for LED Luminaires up to 100W - 2100mA - 5 years Warranty

- Public and road lighting.
- Lighting of large areas.
- Tunnel lighting.
- High altitude lighting.

XITANIUM-100W

Data sheet

REFERENCE
XITANIUM-100W
Rated Power
100w
Nominal Voltage
170V-270V
Construction Material
Aluminium
Certifications
CE - ENEC 05 - CCC - RoHS
IP
IP65-Outdoor
Dimensions (mm)
200*65*h45mm
Power Factor (PF)
0.95
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-40ºC +55ºC
Other Information
Outside: DC24-50V --- 1.3 - 3.4Adc
Warranty Years
PHILIPS XITANIUM 5 YEARS
