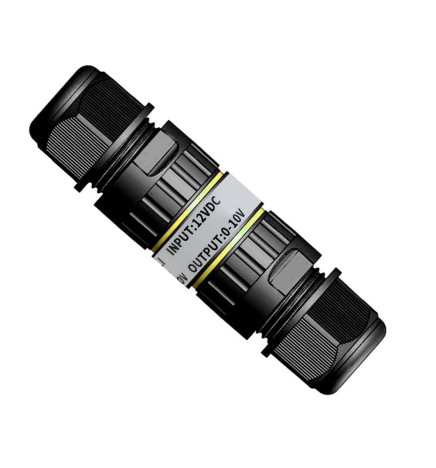

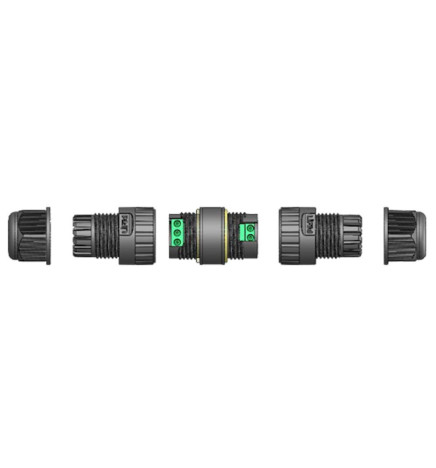

Converter 1-10V signal to DALI for LED lighting
LF-SCD010B
Our model LF-SCD010B is an isolated signal converter, which transforms the DALI / push signal into a 0-10V output. It conforms to the DALI protocol IEC 62386-101, 102, 103, 207. Its input voltage ranges from 11Vdc to 13Vdc. One converter can drive up to ten 0-10V LED drivers with a strong 0-10V output signal. It flexibly adapts to many different DALI lighting system designs.
-
IP67-Outdo
-
111 x 30 x
Fast and secure delivery
We offer professional prices for LED lighting
€21.28
No tax

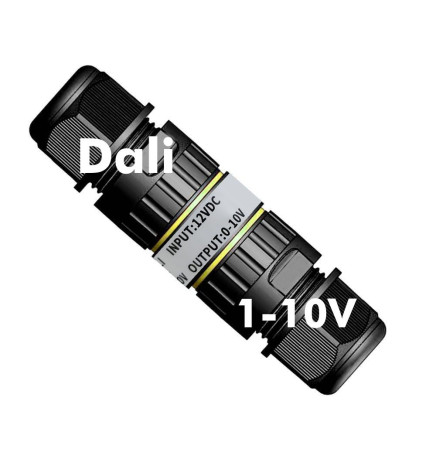

1-10V to DALI signal converter - Model LF-SCD010B
Is an isolated signal converter, which transforms the DALI / Push signal into a 0-10V output.
It conforms to the DALI protocol IEC 62386-101, 102, 103, 207.
Its input voltage ranges from 11Vdc to 13Vdc.
With a single converter it can drive up to ten 0-10V LED drivers with a strong 0-10V output signal. Flexibly adapts to many different DALI lighting system designs.
- 0-10V dimming signal output; compatible with 0-10V dimming driver; high performance, high reliability.
- 0-10V output signal can control a maximum of ten 0-10V LED drivers and achieve synchronised dimming
- Dimming range from 10% to 100% (dimmed to off)
- DALI dimming and push function; logarithmic dimming mode and linear dimming mode can be selected via the DALI interface

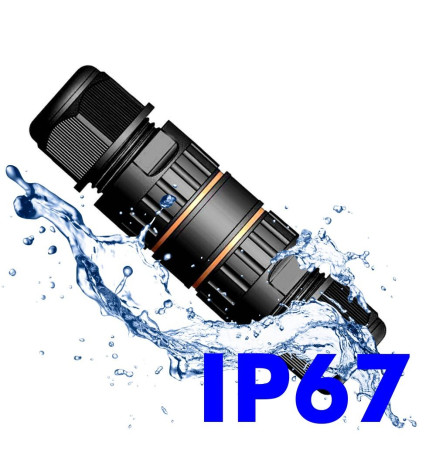

- IP67 rating; waterproof housing
- Warranty: 5 years
Uses of the 1-10V to DALI signal converter
- Plant lighting
- Interior office lighting
- Decorative lighting
- Commercial lighting
- Residential lighting

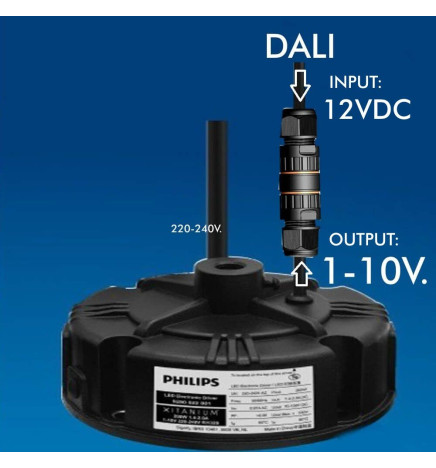

Wiring diagram of push-in regulation
DALI dimming wiring diagram
The DALI dimming function and the pulsed dimming function may not be used at the same time, otherwise the DALI dimmer will be damaged.
LF-SCD010B
Data sheet
- LF-SCD010B
- 1-10V to DALI
- CE - RoHS 2.0 (UE) 2015/863 - EN55015
- IP67-Outdoor
- 111 x 30 x Ø30mm
- -30ºC - +60ºC
- Normas DALI: IEC 62386-101, 102, 103, 207
- 5
REFERENCE
Dimmable
Certifications
Temperature Range (ºC)
Other Information
Warranty Years
Our model LF-SCD010B is an isolated signal converter, which transforms the DALI / push signal into a 0-10V output. It conforms to the DALI protocol IEC 62386-101, 102, 103, 207. Its input voltage ranges from 11Vdc to 13Vdc. One converter can drive up to ten 0-10V LED drivers with a strong 0-10V output signal. It flexibly adapts to many different DALI lighting system designs.
