- On sale!

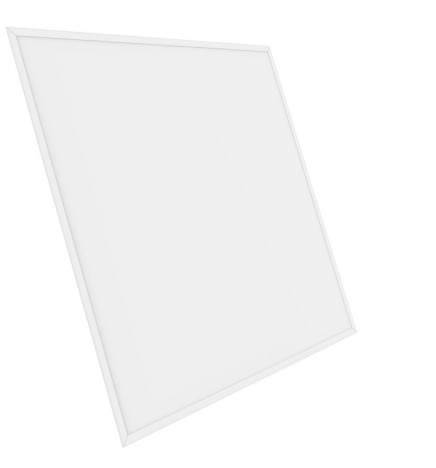

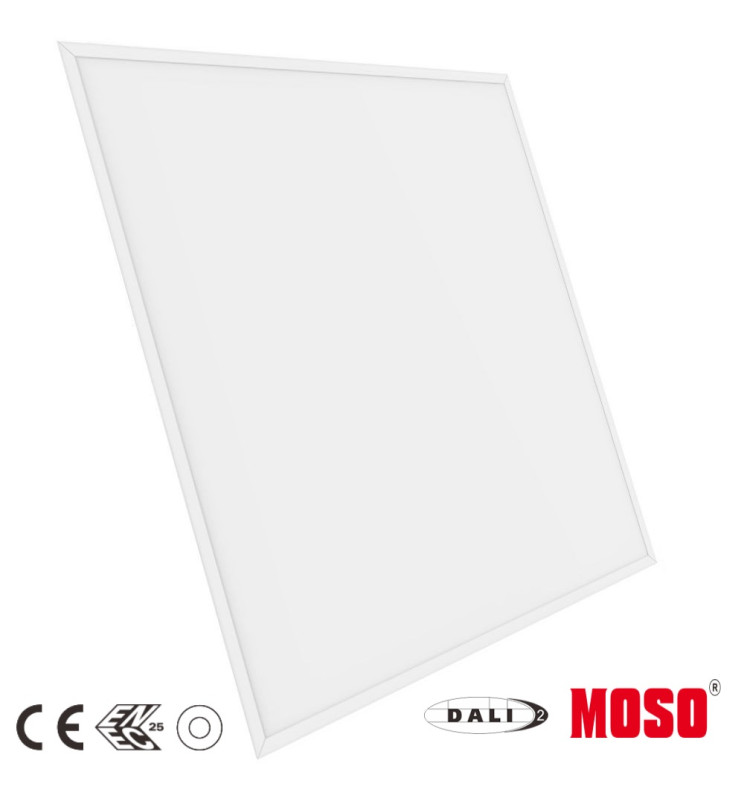

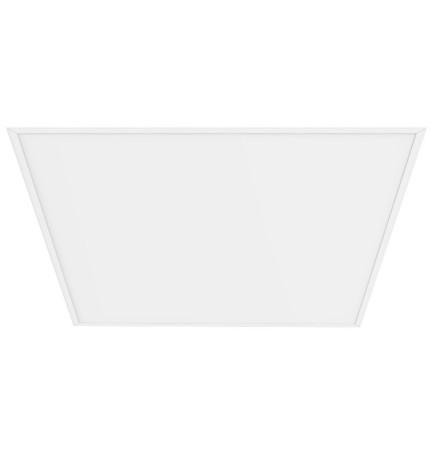

PACK 10 LED Panel 60x60 40W - Dimmable and Programmable DALI-2 - MOSO U5 Series Driver
DALI2-PNPHL40W-10-4K
The PACK of 10 LED Panels 60x60 - Dimmable and Programmable DALI-2 with MOSO U5 Driver 80W combines efficiency, innovative design, and advanced control. With 40W of power and backlight technology, it allows customization of lighting based on customer needs: power regulation (DALI-2), time-based programming (TimingDIM), or a combination of both (TIMING-DALI-2). The MOSO Driver, a global leader, ensures high quality and versatility with ENEC25, CE, ROSH, and CLASS I/II certifications. Programming via cable or NFC optimizes energy consumption. The customer must specify the desired regulation type at the time of purchase.
This product is sold in full boxes of 10 units. 1 box = 10 LED panels.
-
40w
-
220-265v
-
80
-
4800
-
120º
-
120 Lm/W
-
Front: IP
-
595x595mmH
Fast and secure delivery
We offer professional prices for LED lighting
€537.93
No tax
PACK 10 LED Panel 60x60 40W - Dimmable and Programmable DALI-2 - MOSO U5 Series Driver
The PACK of 10 LED Panels 60x60 with MOSO U5 Driver (80W) offers an advanced lighting solution that combines efficiency, innovative design, and customization. Each 40W panel, featuring backlight technology, provides uniform and adaptive illumination for residential or professional settings.
Available types of dimming of the 60x60 LED Panel 60x60:
- DALI-2 (Power Regulation from 6W - 40W): Adjust brightness to meet spatial needs, optimizing energy use and creating specific ambiances.
- TimingDIM (Time-Based Programming): Automatic on/off scheduling, perfect for businesses with defined operating hours.
- TIMING-DALI-2 (Power + Timing Combination): Integrates DALI-2 flexibility with scheduled programming for maximum efficiency.
Configuration Instructions:
Customers must specify the desired regulation type during purchase. Email:
- comercial@factorled.com
- tecnico@factorled.com
Include your order number in the subject line and describe the required configuration for pre-shipment programming.
Note: A compatible DALI-2 physical regulator is required for DALI-2 control.
Certifications and Technical Benefits:
- MOSO Driver: Globally recognized for durability and advanced technology.
- Certifications: ENEC25, CE, ROSH, CLASS I/II.
- NFC or Wired Programming: Ensures efficient configuration customization.
Professional Applications:
- Offices & Commercial Spaces: Efficient lighting to lower operational costs.
- Hospitals & Schools: Uniform, configurable lighting for visual comfort.
- Stores & Showrooms: Adjustable brightness to highlight products.
- Industries & Warehouses: Reliable, adaptable lighting for demanding environments.
- Hotels & Restaurants: Dynamic and cozy ambiances tailored to needs.
The product is sold in full boxes containing 10 units. 1 box = 10 LED panels.
In FactorLED we ensure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.
DALI2-PNPHL40W-10-4K
Data sheet
- DALI-PNPHL40W-PACK10
- 40w
- 220-265v
- 4000K-5700K
- 80
- Steel +PC
- 4800

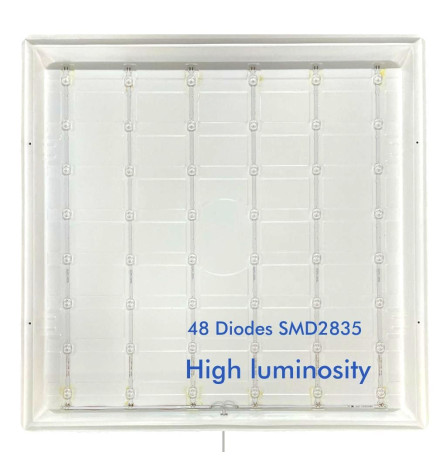

- SMD 2835
- 120º
- 140 Lm/W
- 120 Lm/W
- Dimmable DALI-2
- CE-RoSH-TÜV-ENEC
- Front: IP40 - Driver: IP20
- 595x595mmH30mm
- 0,94
- 50/60Hz
- -20°C ~ +55°C
- 100.000
- 0,2s
- IK05
- Philips Driver + MOSO U5 Series Driver Dim & Prog.
- A+
- E
- 5
REFERENCE
Colour
Construction Material
Number & Type of LEDs
Luminous diodo LED (Lm/W)
Dimmable
Certifications
Power Factor (PF)
Frequency (Hz)
Temperature Range (ºC)
On/Off Cycles
Starting Time (s)
Impact Protection (IK)
Driver included
Energy Rating (2021-UE-2019/2015)
Energy Rating (2023 - UE-2019/2015)
