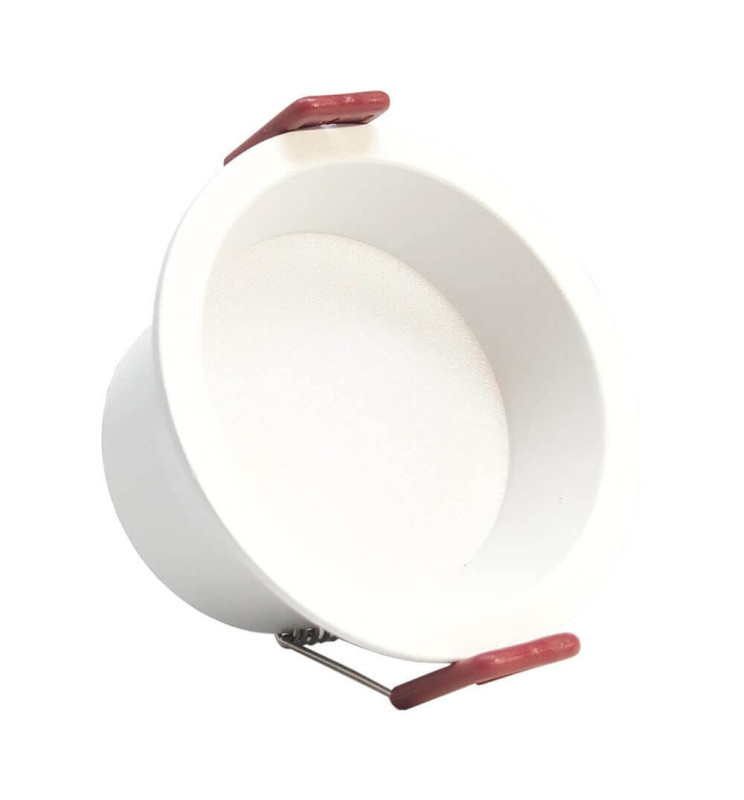

12W LED Downlight Round - OSRAM CHIP DURIS E 2835 - CCT - UGR17

90540

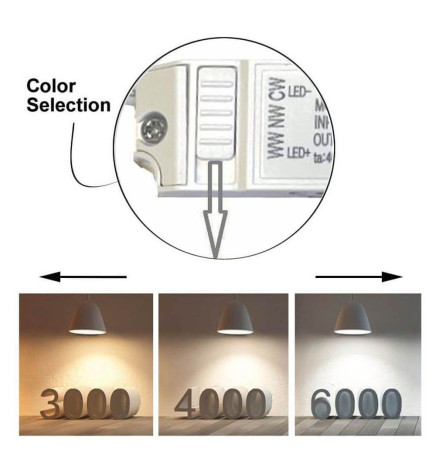

SELECTABLE COLOR: Our 12W LED circular Downlight OSRAM CHIP DURIS E 2835 has a color temperature selector, choosing between cold white, neutral white and warm white.

The opening angle of the luminaire is 120º. Start saving now on your electric bill!

  • Rated Power

    12w

  • Nominal Voltage

    85-265V

  • CRI - Chromatic Rendiment Index

    82

  • Luminosity-Lm

    1320

  • Beam Angle (º)

    120º

  • Luminous Efficiency (Lm/W)

    110Lm/W

  • IP

    Front: IP5

  • Diode Life Expectancy (H)

    30.000

  • Dimensions (mm)

    Ø105mm * H

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€9.83
No tax



Download PDF

12W LED Downlight Round - OSRAM CHIP DURIS E 2835 - CCT - UGR17

Our circular Downlingt with 12W power is characterized by its simple operation getting precise and personalized lighting in any interior space. With this type of Led luminaire you can get a light tailored for all types of business.

In addition, with its high UGR, you won't have any problems with glare, as it has a UGR17.

Thanks to its color selection system you can adapt it to the needs of your business or your home, being able to choose the desired color for each room or room.

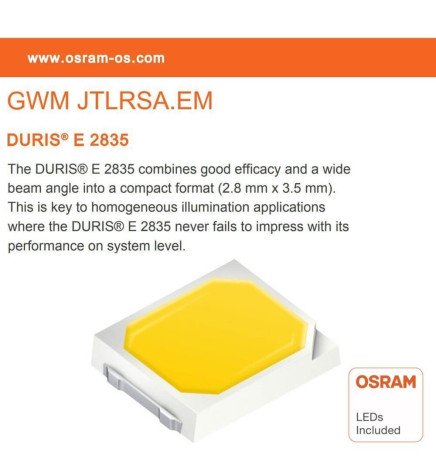

The high-efficiency light source with OSRAM chip SMD2835 technology delivers high luminosity, which will perfectly replace traditional spotlights providing savings of over 80%.

With its functional delayed design, its installation is much simpler. Its high color rendering index greater than 82 guarantees a reproduction of colors naturally.

Uses of the 12W LED Downlight Round - OSRAM CHIP DURIS E 2835 - CCT - UGR17

  •      Stores
  •      Restaurants
  •      Museums
  •      Commercial galleries
  •      Malls
  •      Offices
  •      Hallways
  •      Showcase


In FactorLED we ensure that our products are guaranteed by QUALITY and offer all the necessary elements for the DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

90540

Data sheet

REFERENCE
90540
Rated Power
12w
Nominal Voltage
85-265V
Colour
SELECTABLE COLOUR: 3000K-4000K-6000K
CRI - Chromatic Rendiment Index
82
Construction Material
Aluminiun+PC
Luminosity-Lm
1320
Number & Type of LEDs
SMD 2835 OSRAM CHIP
Beam Angle (º)
120º
Luminous diodo LED (Lm/W)
140 Lm/W
Luminous Efficiency (Lm/W)
110Lm/W
Certifications
CE - ROHS
IP
Front: IP54 - Driver IP20
Diode Life Expectancy (H)
30.000
Dimensions (mm)
Ø105mm * H55mm
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Cut-out Size (mm)
Ø 90mm
Glare Rating (UGR)
17
Driver included
YES
Energy Rating (2021-UE-2019/2015)
A+
Energy Rating (2023 - UE-2019/2015)
F
Warranty Years
3
