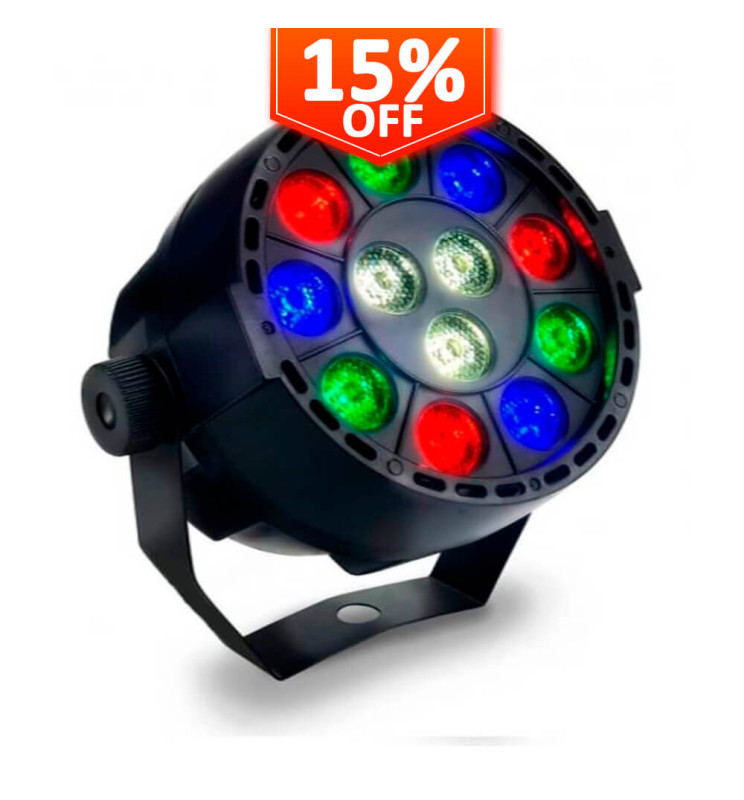

36W LED Mini PAR Spotlight MONTANA RGB + White - DMX

Reference: 7913

LED luminaire only 12cm diameter for shows that can operate manually, automatically or by DMX synchronized with music, and turn any room into a dance floor. The PAR Spotlight uses 12 ultra-bright 3W diodes with LED technology with 36w power.

36w
85V-265V
20º
IP20
50.000
150mm x 16

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€25.85

No tax

Download PDF

Description
Product Details

36W LED Mini PAR Spotlight MONTANA RGB + White - DMX

Thanks to its integrated microphone, it can work synchronized with the music, and turn any room into a dance floor.

For the more professional, the 36w LED PAR Spotlight has a DMX connection to be controlled from a controller, or synchronized with other devices. And with its robust construction, you are assured many hours of operation.

Features:

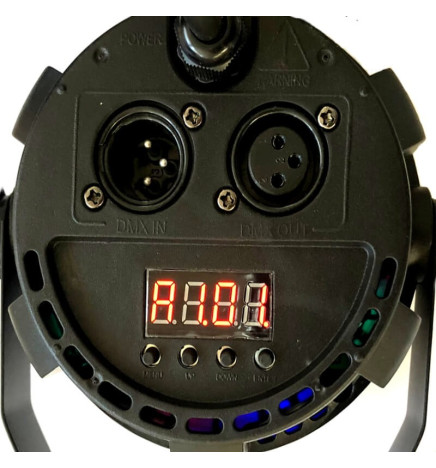

Configuration: by control panel with LED display
DMX: 6 channels Manual / automatic / slave
Rhythm of music
36W LED Configuration: 12x3 W (3 red, 3 green, 3 blue and 3 white)
Opening: 20°.
Custom color settings from the display

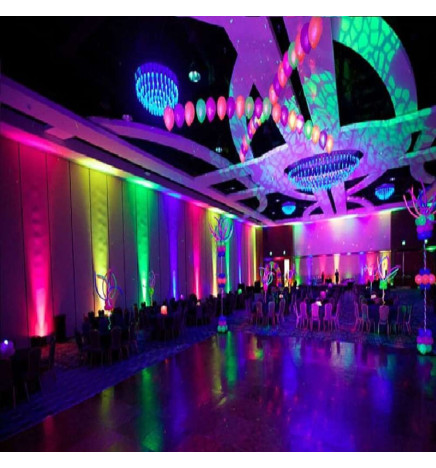

Applications of the 36W LED Mini PAR Spotlight MONTANA RGB + White

Discotheques
Fairs
Pubs
Ballrooms
Scenarios
Events

LED PAR Spotlight

Mini Par Montana 36w RGB, provides the best effect in lighting with different colors for different types of events.

At FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

Reference 7913

Data sheet

REFERENCE: 7913
Rated Power: 36w
Nominal Voltage: 85V-265V
Colour: RGB
Construction Material: Aluminiun+PC
Number & Type of LEDs: 12X3W LED (3 RED -3 GREN -3 BLUE-3 WHITE)
Beam Angle (º): 20º
Certifications: CE - ROHS
IP: IP20
Diode Life Expectancy (H): 50.000

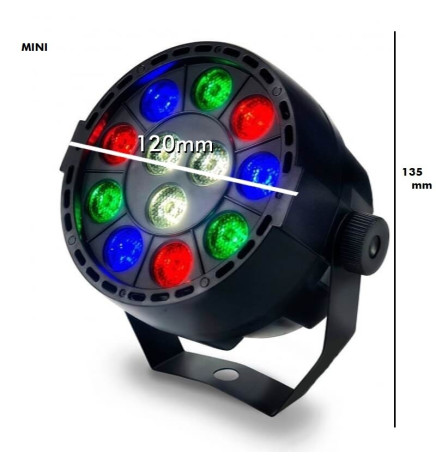

Dimensions (mm): 150mm x 160mm x 120 mm
Frequency (Hz): 50/60Hz
Temperature Range (ºC): -20°C ~ +55°C
On/Off Cycles: 100.000
Starting Time (s): 0,2s
Control modes: DMX
Energy Rating (2021-UE-2019/2015): A+
Warranty Years: 2
